Section 06 ELECTRICAL
Subsection 03 (TESTING PROCEDURE)
MMR2000_129_06_03A.FM 06-03-3
5. LAMP COIL TESTING
NOTE: Lamp coil is parallel 2 coils type.
Bring multimeter selector switch to Ω position.
Connect first multimeter probe to pink wire then
second probe to lamp coil iron core, as shown in
the next photo.

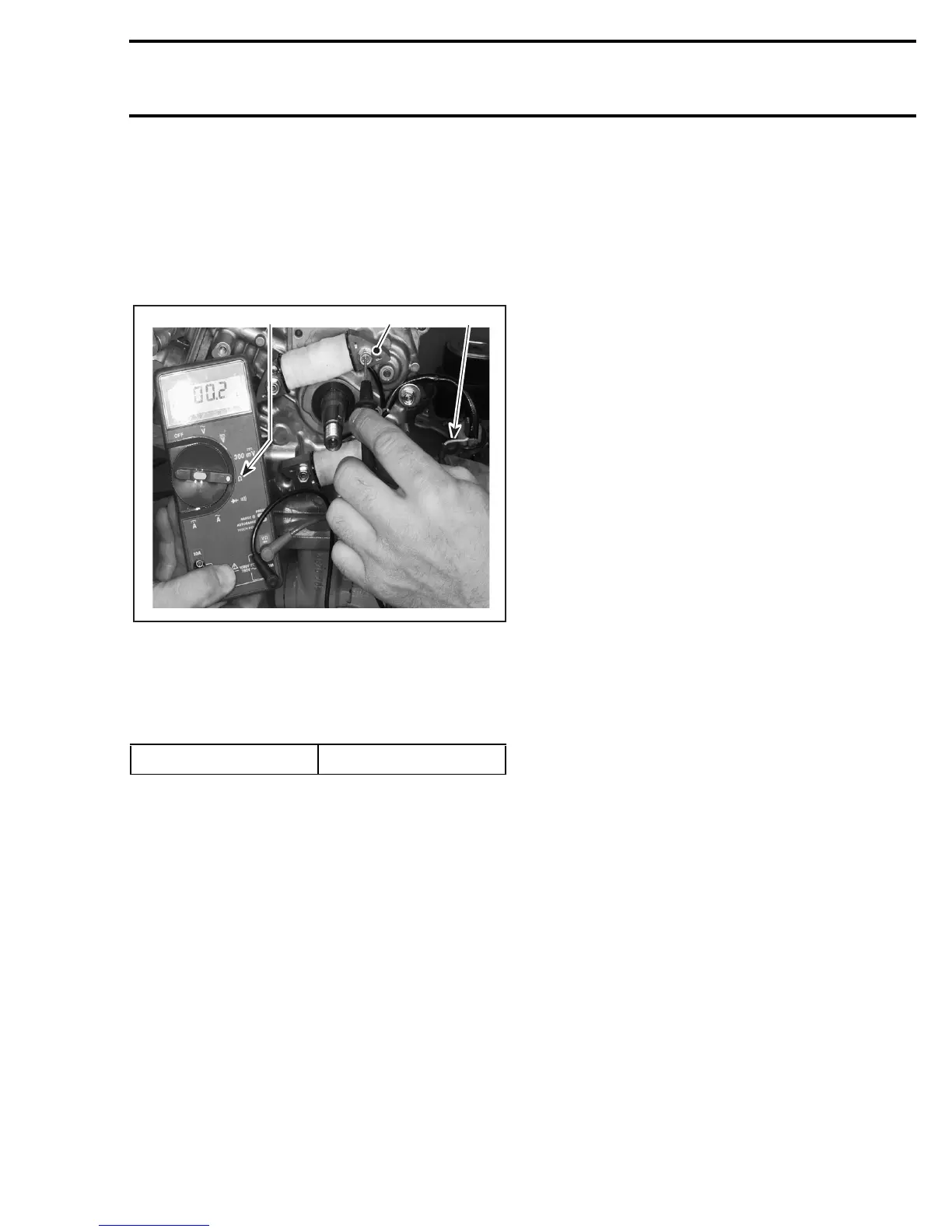

LAMP COIL TESTING
1. Multimeter to
Ω
position
2. Pink wire
3. Lamp coil iron core
The measured resistance should be according to
the following table. If not, replace lamp coil.
RESISTANCE 0.18 - 0.23 Ω
2
1
3
A31E0IA
