Section 07 REAR SUSPENSION
Subsection 02 (REAR SUSPENSION)
MMR2000_130_07_02A.FM 07-02-3

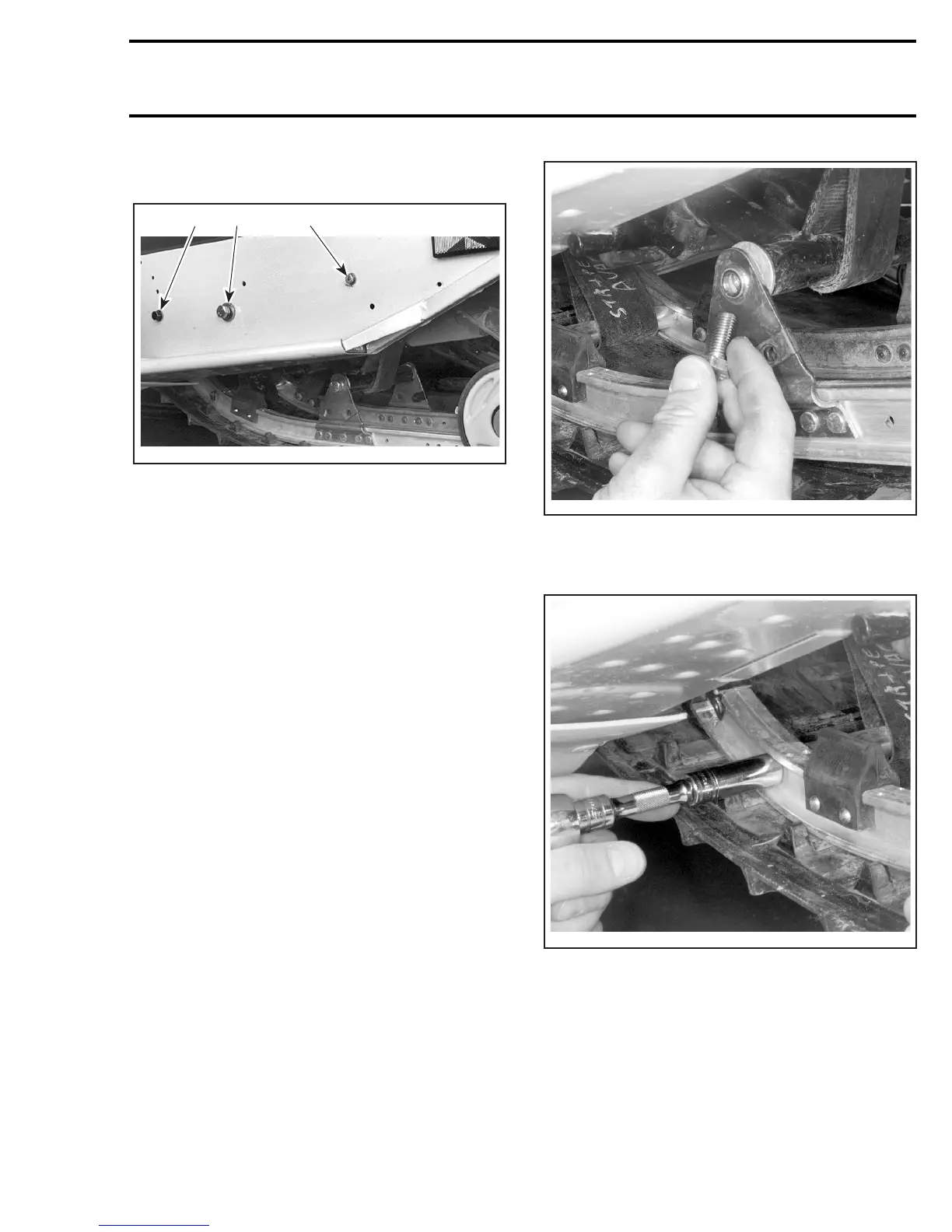

Unscrew front retainer axle no. 6 (retaining front
strap) from tunnel. See the following photo.
1. Upper idler wheel screw
2. Front arm screw
3. Front retainer axle screw
Lift rear of snowmobile.
Pull out suspension ass‘y.
DISASSEMBLY AND ASSEMBLY
Inspect track thoroughly before reinstalling sus-
pension. Refer to TRACK 07-04.
7, Runner
NOTE: Runner no. 7 can be removed without re-
moving suspension assembly, as described in the
following procedure.
Lift rear of snowmobile.
Completely release track tension.
Remove rear axle no. 1 with idler wheels.
Remove screws no. 8 retaining runner support
no. 9 to front arm no. 10, as shown in the follow-
ing photo.
REMOVE SCREW
Remove front axle screw no. 11, as shown in the
following photo.
REMOVE SCREW
A31F08A
123
A31F09A
A31F0AA
