Section 07 REAR SUSPENSION
Subsection 02 (REAR SUSPENSION)
07-02-4 MMR2000_130_07_02A.FM

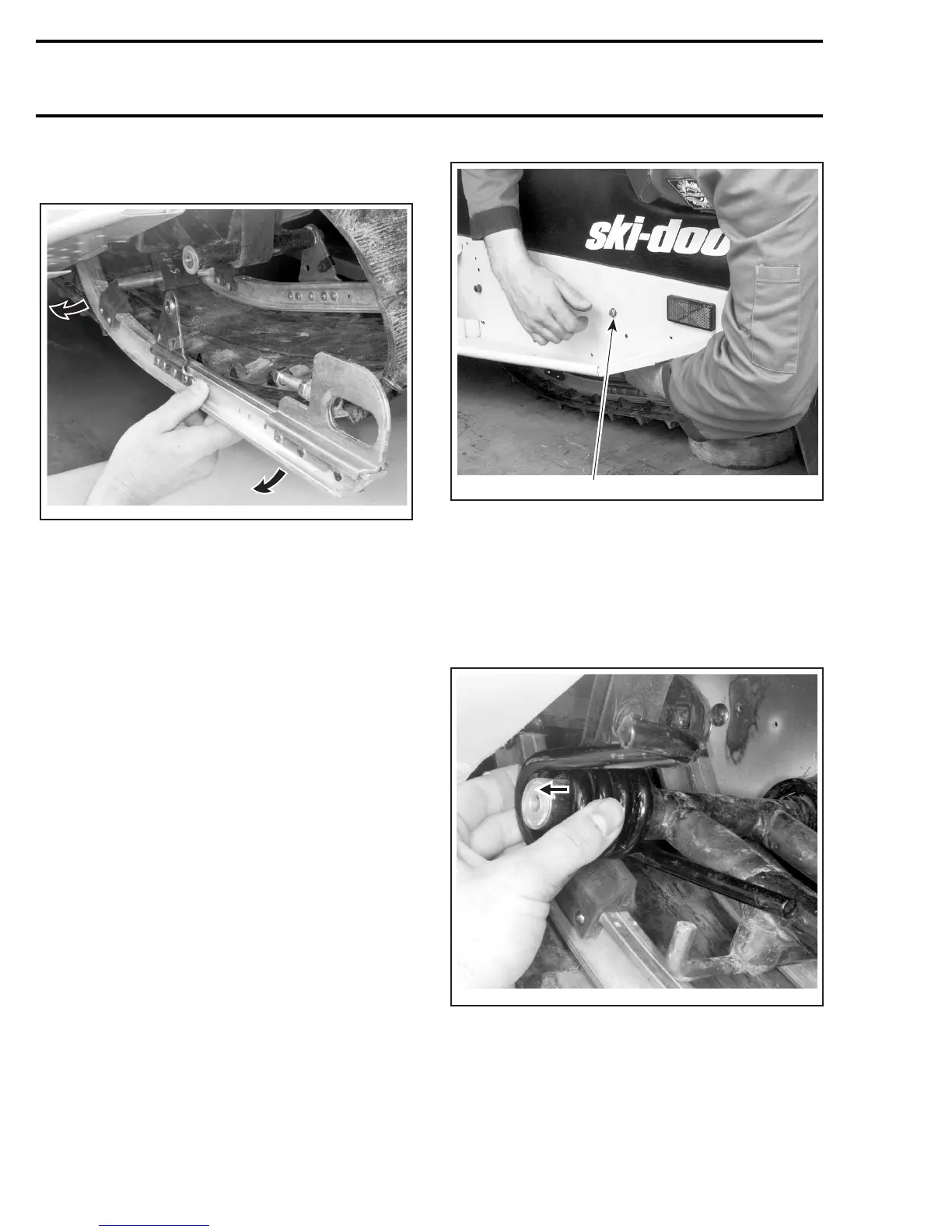

Pull out runner from track, as shown in the next
photo.
PULL OUT RUNNER
To reinstall runner, reverse removal procedure.
12, Torsion Spring
NOTE: Torsion springs can be replaced without
completely removing rear suspension ass‘y, as de-
scribed in the following procedure.
Lift rear of snowmobile.
Completely release track tension.
Remove rear axle no. 1 with idler wheels.
Lower snowmobile.
Lean on snowmobile seat then unscrew upper
idler wheel axle no. 4 from tunnel.
1. Unscrew upper idler wheel axle
Remove both screws no. 5 retaining front arm to
tunnel.
Lift rear of snowmobile so that rear suspension
ass‘y comes out of tunnel.
Remove torsion spring no. 12, as shown in the
next photo.
REMOVE TORSION SPRING
A31F0BA
1
A31F07A
A31F0CA
