Section 05 TRANSMISSION
Subsection 03 (BRAKE)
05-03-2 MMR2000_126_05_03A.FM
REMOVAL
2, Brake Pad Removal

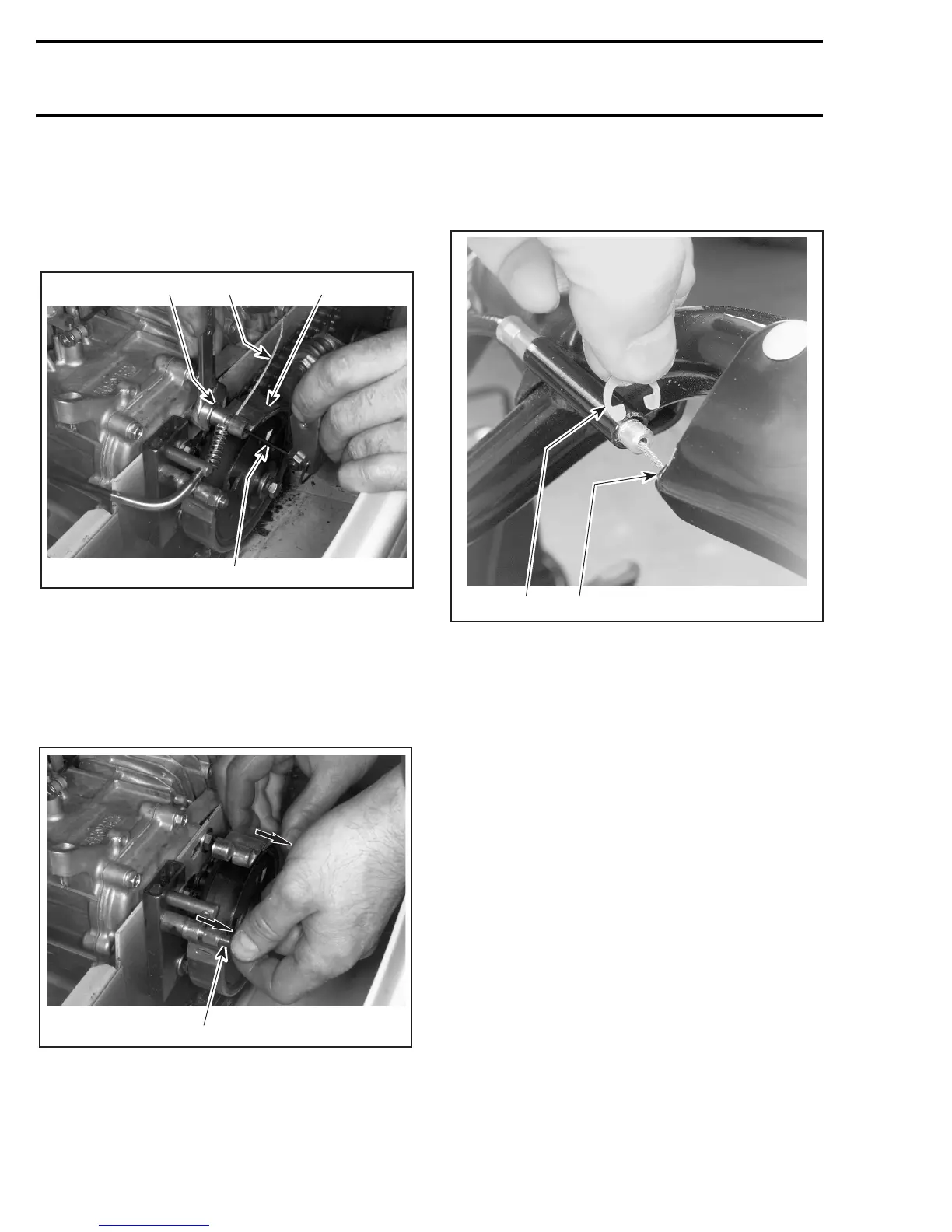

Using Allen key, unlock brake cable no. 1 from ca-
ble lock no. 4, as shown in the next photo.
UNLOCK BRAKE CABLE FROM BRAKE PAD
1. Brake pad
2. Brake cable
3. Unlock brake cable using Allen key
4. Hold screw head
Pull out brake cable from cable lock.
Remove elastic nut no. 3 from pivot screw, then
pull out brake pad no. 2.
REMOVE BRAKE PAD
1. Pivot screw
Brake Cable Replacement
Remove circlip no. 5 from brake cable at brake le-
ver location, as shown in the next photo.
1. Circlip
2. Detach brake cable from brake lever
Detach brake cable from brake lever.
Remove cable and replace with new one.
DISASSEMBLY
Only brake pad no. 2 is available as spare part. If
clutch cover braking surface is damaged or worn,
replace clutch ass‘y no. 6.
CLEANING
Clean all metal components in a general purpose
solvent. Thoroughly dry all components before as-
sembling.
CAUTION: Do not clean brake pad in solvent.
Soiled brake pad must be replaced by new one.
