Section 05 TRANSMISSION
Subsection 03 (BRAKE)
MMR2000_126_05_03A.FM 05-03-3

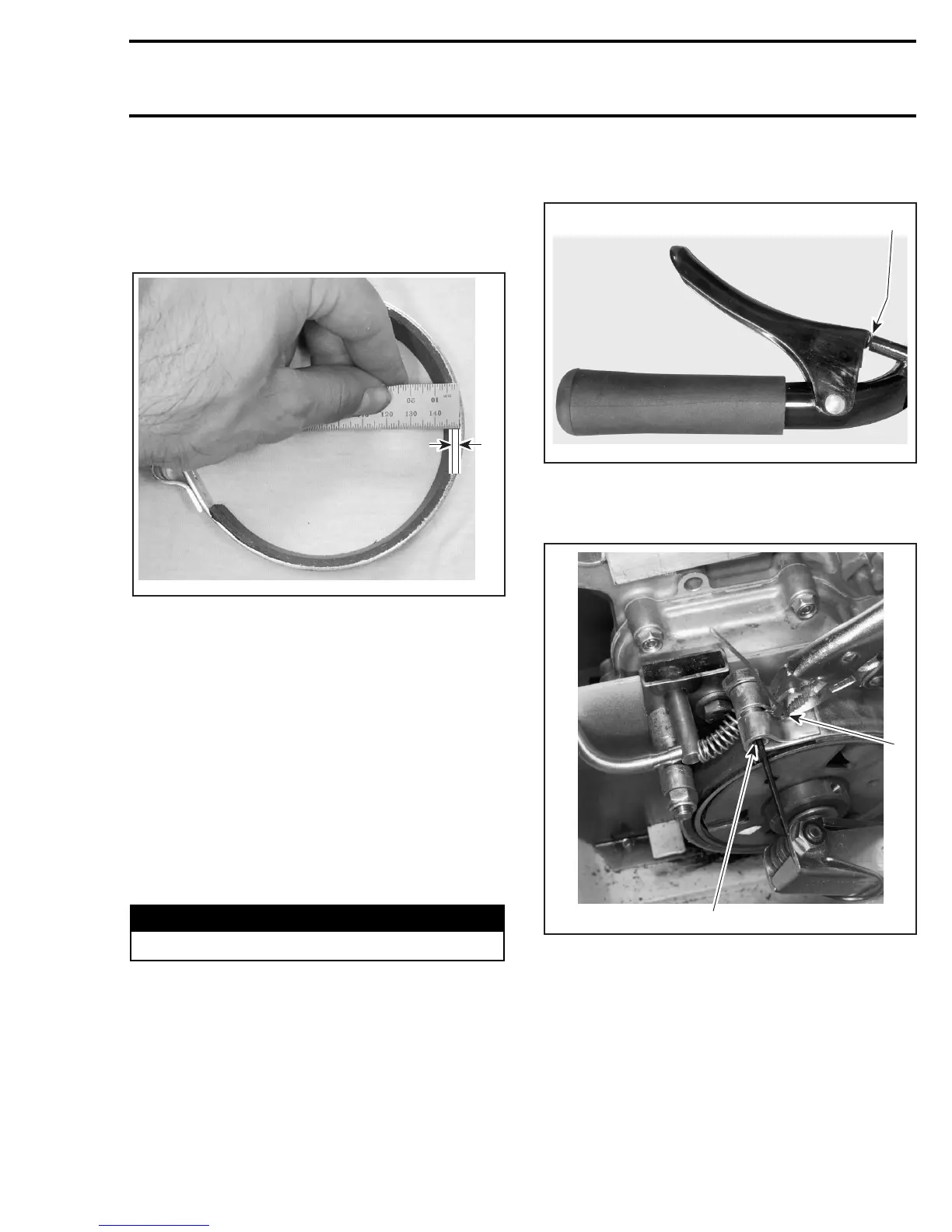

INSPECTION
2, Brake Pad
Brake pad must be replaced when lining is 1 mm
(1/32 in) thick or less.
A. 1 mm (1/32 in) minimum
6, Brake Drum (clutch cover)
Inspect brake drum surface in clutch cover for
scoring, wear or cracking.
If brake drum needs to be replaced, replace clutch
assembly with new one.
INSTALLATION
To install brake pad, reverse removal procedure
paying attention to the following.
When securing brake pad with elastic nut no. 3.
Stop tightening when nut leans against brake pad.
This will avoid brake pad damage.
Check that brake lever is set to normal position (no
play), as shown in the next photo.
1. No play here
Using pliers, secure brake cable so that brake pad
slightly rests on clutch cover.
1. Tighten Allen screw
2. Pull brake cable with pliers
WARNING
Avoid getting oil on brake pad.
A31D0JA
A
A31D05B
1
1
A31D04A
2
