Section 07 REAR SUSPENSION
Subsection 03 (DRIVE AXLE)
MMR2000_131_07_03A.FM 07-03-3

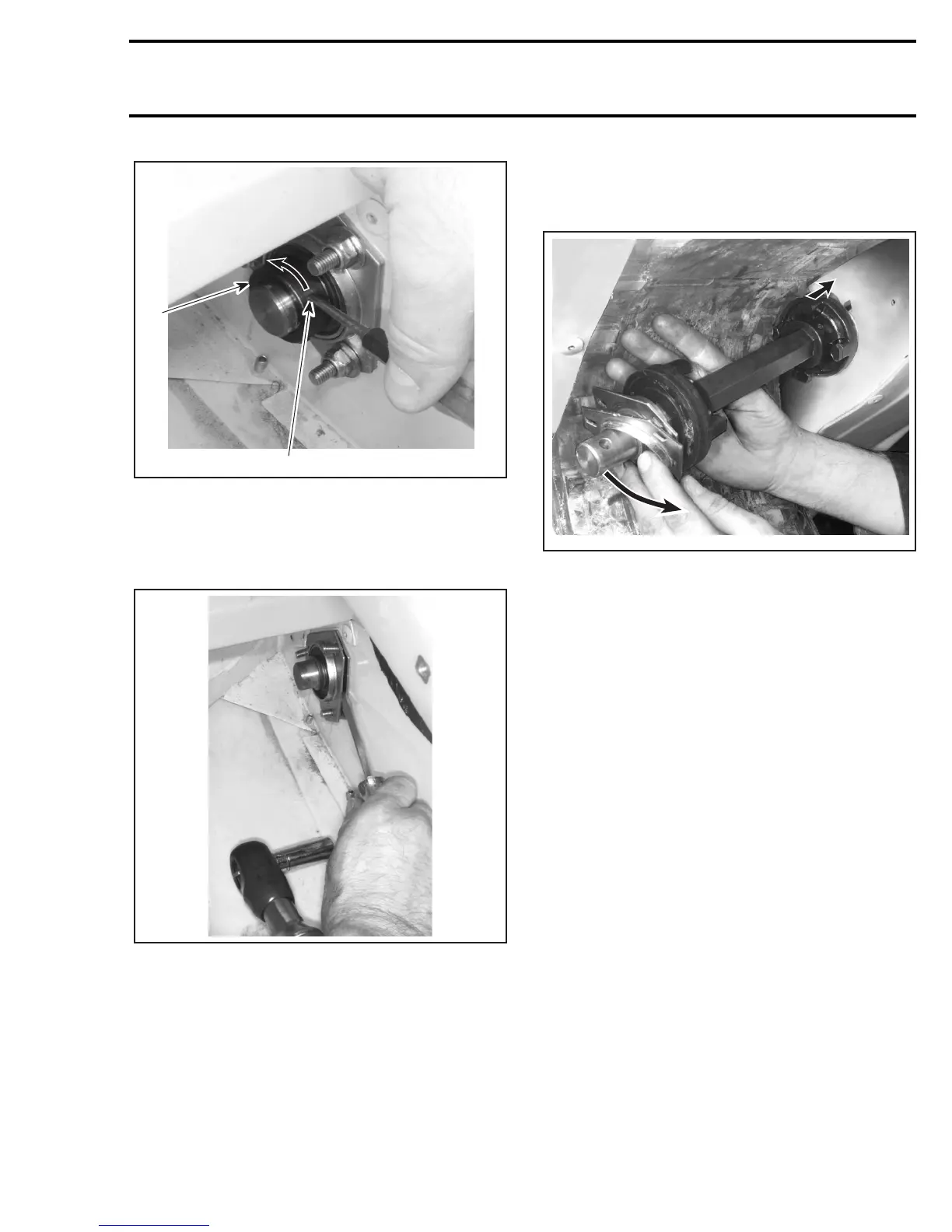

1. Lock sleeve
2. Position punch in this hole
Remove 3 bearing holder nuts no. 5 and screws
no. 6 then detach both halves no. 7 using a flat
screwdriver. See the following photo.
DETACH BEARING HOLDER HALVES
Repeat procedure for left side bearing, except for
lock sleeve.
Drive Axle Ass‘y
Pull out drive axle ass‘y no. 8, as shown in the next
photo.
PULL OUT DRIVE AXLE ASS‘Y
DISASSEMBLY AND ASSEMBLY
Bearing and Sprocket
To remove or to install bearings no. 9 and sprock-
ets no. 2, use a press.
CAUTION: Ensure that bearings and sprockets
are properly supported near hub and that
spring pins have been removed from sprock-
ets, before removal.
INSTALLATION
Reverse the removal procedure and pay a special
attention to the following points.
Sprockets can be positioned with drive axle in
place. In that case use drive axle sprocket adjuster
(P/N 861 725 700), as shown in the following photo.
A31D0RA
2
1
A31D0SA
A31D0TA
