Section 07 REAR SUSPENSION
Subsection 03 (DRIVE AXLE)
07-03-4 MMR2000_131_07_03A.FM

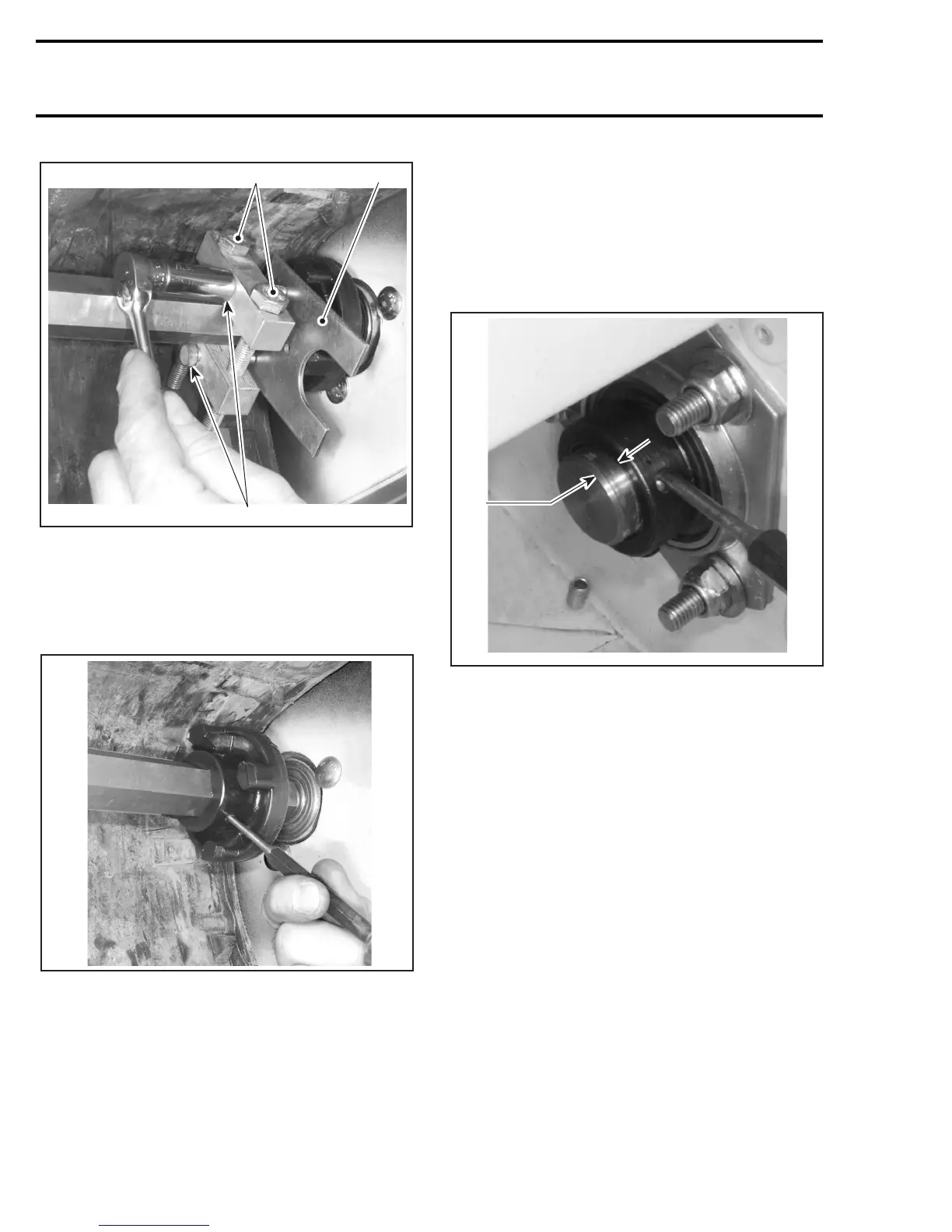

1. Tighten tool on drive axle with these screws
2. Install plate to protect sprocket
3. Use these screws to move sprocket
Reinstall spring pins as shown in the next photo.
CAUTION: Ensure that drive axle spring pin
hole is properly aligned with sprocket hole.
REINSTALL SPRING PIN
Drive Axle Alignment
To ensure that drive axle sprockets are properly
aligned with track guides, measure right side drive
axle end.
Drive axle must exceed bearing locking sleeve by
4 mm (5/32 in), as shown in the next photo. If not,
realign drive axle.
A. 4 mm (5/32 in)
Tighten (clockwise) bearing lock sleeve and secure
with set screw. Apply Loctite 242 on set screw
threads.
1
A31D0UA
2
3
A31D0OA
A
A31D0VA
