Section 05 TRANSMISSION
Subsection 02 (CLUTCH)
05-02-4 MMR2000_125_05_02A.FM
INSTALLATION
To install clutch, reverse removal procedure pay-
ing attention to the following.

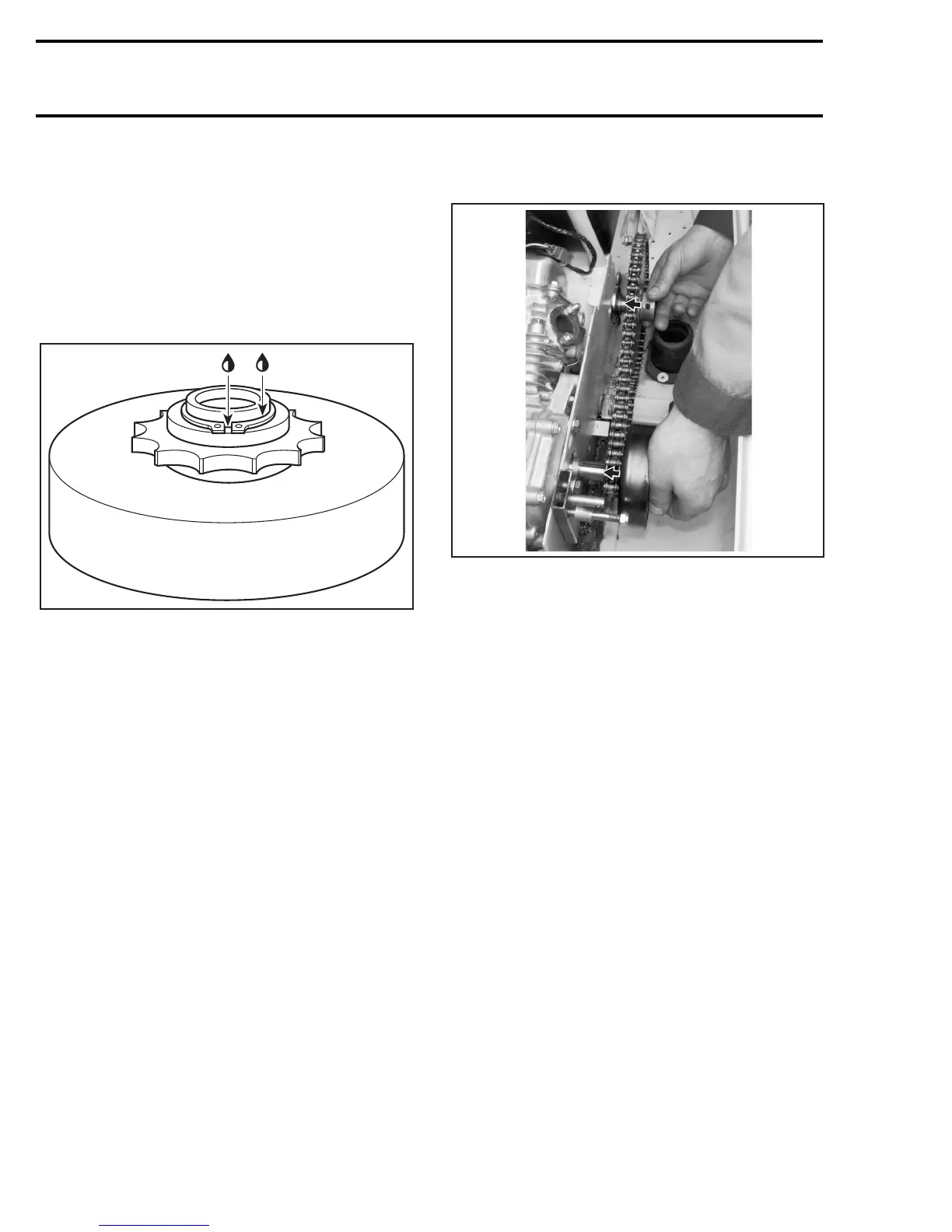

Pour a few drops of oil into clutch sleeves, as
shown in the next illustration.
CAUTION: Pour a few drops of oil on clutch
axle only. Do not spill oil into clutch mechanism
or on clutch cover (braking surface).
DRIP A FEW DROPS OF OIL ON CLUTCH AXLE
To ease sprocket and clutch installation, first install
drive chain on both sprockets. Slide clutch and
driven sprocket on shafts, as per following photo.
CAUTION: Ensure that keyway is properly po-
sitioned when sliding clutch on shaft.
SLIDE CLUTCH AND DRIVEN SPROCKET
Secure clutch and driven sprocket.
Reinstall automatic drive chain tensioner.
A31D01A
A31D0FA
