Section 07 REAR SUSPENSION
Subsection 02 (REAR SUSPENSION)
MMR2000_130_07_02A.FM 07-02-5

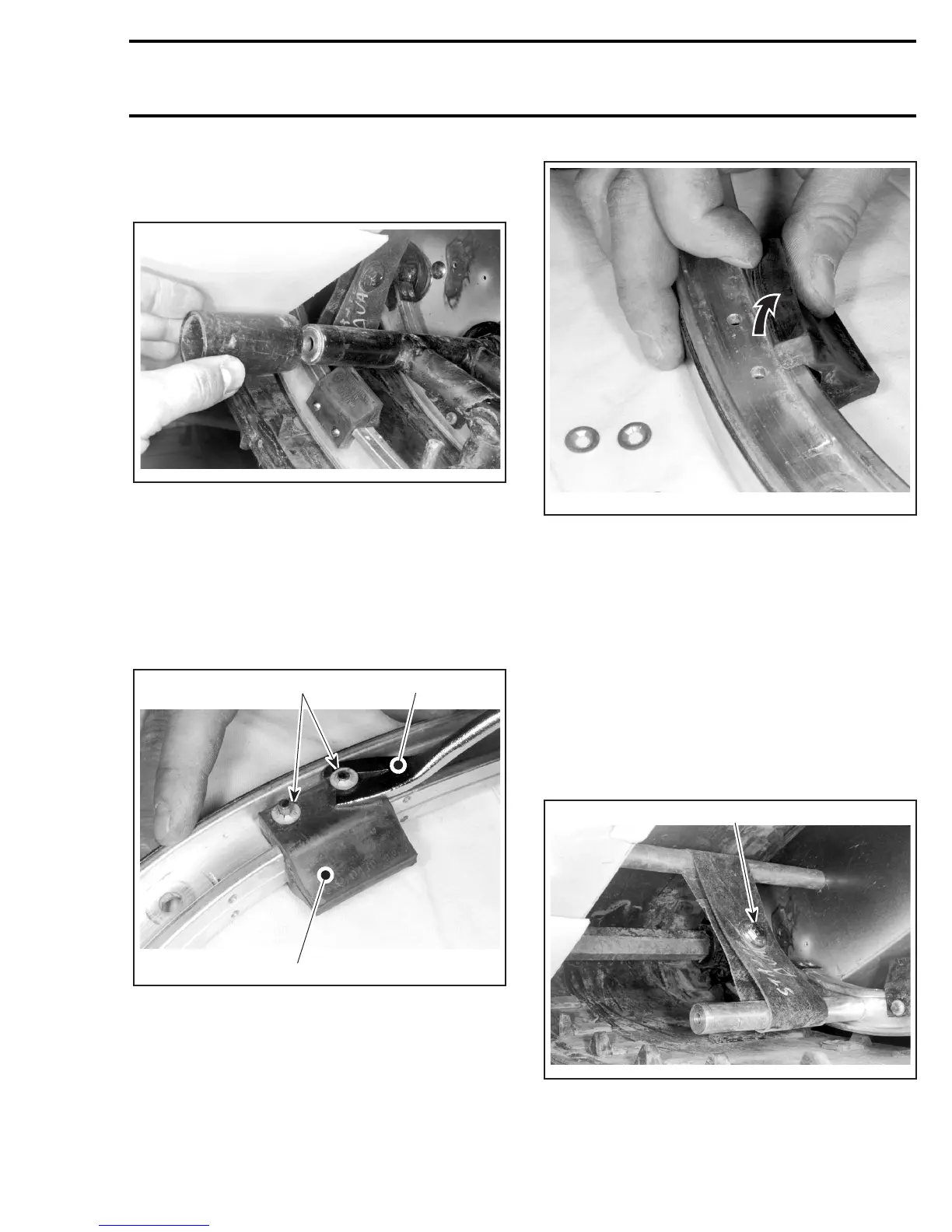

Remove bushing no. 13, as shown in the next
photo. Clean all surfaces and check for excessive
wear.
REMOVE AND CLEAN BUSHING
To reinstall, reverse removal procedure.
14,15,16, Rubber Stopper
NOTE: Rubber stopper no. 14 can be replaced
with runner and suspension ass‘y in place.
Using special tool Snap-on A161B, remove push
nuts no. 15 as shown in the next photo.
1. Rubber stopper
2. Special tool Snap-on A161B
3. Push nuts
Remove retaining pins no. 16.
Lift rubber stopper tab and remove it.
REMOVE RUBBER STOPPER
Reinstall rubber stopper no. 14 with retaining pins
no. 16 and push nuts no. 15.
CAUTION: When reusing original push nuts,
ensure that they are in good condition. If not,
replace with new push nuts.
INSPECTION
17,18, Stopper Straps
Inspect straps for wear or cracks, bolts and nuts
for tightness. If nuts are loose, inspect hole for
deformation. Replace as required.
TYPICAL — FRONT STRAP SHOWN
1. Inspect bolts and nuts for tightness
A31F0DA
A31F0EA
32
1
A31F0FA
A31F0GA
1
