Section 07 REAR SUSPENSION
Subsection 02 (REAR SUSPENSION)
07-02-6 MMR2000_130_07_02A.FM
19,20, Upper Idler Wheels

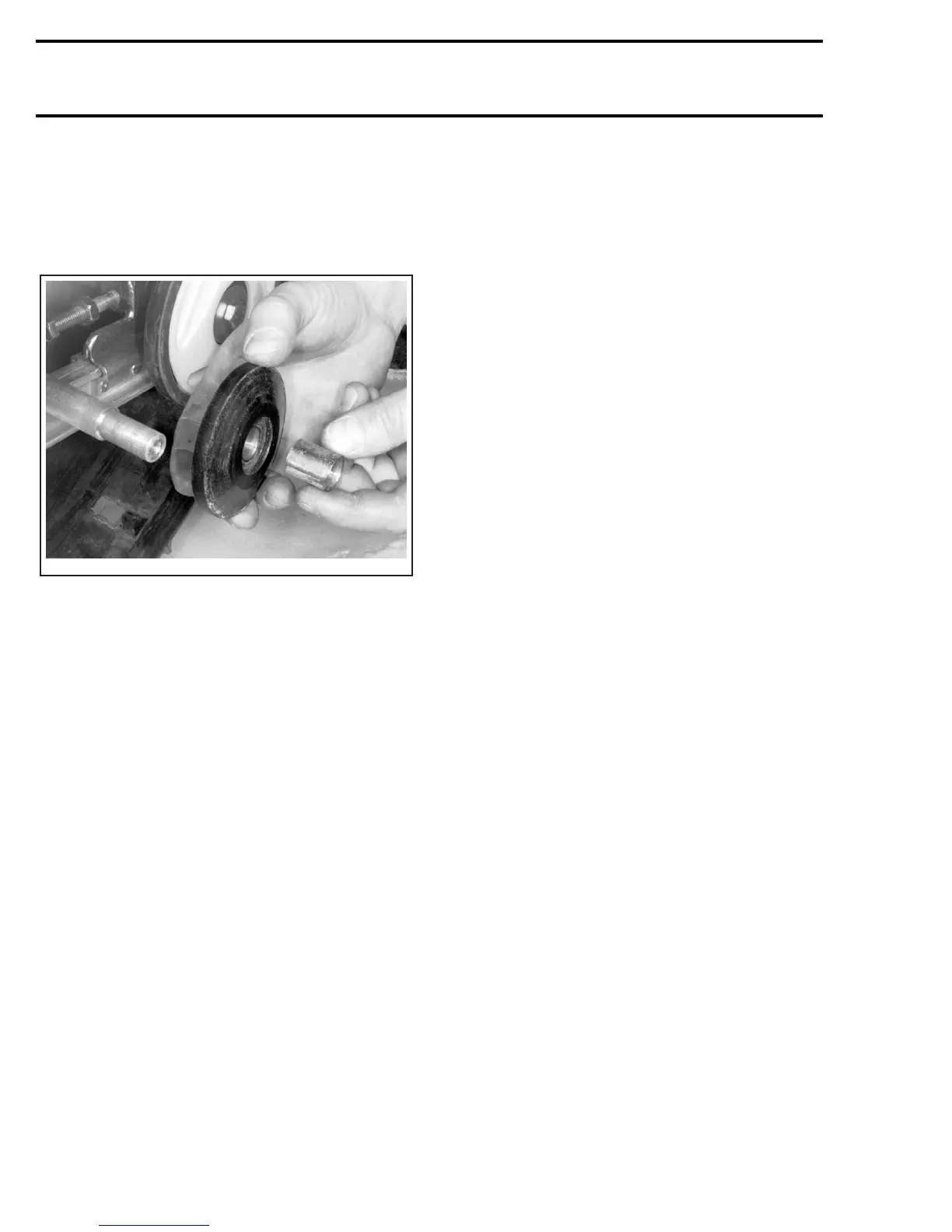

Remove bushing no. 20 and idler wheel no. 19
from shaft no. 4, as shown in the next photo.
Clean parts and check for wear and bearing condi-
tion.
CHECK BUSHING, WHEEL AND SHAFT CONDITION
21, Slider Shoe
Inspect slider shoes no. 21 for wear.
CAUTION: Even if only one slider shoe needs
to be replaced, always replace both ones. Slid-
er shoes must always be replace in pairs.
To replace slider shoes:
– Remove left side runner.
– Bend tabs from used slider shoe then remove it.
– Install new slider shoe on one end of the runner,
then clip second end.
– Secure slider shoe by bending tabs onto runner.
– Repeat procedure on right side.
A31F0HA
