Section 09 BODY AND FRAME
Subsection 02 (BODY)
09-02-2 MMR2000_134_09_02A.FM
INSTALLATION AND ADJUSTMENT

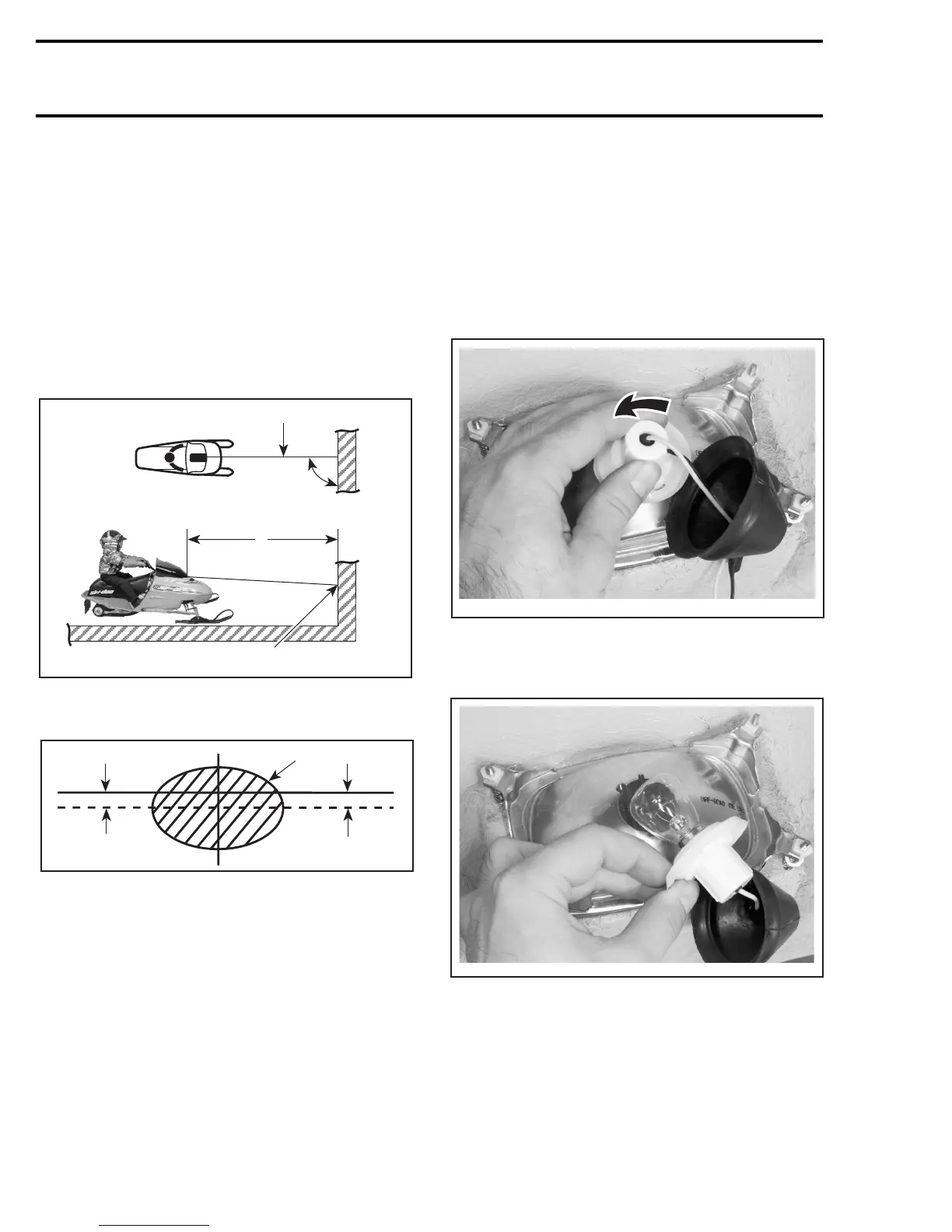

HEADLAMP BEAM AIMING
Beam aiming is correct when center of high beam
is 25 mm (1 in) below the headlamp horizontal cen-
ter line, scribed on a test surface, 381 cm (12 ft 6 in)
away.
Measure headlamp center distance from ground.
Scribe a line at this height on test surface (wall or
screen). Light beam center should be 25 mm (1 in)
below scribed line.
1. Headlamp center line
A. 381 cm (12 ft 6 in)
B. 25 mm (1 in) below headlamp center
1. Headlamp horizontal center line
2. Light beam (high beam) (projected on the wall)
3. Light beam center
A. 25 mm (1 in)
Required Conditions
Place the vehicle on a flat surface perpendicular to
test surface (wall or screen) and 381 cm (12 ft 6 in)
away from it.
Rider or equivalent weight must be on the vehicle.
Adjustment
Remove headlamp screw caps. Turn screws ac-
cordingly at upper headlamp attachment.
BULB REPLACEMENT
Headlight
If headlamp bulb is burnt, tilt hood.
Remove the rubber boot and turn the bulb retainer
ring counterclockwise.
REMOVE RUBBER BOOT AND BULB RETAINER RING
Pull off bulb retainer ring, detach the bulb and re-
place. Properly reinstall parts.
Taillight
Taillight is sealed, if it is burnt, replace taillight
ass‘y with new one.
To remove, unscrew the 2 lens screws.
Pull out taillight ass‘y.
Unplug connector.
Install new taillight ass‘y.
A31E0DA
1
B
90°
A
A02E07A
2
A
1
3
A31E0BA
A31E03A
