Section 04 ENGINE
Subsection 07 (REWIND STARTER)
MMR2000_122_04_07A.FM 04-07-5

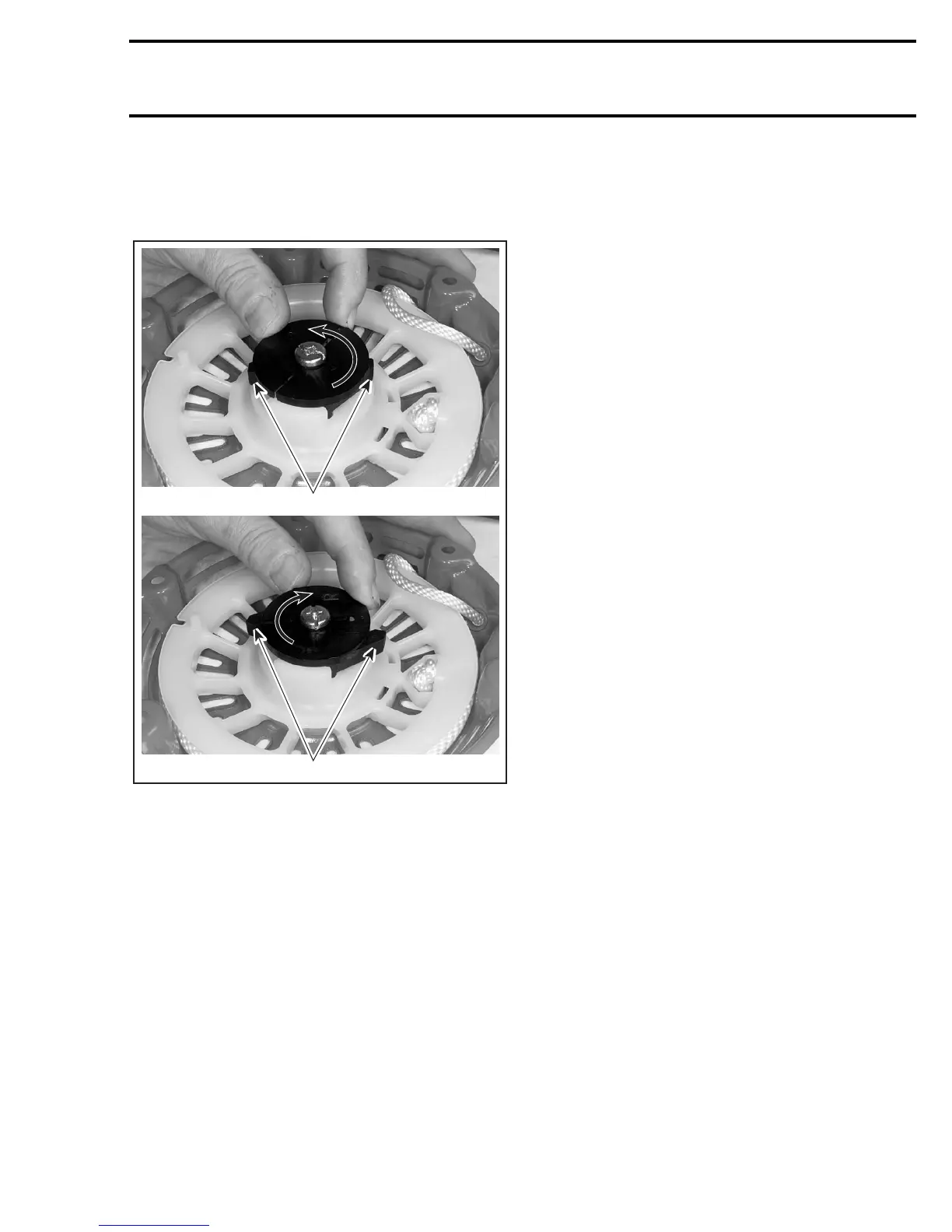

Check ratchet operation: when turning ratchet
guide counterclockwise, ratchets must move in.
When turning ratchet guide clockwise, ratchets
must move out as shown in the next photo.
1. Turn counterclockwise (CCW) — ratchets in
2. Turn clockwise (CW) — ratchets out
INSTALLATION
Reinstall rewind starter ass‘y on engine.
Reinstall engine in snowmobile.
Prior to installing starter grip no. 1 on new rope, it
is first necessary to fuse the rope end with a lit
match.
Pass rope through snowmobile fitting and starter
grip and tie a knot in the rope end. Fuse the knot
with a lit match then insert rope end down and pull
the starter grip over the knot.
Reconnect fuel hose.
Reinstall clutch, drive chain, then chain guard.
A31C1IA
1
2
