Section 04 ENGINE
Subsection 07 (REWIND STARTER)
04-07-4 MMR2000_122_04_07A.FM

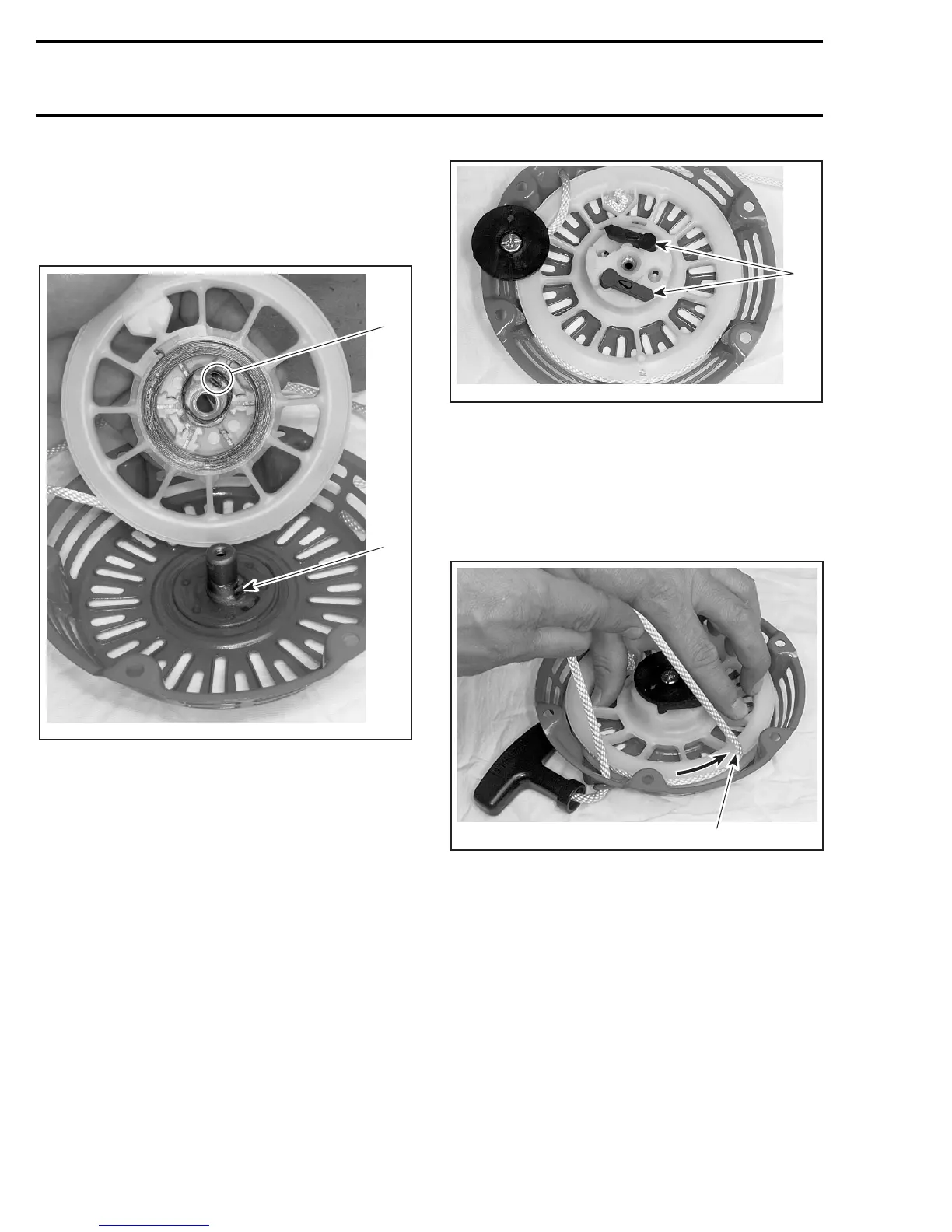

To adjust rope tension:
Wind rope on sheave and place sheave into starter
housing making sure that the sheave hub notch
engages in the rewind spring hook. See the next
photo.
1. Sheave hub notch
2. Rewind spring hook
Rotate the sheave counterclockwise until rope
end is accessible through starter housing orifice.
Pull the rope out of the starter housing and tem-
porarily make a knot to hold it.
Position both ratchets (with springs), as shown in
the next photo.
1. Ratchet
Finalize rewind starter assembly with friction
spring no. 8, ratchet guide no. 6 and screw no. 5.
Attach rope to sheave notch then turn (2 turns)
sheave counterclockwise, as shown in the next
photo. One turn preload will give 7 turns of tension
when fully extended.
2 TURNS COUNTERCLOCKWISE
1. Sheave notch
A31C1BB
2
1
A31C1EA
1
A31C1FA
1
