Section 04 ENGINE
Subsection 08 (CARBURETOR)
MMR2000_123_04_08A.FM 04-08-3

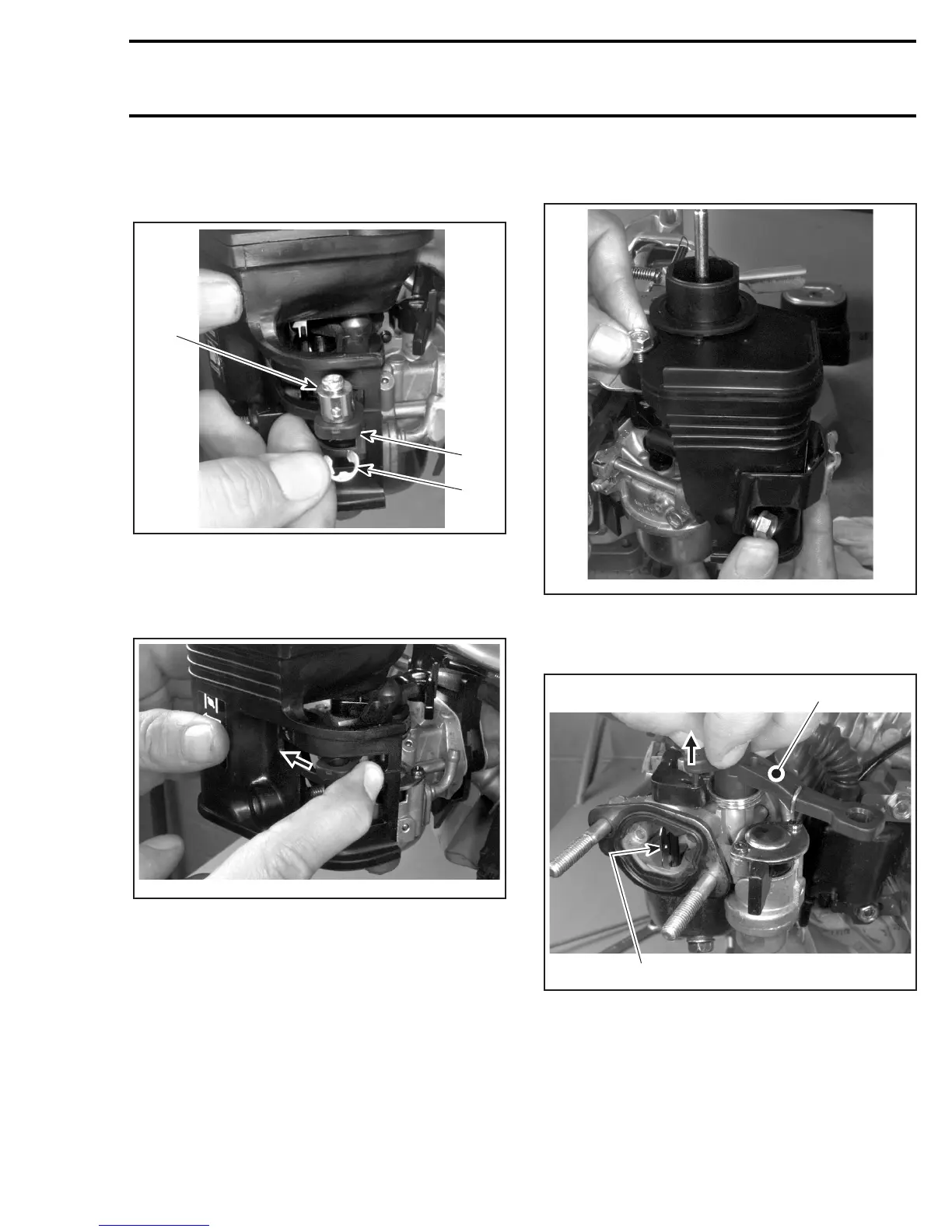

Remove circlip no. 5 then remove choke cable at-
tachment from carburetor choke lever, as shown
in the next photo.
1. Circlip
2. Choke cable attachment
3. Carburetor choke lever
Move carburetor choke lever to the left, as shown
in the next photo.
MOVE CARBURETOR CHOKE LEVER
Unscrew carburetor protector screws then remove
carburetor nuts.
Remove carburetor protector, as shown in the next
photo.
REMOVE CARBURETOR PROTECTOR
Lift up choke lever no. 6 and detach from choke
no. 7, as shown in the next photo.
LIFT UP CHOKE LEVER
1. Choke lever
2. Choke
A31C0OA
2
3
1
A31C0PA
A31C0QA
A31C0RA
1
2
