Section 04 ENGINE
Subsection 08 (CARBURETOR)
MMR2000_123_04_08A.FM 04-08-5

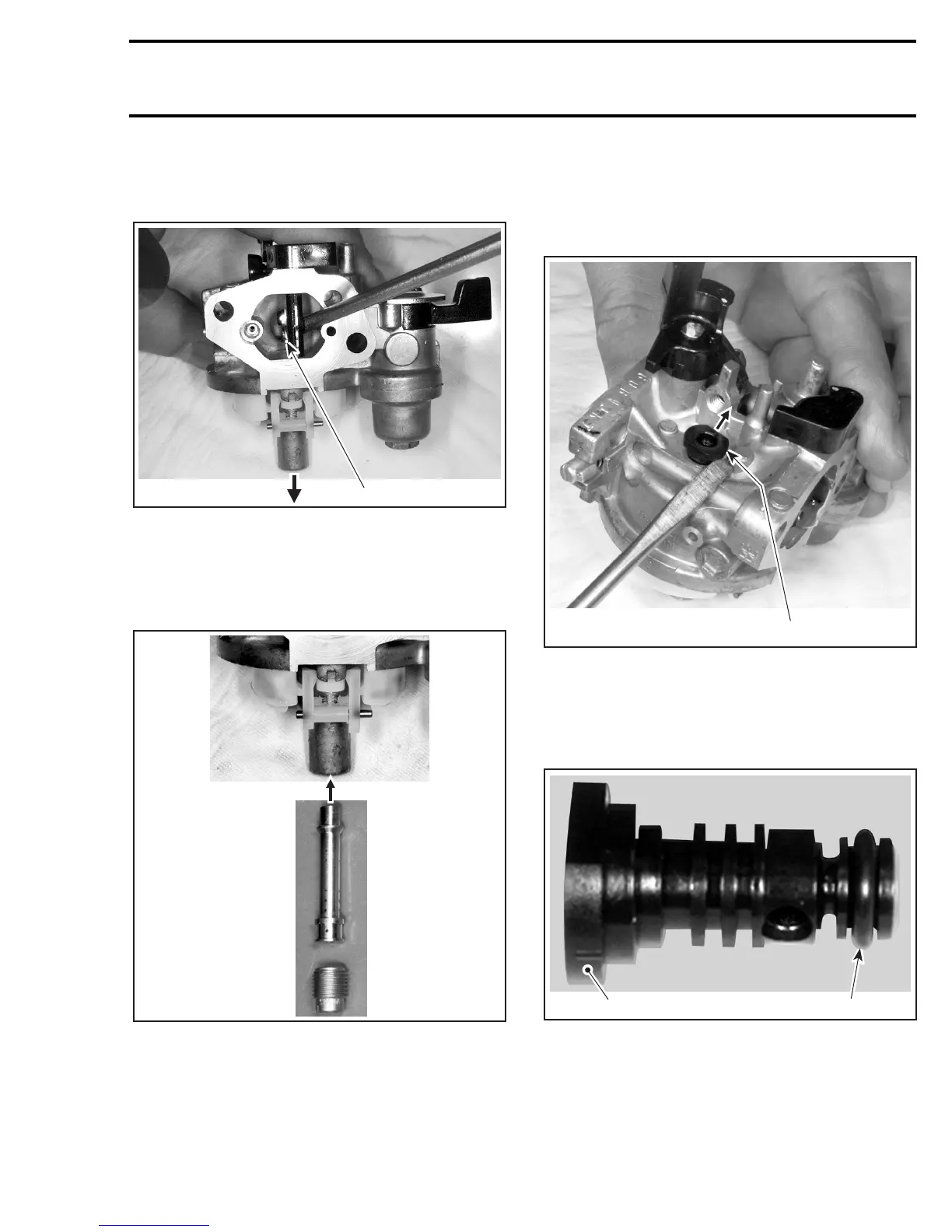

To re m ove n ozzle no. 12 use a flat screwdriver
and push from inside carburetor, as shown in the
following photo.
1. Push on nozzle to remove it
Clean main jet and nozzle thoroughly with com-
pressed air.
Reinstall nozzle and main jet as shown in the next
photo.
PROPER POSITION TO INSTALL NOZZLE AND MAIN JET
13,14, Pilot Jet
Remove stop screw no. 15.
Using a flat screwdriver remove pilot jet no. 13, as
shown in the next photo.
TO REMOVE, LIFT PILOT JET
1. Pilot jet
Clean pilot jet using compressed air.
Ensure that O-ring no. 14 is not damaged. If so,
replace with new one. See next photo.
1. Pilot jet
2. O-ring
A31C0UA
1
A31C16A
A31C0WA
1
A31C0XA
1 2
