Section 5 – Procedures Non-Routine Maintenance
3. Remove cross pin from sleeve as shown in figure
below.

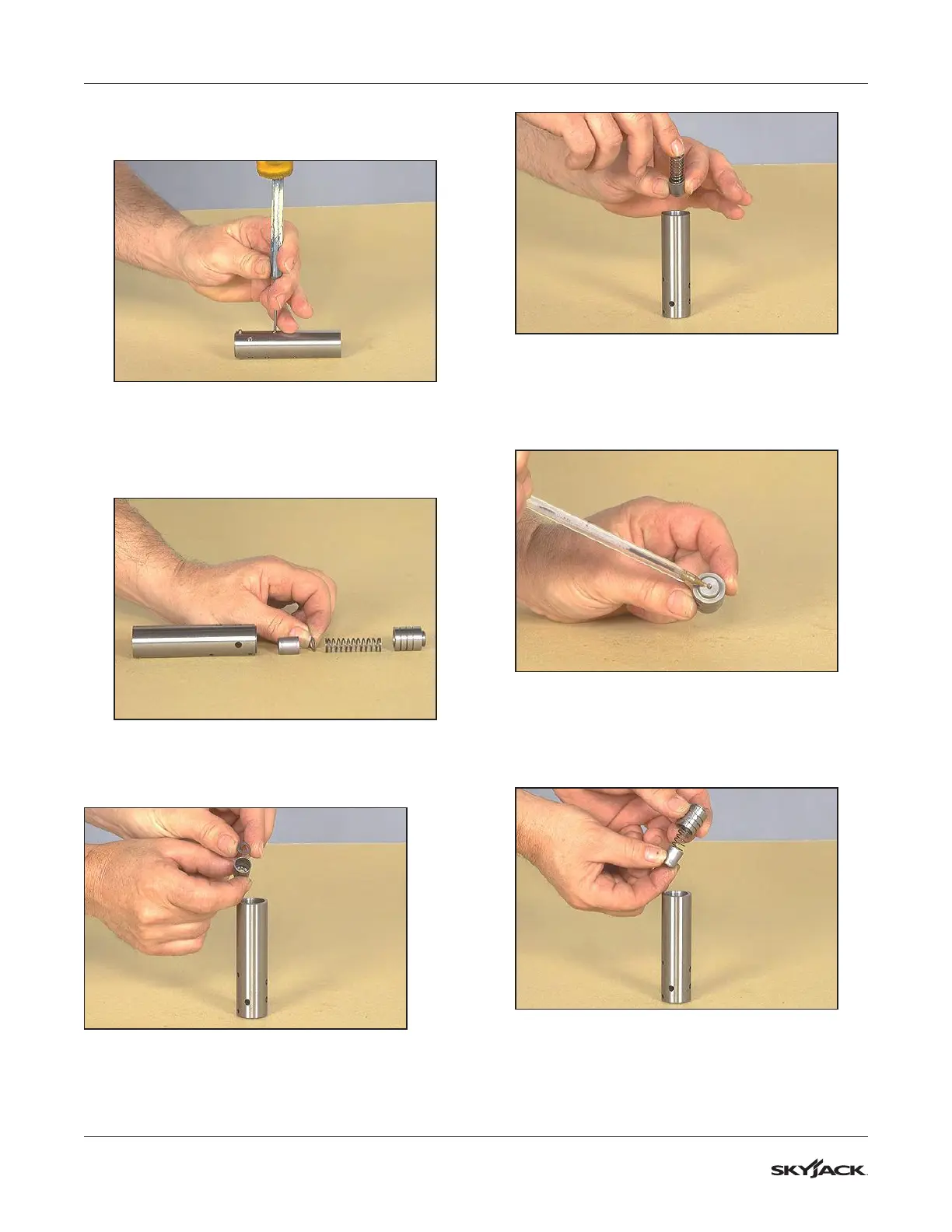

Figure 114 Remove Cross Pin
4. Remove regulator spool, spring, retainer spring
and spacer spring from housing sleeve as shown
in figure below.
Figure 115 Remove Components from Housing Sleeve
5. Install spring spacer in spring retainer as shown in
figure below.
Figure 116 Install Spring Spacer
6. Install spring in spring retainer as shown in figure
below.
Figure 117 Install Spring in Retainer
7. Check orifice in regulator spool to be free and
clear of any foreign material as shown in figure
below.
Figure 118 Verify Orifice is Clear of Debris
8. Install spring retainer, spring and regulator valve
in sleeve against inner cross pin as shown in
figure below.
Figure 119 Install Component in Sleeve
