Non-Routine Maintenance Section 5 – Procedures

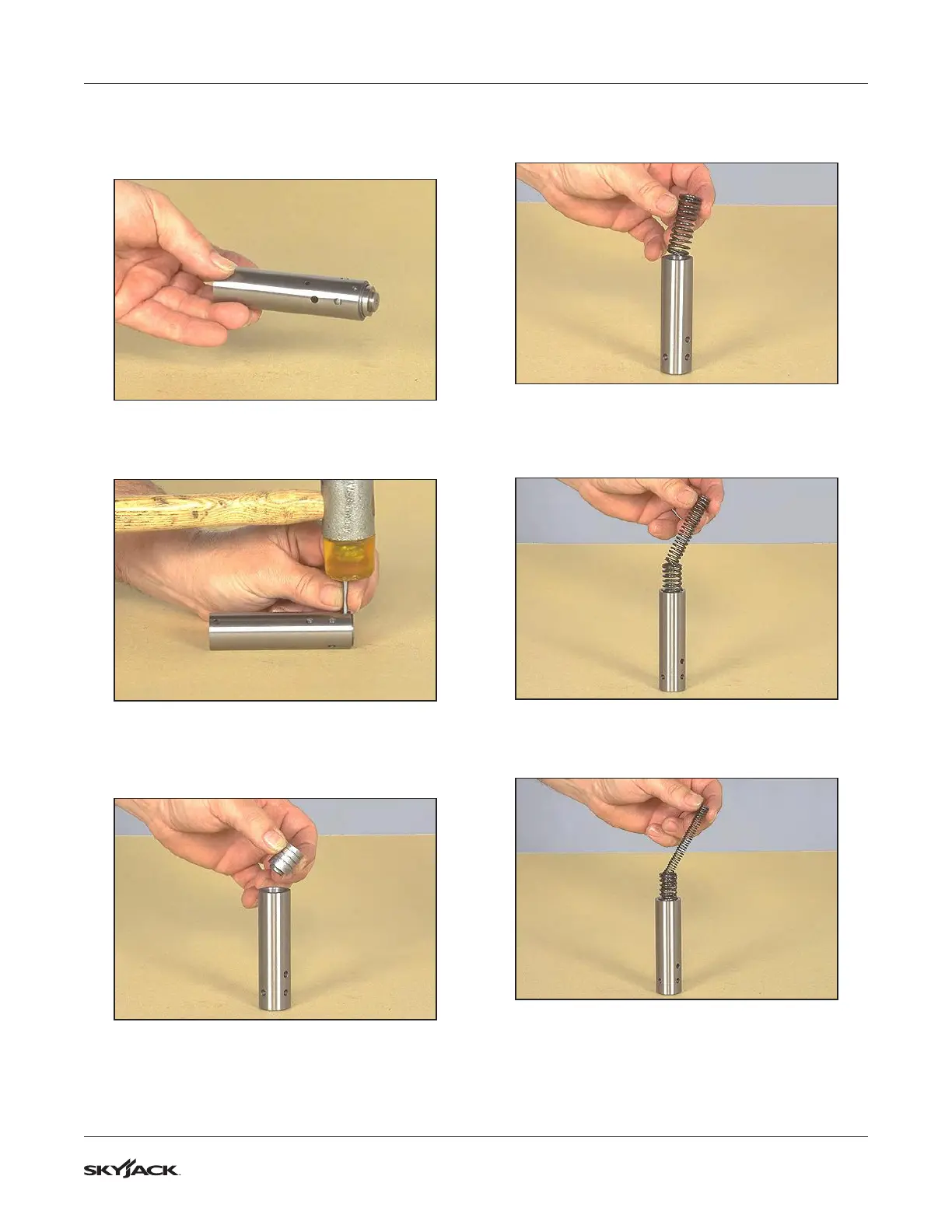

9. Compress regulator spool and spring in sleeve
far enough to install cross pin as shown in figure
below.
Figure 120 Compress Components in Sleeve
10. Install cross pin as show in figure below.
Figure 121 Install Cross Pin
11. From opposite end, position accumulator spool in
sleeve as shown in figure below.
Figure 122 Position Accumulator Coil
12. Install outer accumulator spring as shown in
figure below.
Figure 123 Install Outer Accumulator Spring
13. Install middle spring as shown in figure below.
Figure 124 Install Middle Spring
14. Install inner spring as shown in figure below.
Figure 125 Install Inner Spring
15. Install stop pin in inner spring as shown in figure
below.
