Section 5 – Procedures Non-Routine Maintenance

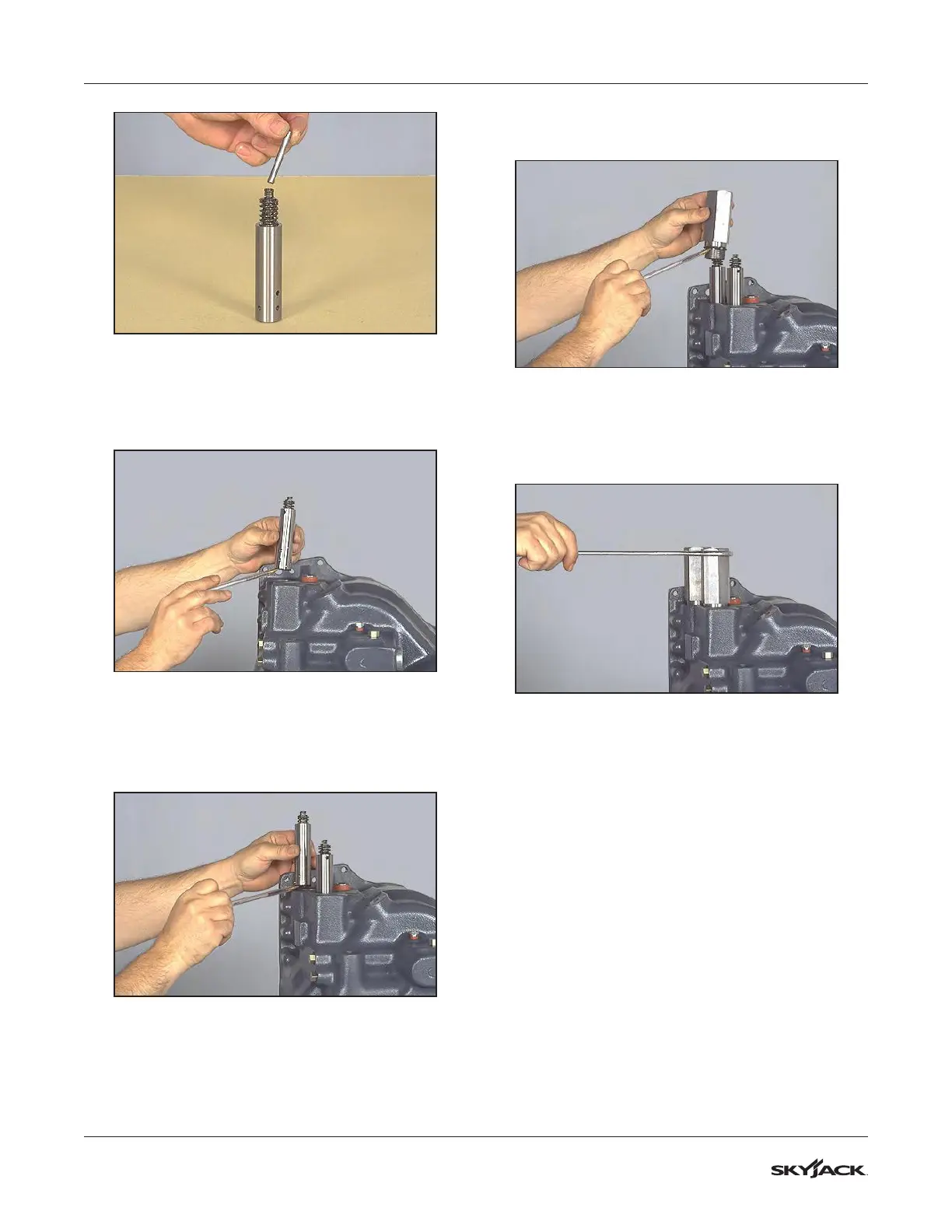

Figure 126 Install Stop Pin
16. Position a new O-ring on lower end of the
modulation valve sleeve and spring assembly as
shown in figure below.
Figure 127 Install O-ring
17. Install O-ring on other valve sleeve.
18. Install valve or valves in transmission case as
shown in figure below.
Figure 128 Install Valve(s)
19. Position a new O-ring on modulator valve housing
as shown in figure below.
Figure 129 Install Valve(s)
20. Install housing over sleeve and spring assembly
and tighten to 60-65 LBF-FT [81-88 N.m] as
shown in figure below.
Figure 130 Install and Torque Housing
