187
SJ1044 TH, SJ1044 THS, SJ1056 TH, SJ1056 THS, SJ1256 THS
230790ABA
Non-Routine Maintenance Section 5 – Procedures

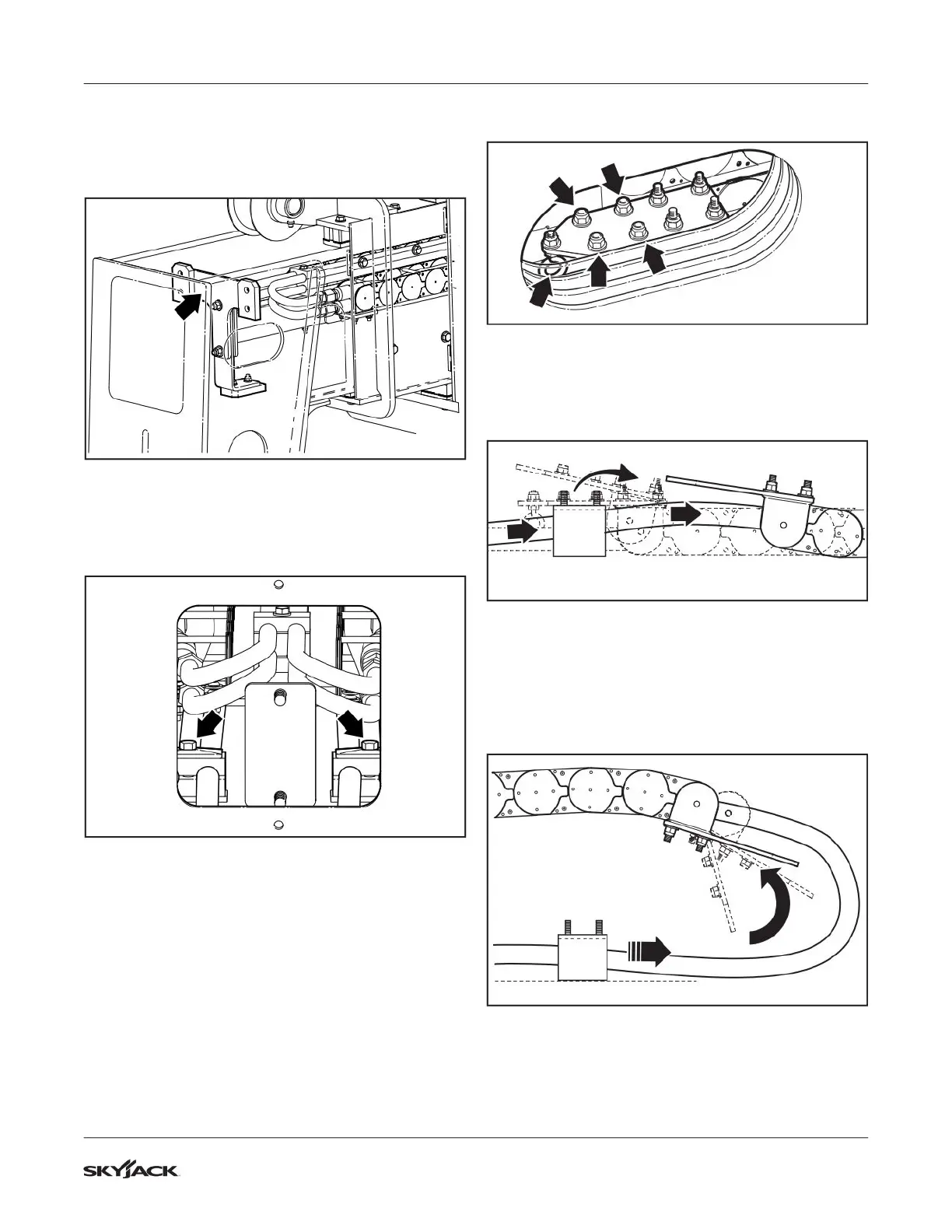

12. Inside the front access hole, remove the upper
guide bracket on the (T-shaped) support. Put the
hex nuts back on to keep the lower support in
place.
M62327AA
Figure 146 Upper Guide Bracket
13. Depending on which side is being removed, take
the hose clamps off the hoses inside the front
access hole.
M62288AA
Figure 147
14. At the side access hole, remove the hex nuts from
the four bolt studs that secure the cable track
bracket to the mount inside the frame.
15. Remove the eyebolt from the cable track bracket.
M62290AA
Figure 148 Side Access Hole
16. From the side access hole, lift the mounting
bracket up and off of the bolt studs, pushing it
towards the rear of the machine.
M62301A
A
Figure 149
17. Roll the end of the cable track over while pulling
the hoses out through the mount bracket inside
the boom. Once through the mount, push them
down inside the boom towards the back of the
machine.
M62302A
A
Figure 150
To Next Page
