SJ1044 TH, SJ1044 THS, SJ1056 TH, SJ1056 THS, SJ1256 THS
230790ABA
Port J3 to Port 3
on Joystick
Port J3 to Port 3
on Joystick
Port ORBR to Port R
on Steering Control
Unit
Port FCR to Port R
on Front Axle Steer
Cylinder
2H-221
Frame Speed
Solenoid Valve
CV10
Check Valve
CV4
Check Valve
CV3
Check Valve
OR1
CV7
Check Valve
CV6
Check Valve
Port BR2
to Front Axle
Port DR3 to Port T
on optional Reserve
Brake Manifold
Port STLS to Port LS
on Steering Control
Unit
Port STLS to Port LS
on optional Reserve
Brake Manifold
CV5
Check Valve
OR7
CV2
Check Valve
CV1
Check Valve
CV9
Check Valve
CV8
Check Valve
CV12
Check Valve
Port LS to Port X
on Hydraulic Pump
(SJ10XX TH/THS)
Port LS to Port X
on Hydraulic Pump
(SJ1256 THS)
Port DR1 to Port T
on Brake Pedal
(SJ10XX TH/THS)
Port DR1 to Port T
on Brake Pedal
(SJ1256 THS)
Port T2 to Port P2 on
RV4-1 Valve
(SJ1256 THS)
Port RASP to RASP
on Main Manifold
Port RAST to RAST
on Main Manifold
DRAIN to
Hydraulic Tank
Port J4 to Port 4
on Joystick
RV2
Relief Valve
PS1
Pressure Switch
Port BR3 to
Rear Axle
Port PS1 to Port
On Joystick
Port OUTT to
Port OUTT EF2 on
Outrigger Manifold
Port PB to
Park Brake on
Front Axle
M191300AG-S2-12k

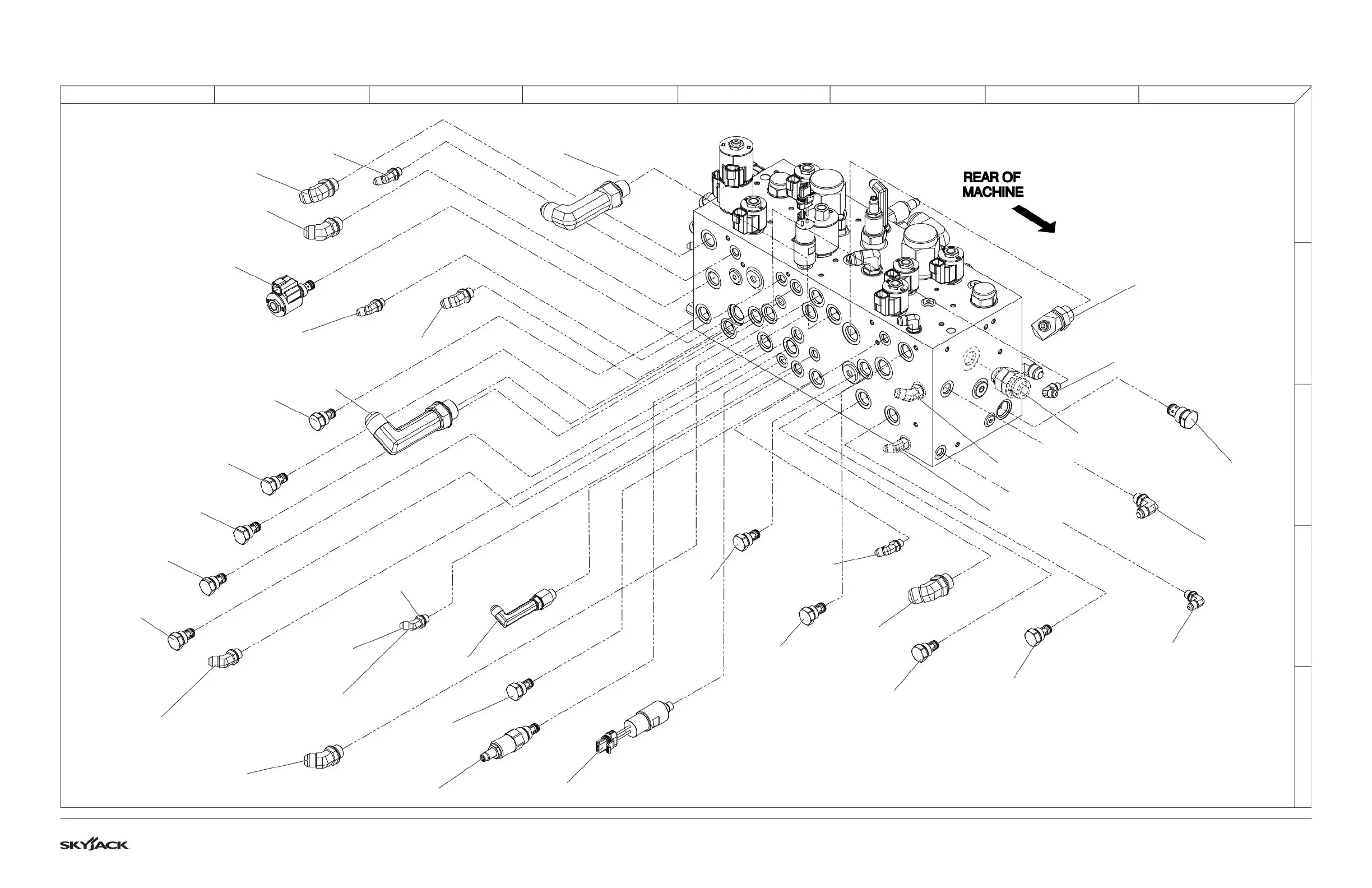

3.16 Main Manifold Port Identification
