Skyjack SJ1044 TH - Page 64

A B C D E F G H
V
Z
Y
X
W
64
SJ1044 TH, SJ1044 THS, SJ1056 TH, SJ1056 THS, SJ1256 THS
230790ABA
V2
Carriage Solenoid
Valve
2H-14A
Boom Up Enable
Solenoid Valve
4H-47
Carriage Up
Solenoid Valve
V1
Boom Function
Solenoid Valve
4H-223-1
Frame Level Right
Solenoid Valve
V4
Frame Tilt
Solenoid Valve
4H-217 & 4H-218
Steer Function
Solenoid Valve
4H-223
Frame Level Left
Solenoid Valve
3H-26
Park Brake Disable
Solenoid Valve
V3
Telescopic
Solenoid Valve
GP2
Port STT to Port T
on Steering Control
Unit
RV1
Relief Valve
Port SB to Port A1
on optional Reserve
Brake Manifold
Port SB to Port P
on Brake Pedal
4H-47-1
Carriage Down
Solenoid Valve
M169032AF-S3

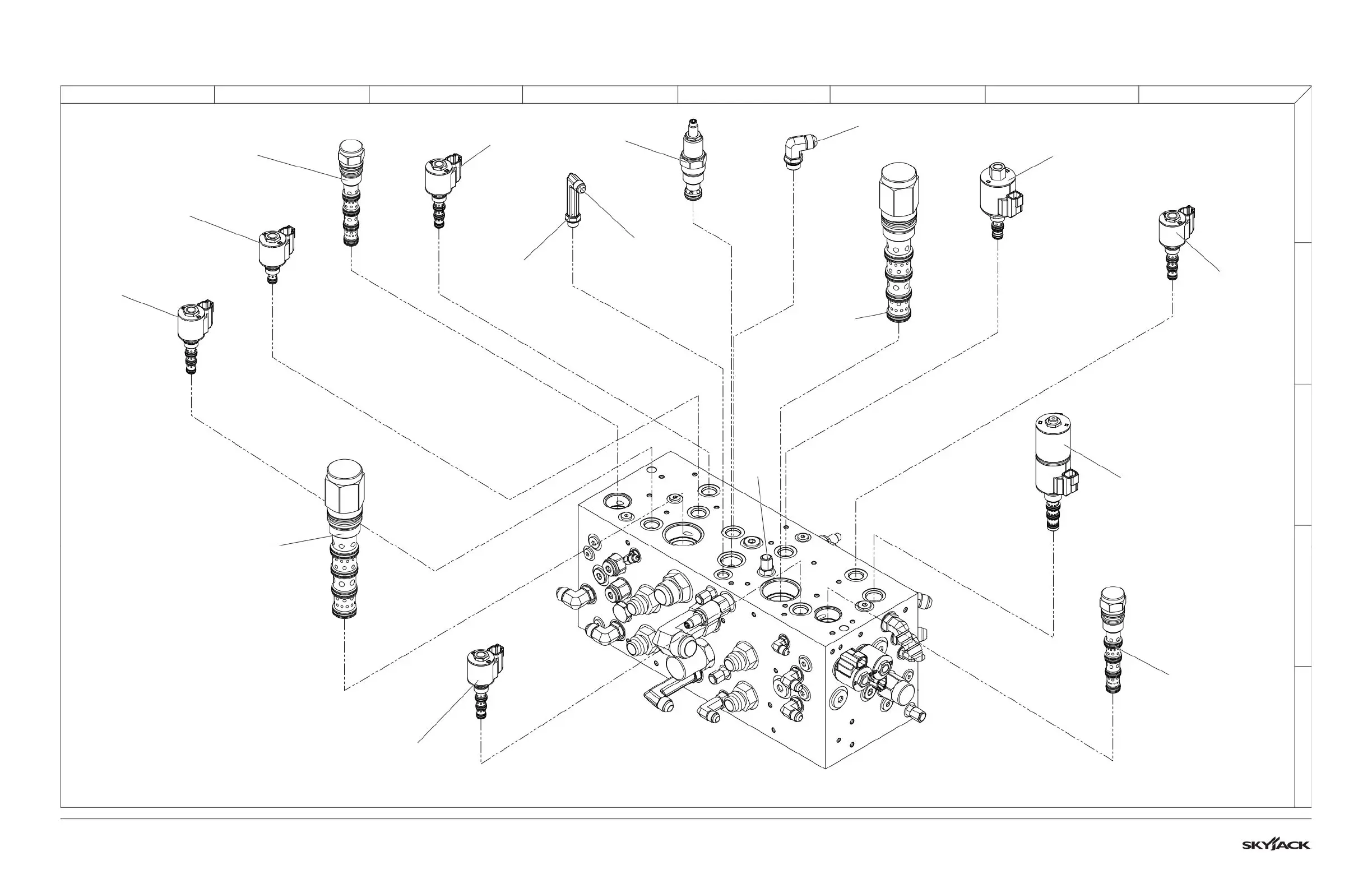

3.16 Main Manifold Port Identification
