4 Product overview
SMA Solar Technology AG
Operating manual EVC22-3AC-20-BE-en-10 23
4.3 Product Description

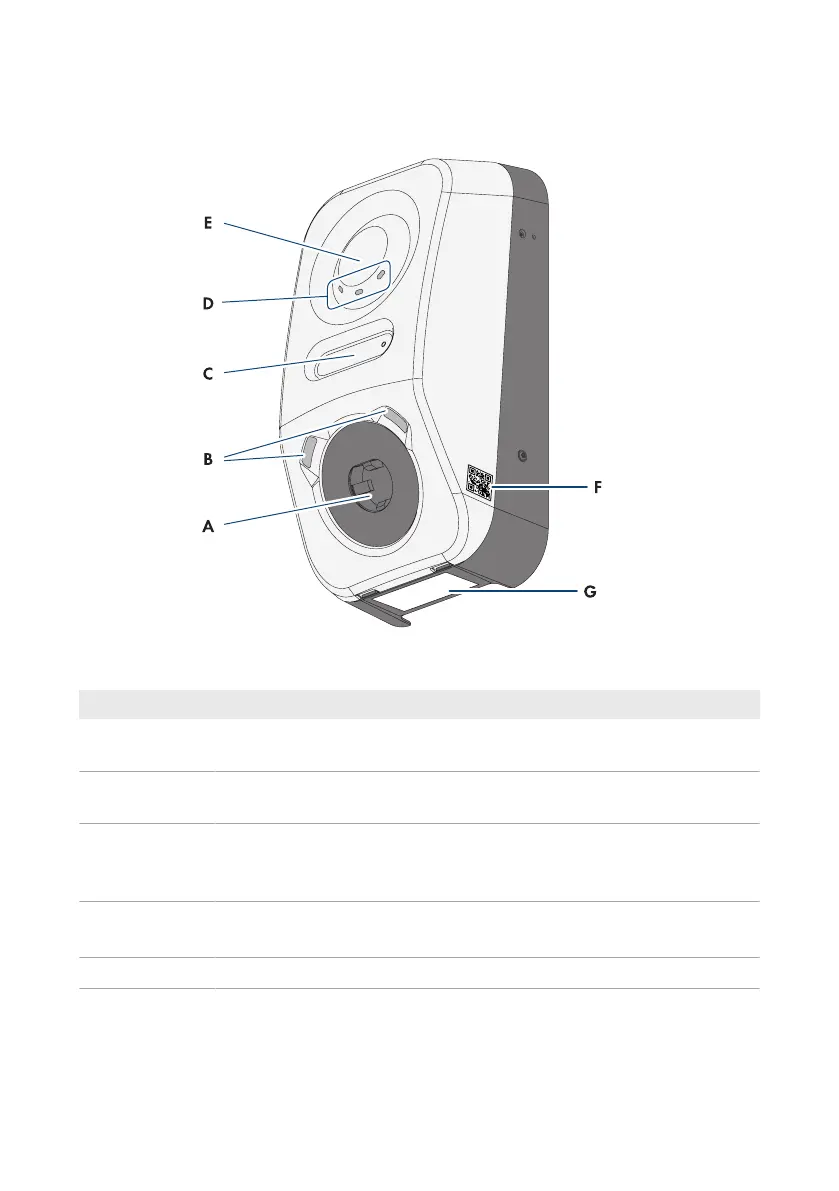

Figure 6: Design of the product
Position Designation
A Charging socket for a type 2 charging cable for connecting to an electric vehi-
cle
B LED ambient lighting The ambient lighting helps to illuminate the charging lo-
cation.
C LCD display and impulse LED
Note: The display shows instantaneous values and status information. The
flashing impulses of the impulse LED are for testing purposes.
D LED status indicator
The LEDs indicate the operating state of the product.
E Interaction area with RFID card reader and knock sensor
