6 Electrical Connection
SMA Solar Technology AG
Operating manualEVC22-3AC-20-BE-en-1056

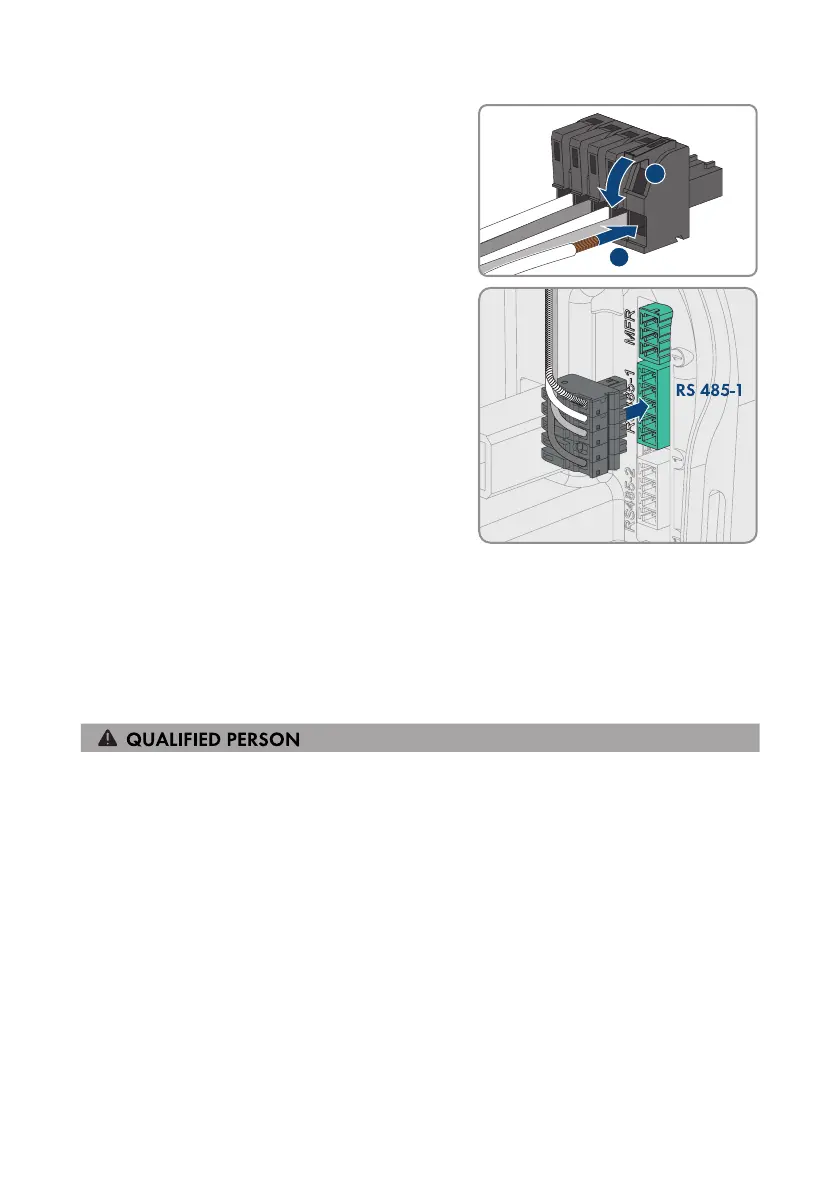

7. Connect the conductors of the connection cable to
the supplied five-pole connector. To do so, plug the
conductors into the conductor entries and close the
conductor entries. Observe the connector
assignment.
8. Plug the five-pole connector into the port RS 485-1
on the product. Observe the pin assignment.
9. Secure the cable to a strut using a cable tie, and cut off the protruding end of the cable tie
with a suitable tool.
10. Ensure that the connector is securely in place.
11. Ensure that all conductors are correctly connected.
12. Ensure that the conductors sit securely in the terminal points.
6.10 Close the enclosure cover.
Procedure:
1. Close unused enclosure opening with filler plugs.
