6 Electrical Connection
SMA Solar Technology AG
Operating manual EVC22-3AC-20-BE-en-10 57

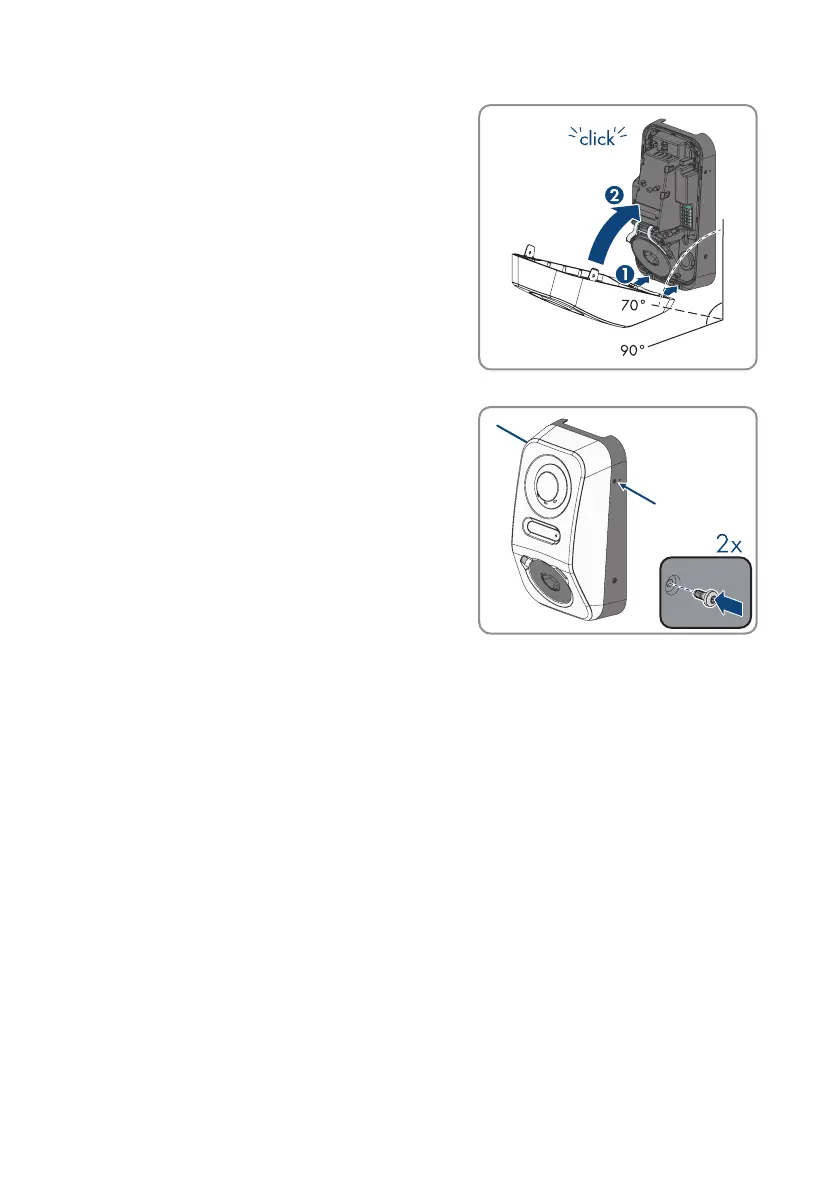

2. First, insert the cover at the bottom of the enclosure
at an angle of about 70° and then carefully push it
forward.
☑ The cover audibly snaps into place.
3. Fasten the two screws (M5 x 8) from the scope of
delivery on the right and left sides (TX25, tightening
torque: 2.2±0.2Nm).
