5 Mounting
SMA Solar Technology AG
Operating manualEVC22-3AC-20-BE-en-1032
☐ If multiple products are mounted in areas with high ambient temperatures, increase the
clearances between the products and ensure sufficient fresh-air supply.

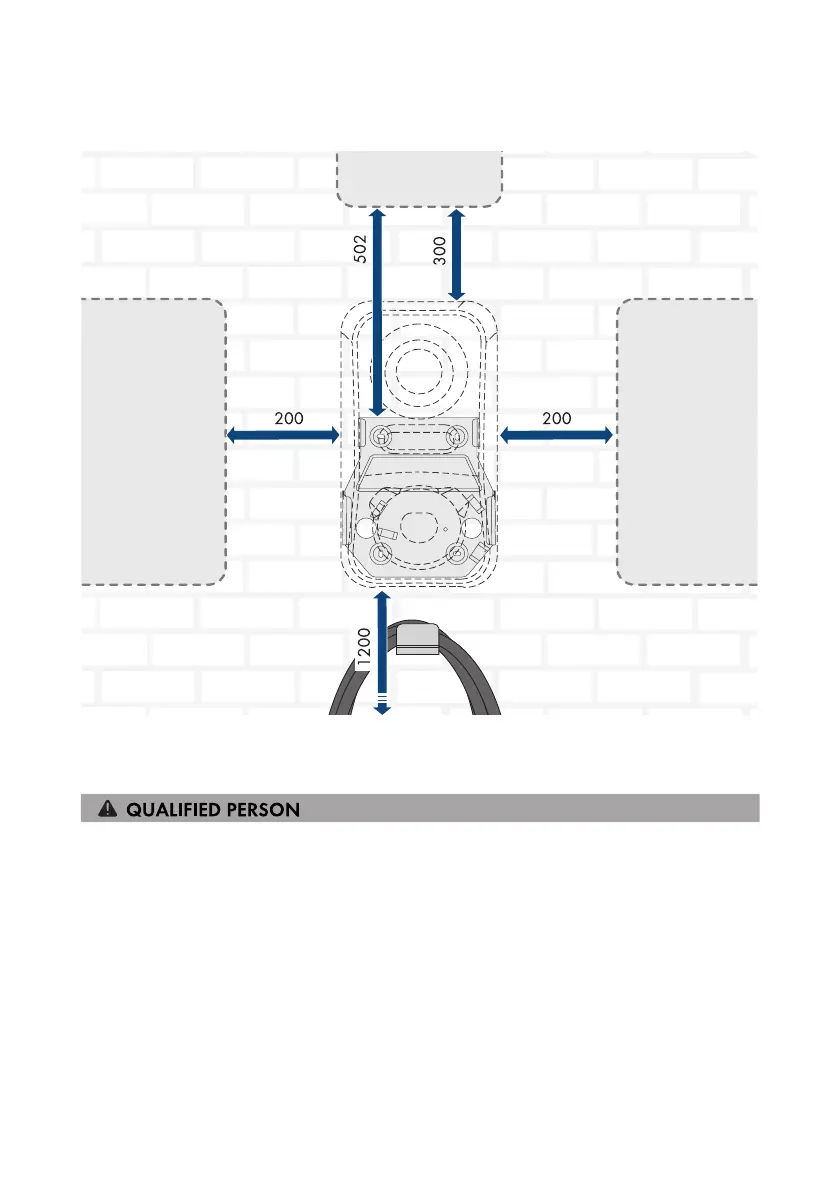

Figure 9: Recommended clearances (Dimensions in mm)
5.2 Wall Mounting
Requirements (not included in the scope of delivery):
– Prior to installing the wall mounting bracket, consider possible cable routing
– Four screws (6 mm diameter) suitable for the support surface and the weight of the
charging station
– 4 washers suitable for the screws
– Where necessary, 4 screw anchors suitable for the support surface and the screws
