5 Mounting
SMA Solar Technology AG
Operating manual EVC22-3AC-20-BE-en-10 31

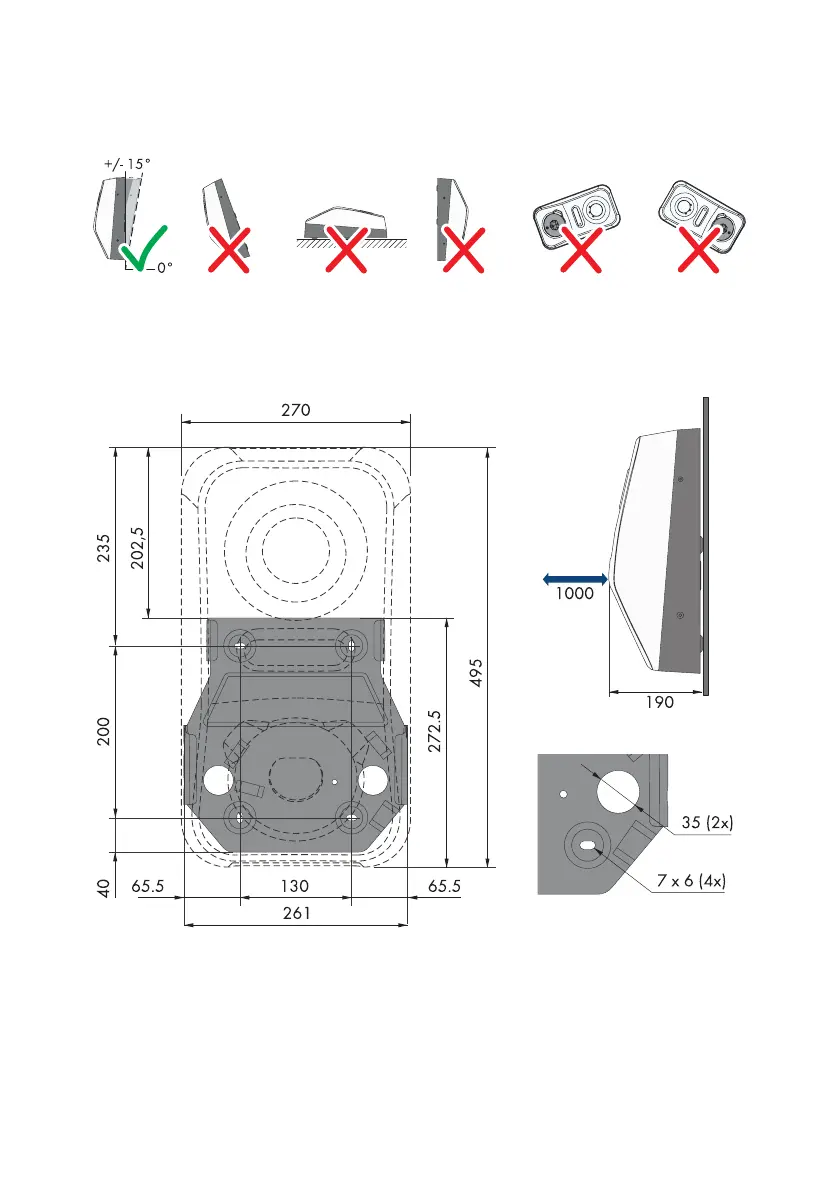

5.1.2 Permitted and prohibited mounting positions
Figure 7: Permitted and prohibited mounting positions
5.1.3 Dimensions for mounting
Figure 8: Position of the anchoring points (Dimensions in mm)
5.1.4 Recommended clearances for mounting
Requirements:
☐ Recommended distances to walls, other devices and objects should be maintained.
