5 Mounting
SMA Solar Technology AG
Operating manual EVC22-3AC-20-BE-en-10 37

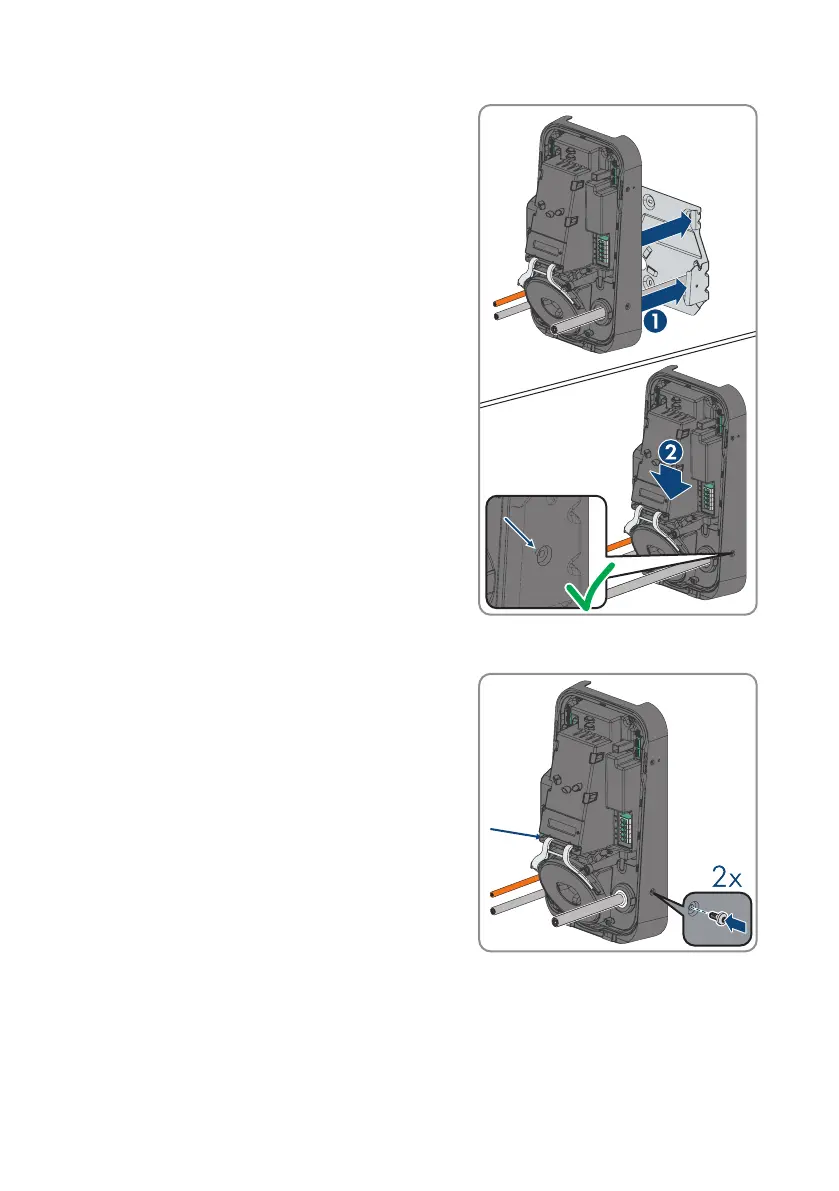

15. Place the enclosure horizontally on the wall mount
and press it downward lightly.
16. Make sure that the charging station is securely attached. The charging station is correctly
hooked in when the indentations in the wall mounting bracket and the mounting tab line up.
17. Secure the enclosure on both sides with a flanged
pan head screw (M5x12) provided. To do so, insert
screws into the screw holes on the left and right
sides of the enclosure and tighten them (TX25,
torque: 2.2Nm).
