SMA eCharger - Page 46

6 Electrical Connection
SMA Solar Technology AG
Operating manualEVC22-3AC-20-BE-en-1046
2. Dismantle the AC cable.
3. Strip off the conductor insulation by 18mm to 20mm each.
4. If necessary, provide each conductor with a bootlace ferrule.

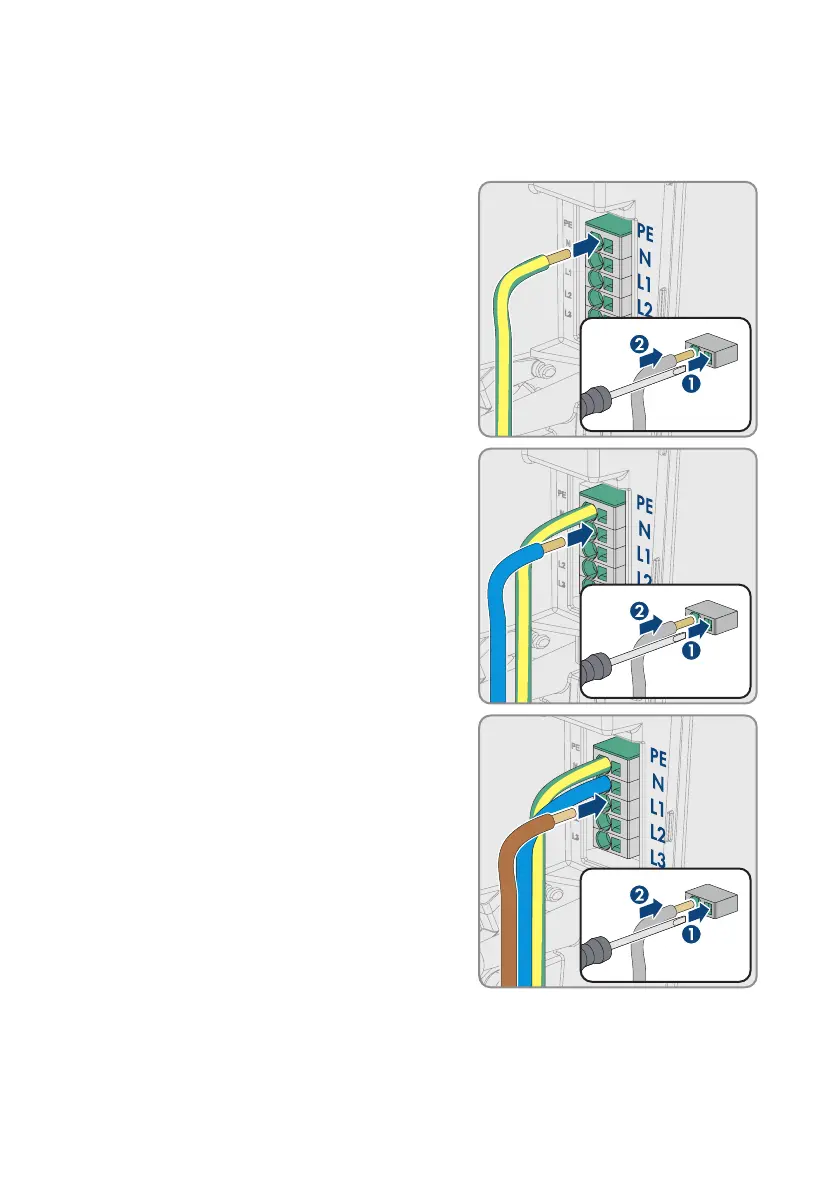

5. Connect the grounding conductor according to
the labeling.
6. Connect N according to the labeling.
7. Depending on the requirements, connect the
conductor L1 according to the labeling.
