IPv4inIPv6

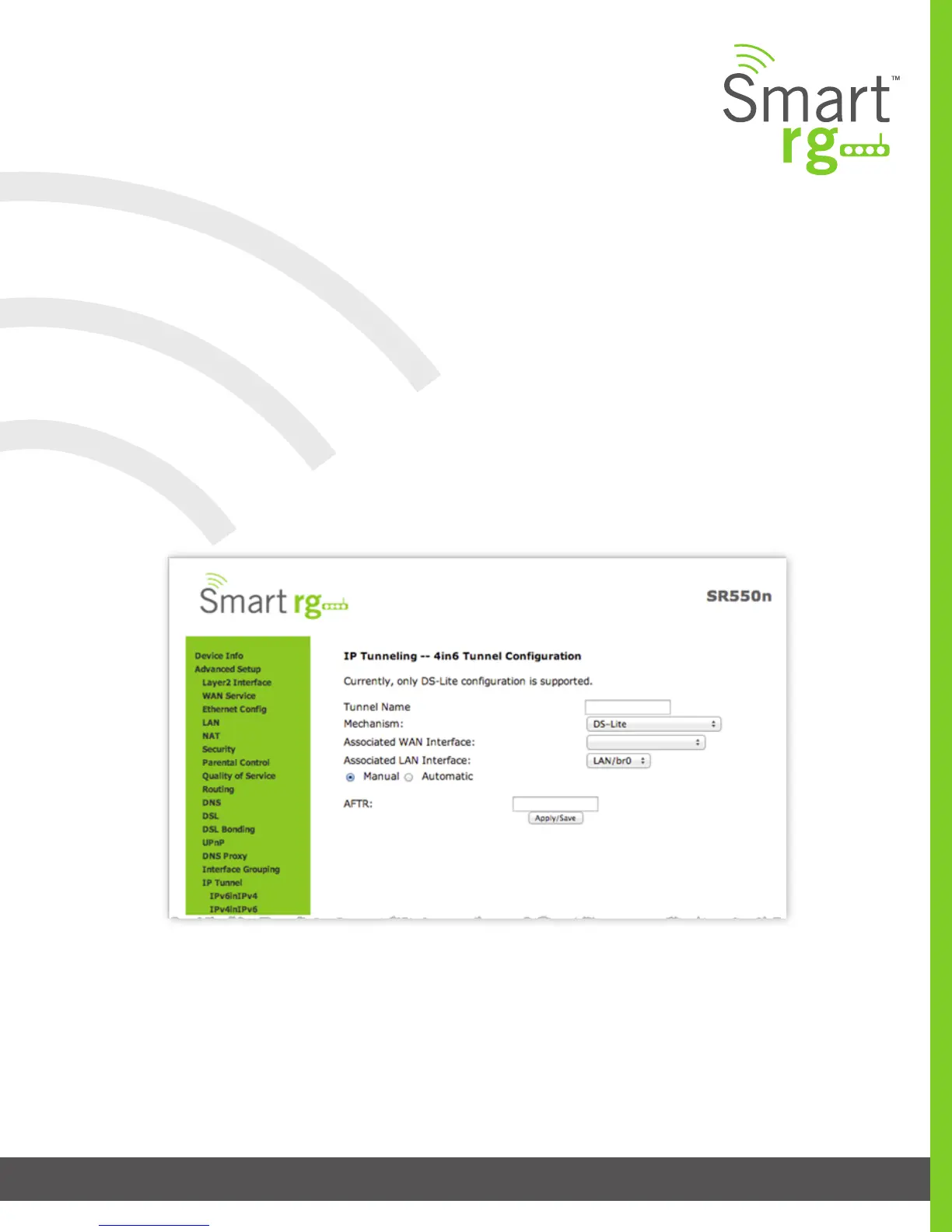

After selecting Advanced Setup -> IP Tunnel -> IPv4inIPv6 from the left navigation bar, click the Add button. The screen shown on
the next page will appear.
1. Enter a Tunnel Name
2. Currently, only the DS-Lite Mechanism is supported. Consult RFC6333 for further information regarding DS-Lite.
3. Select the appropriate LAN and WAN interfaces from the drop-down lists associated with the tunnel you wish to establish.
4. AFTR (Address Family Transition Router) may be congured automatically. Select the Manual radio button to specify
your desired value for elds.
Click Apply/Save to commit your changes.
