Connections:

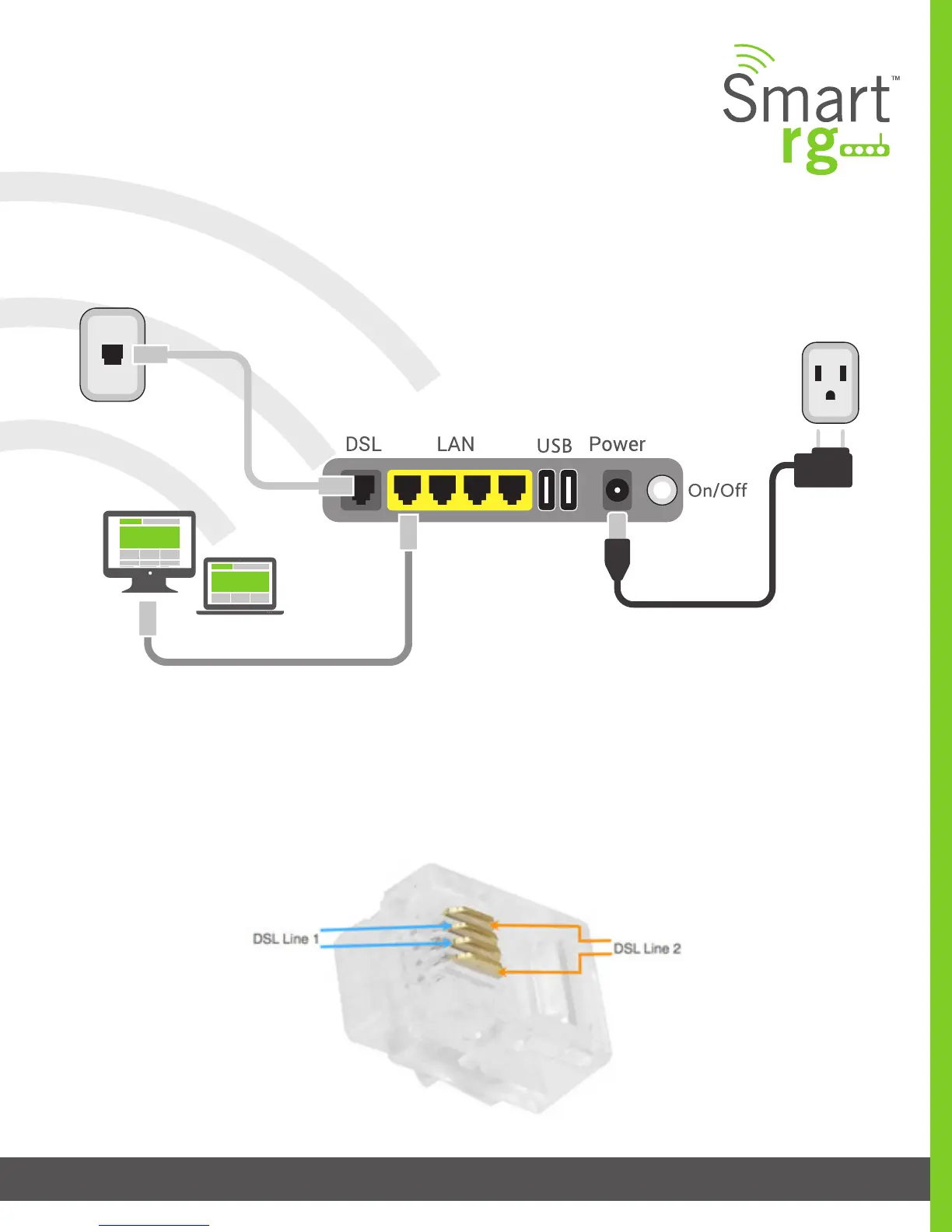

Below is a generic representation of a SmartRG gateway, however your specic model may have greater or fewer ports and con-
trols across the back of the unit. Refer to the Quick Start Guide enclosed with your gateway for specics regarding installation of
your particular model.
The ports depicted in this example are described as follows:
DSL
The grey, RJ12 port labeled DSL is specically intended for connection to an internet provider via a DSL (Digital Subscriber Line)
service. The center pair carries the rst DSL line. For models like the SR550n equipped with two DLS ports and bonded DSL capa-
bility, the outer pair carries the second line.
