Smiths Medical CADD-MS 3 User Manual

Technical Information 74
Accuracy test results
e following graphs are designed to show ow accuracy
of a pump against given time periods. All graphs were
plotted using a Smiths Medical 3 ml Medication Cartridge
(21-7450) and Unomedical Comfort
™
Infusion Set.

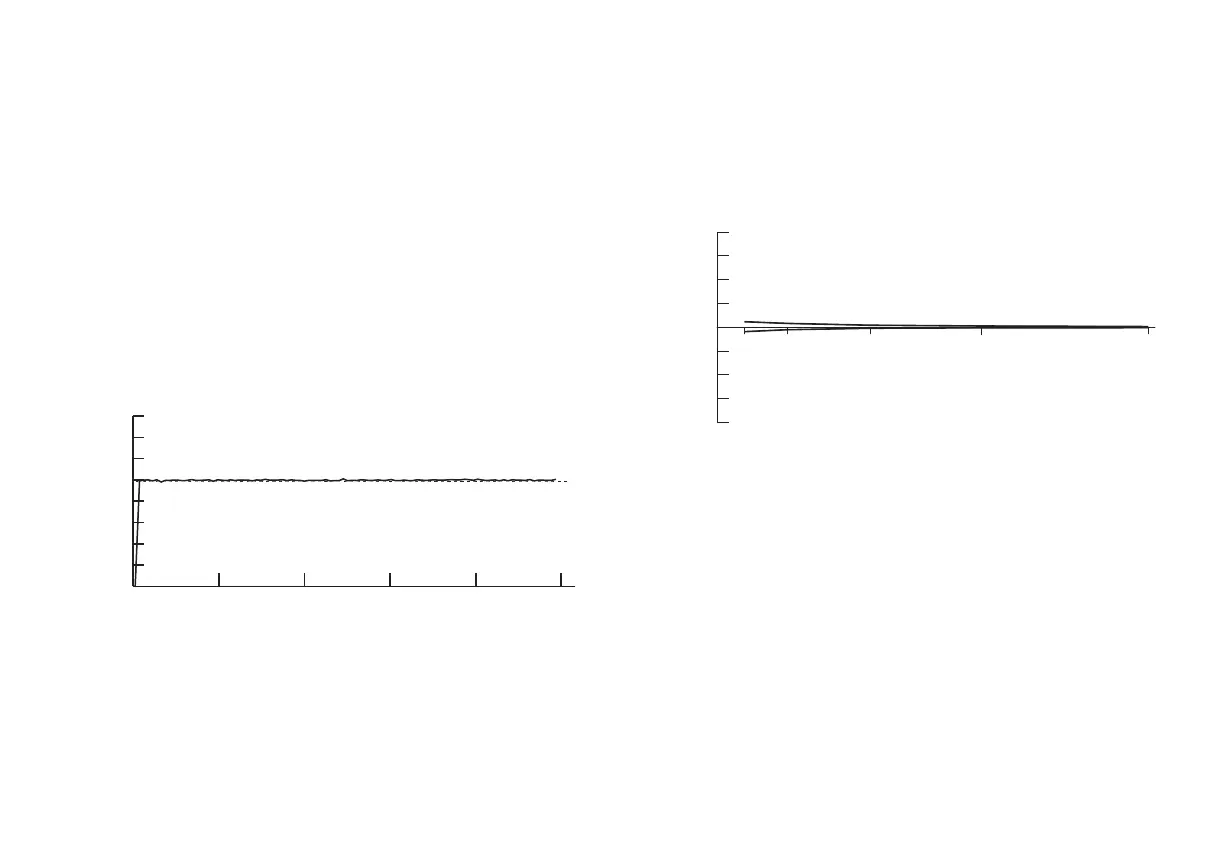

Flow rate from startup
Time interval: 15 seconds
Total time: 1455 minutes
Programmed rate: 0.1 ml/hr
Flow rate error
Programmed rate: 0.1 ml/hr
Average ow rate: 0.1000 ml/hr
Mean ow error: – 0.01%
CADD-MS3 Startup Curve
Flow
(ml/hr)
T (min)
0 300 600 900 1200 1500
0.00
0.02
0.04
0.06
0.08
0.10
0.12
0.14
0.16
T (min)
60 150
330 570
930
Trumpet Curve
Epmax
Epmin
% Error
of Flow
2005-Nov-28 D. Zurn
«Graph Trumpet MS3 100µl.eps»
-10.0
-7.5
-5.0
-2.5
0.0
2.5
5.0
7.5
10.0
