10.1.2.2. Network conguration
In the electrical network conguration menu, the user selects the type of network (three-phase, single-phase, etc.),
the nominal voltage, the network frequency, the direction of phase rotation and whether or not a voltage transformer
is used.
Conguration can only be done from the ISOM L-60

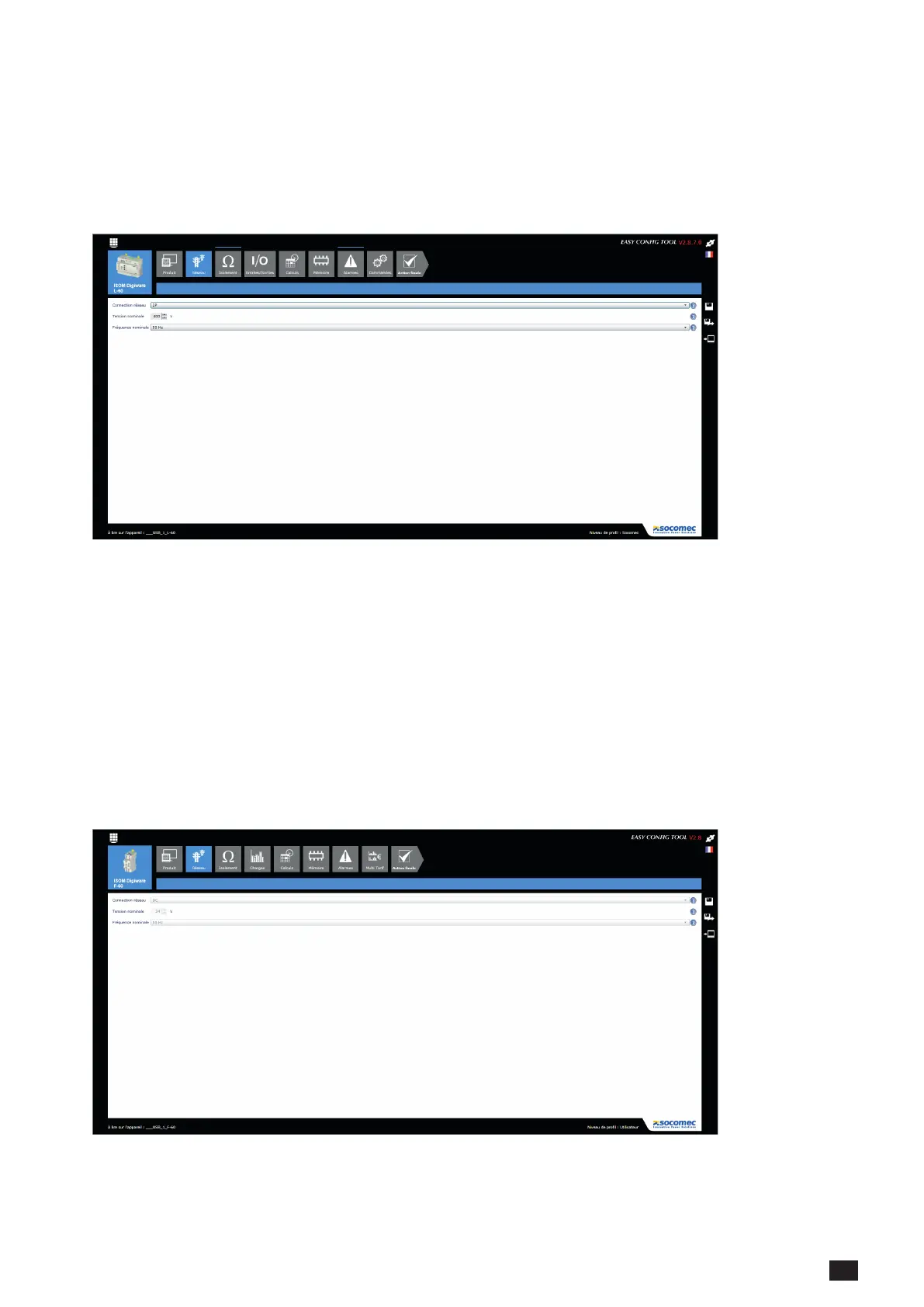

Example: three-phase network 400VAC:
On this screen you can congure the type of IMD connection:
Three-phase or two-phase g "2P"
Single-phase: 1P+N
Continuous g "DC"
The basic voltage, as well as the rated frequency of the network (50Hz, DC…)
On the F-60, you get one reminder of the initially set values from the L-60
Example of a 24 VDC continuous network:
