DDAAWW CCoonnttrrooll
33--3333
PPlluugg--IInn EEddiittoorr
Duality SE comes with a powerful Plug-in Editor located in
the console centre section. From here, plug-ins and
hardware inserts can be assigned, and plug-in parameters
can be edited.
PPlluugg--IInn EEddiittoorr DDiissppllaayy

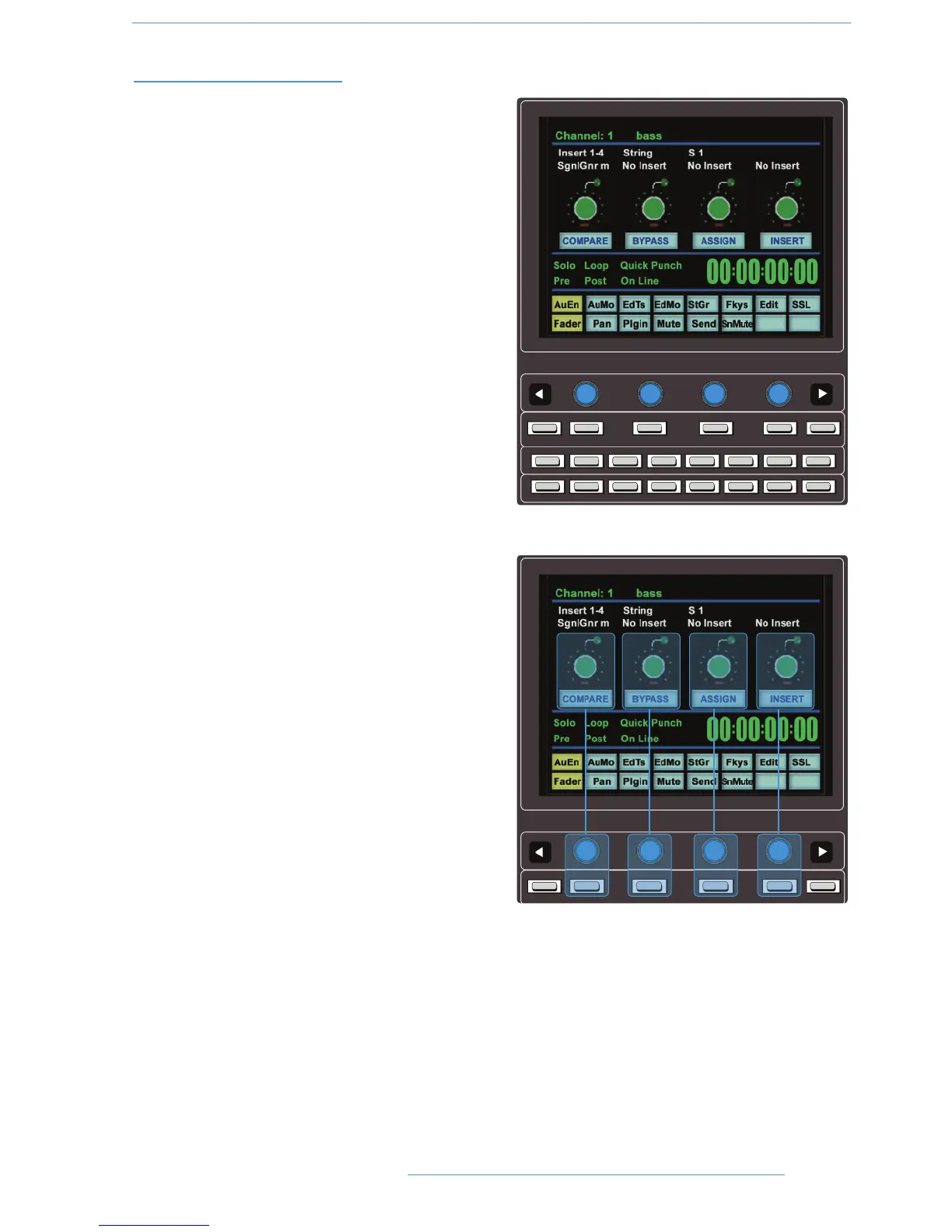

The Plug-In Editor uses a high resolution TFT display, four
D-pots and four soft buttons to control the parameters of
any plug-in. The display is also used to show the position
and status of the DAW, and to provide access to a range of
paged menus.
The currently selected EDIT channel name is displayed at
the top of the screen. Below are the plug-in control
displays followed by transport status displays and a
timecode display. At the foot of the screen are two rows
of soft key menu selections
PPlluugg--IInn EEddiittoorr CCoonnttrroollss
Controls for the display are located just below the screen
area. The four D-pots and associated in-line soft keys are
mapped to the corresponding controls on the display. The
D-pots also have push-push select switches that perform
various functions.
The display also shows information from the DAW at the
top of the editor display.
PPaaggiinngg BBuuttttoonnss
The left/right paging buttons either page through available
insert slots in INSERT mode, or plug-in parameters in
PARAMETER mode (see below).
The far left and far right buttons directly below the D-pots
provide a Page Down and Page Up facility respectively.
1 2 3 4
1
2
3 4
DDuuaalliittyy SSEE OOppeerraattoorr’’ss MMaannuuaall
