The word oscillator is a slight misnomer in this case, as the console actually
provides a comprehensive tone and pink noise generator!

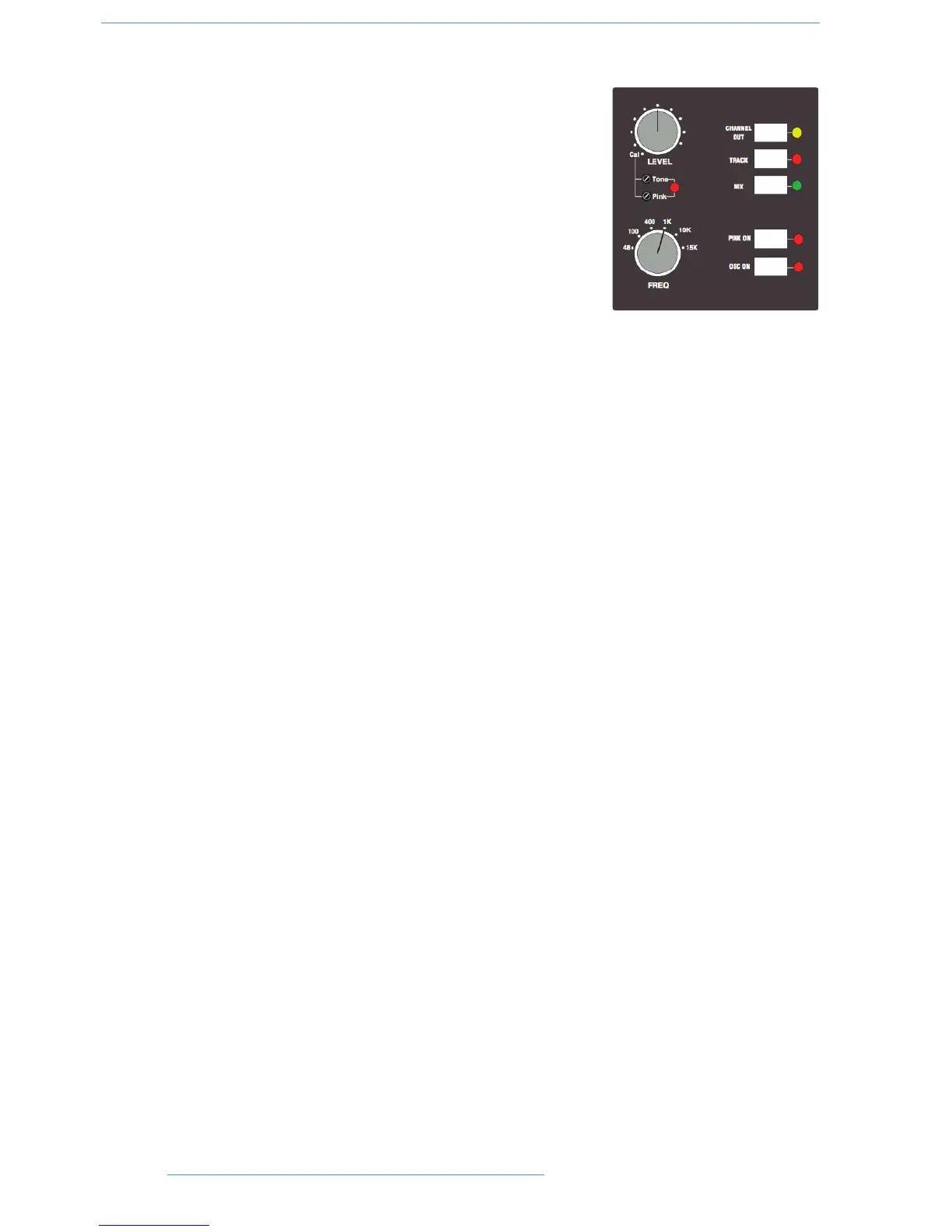

The ‘Oscillator’ section (see right), located just above the DAW control TFT
screen, contains controls for frequency, level and routing of tone or pink noise
to the Main Mix and Track bus outputs and to the monitor outputs for use in
monitor calibration.
OSC ON — Activates the oscillator output (surprise, surprise!). It’s good
practice to turn the oscillator off when recording, to prevent any accidental
routing to desk outputs.
PINK ON — Switches the output from tone to pink noise. Note that the pink noise level can only be adjusted
using the Pink ‘Cal’ preset.
The LEVEL control adjusts the level of the tone generator from -25dBu to +20dBu. When fully anticlockwise, a
preset ‘Cal’ level is selected that can be calibrated using the multiturn preset located below the level control; a red
LED lights to show when the level control is in the calibrated position. When OSC ON is selected, the rotary
FREQ switch provides six preset frequencies.
The oscillator may be routed to the Main MIX busses, the TRACK busses and the CHANNEL OUT
(individually or simultaneously).
The oscillator output is also available on an XLR on the centre section connector panel.
