MMoonniittoorriinngg

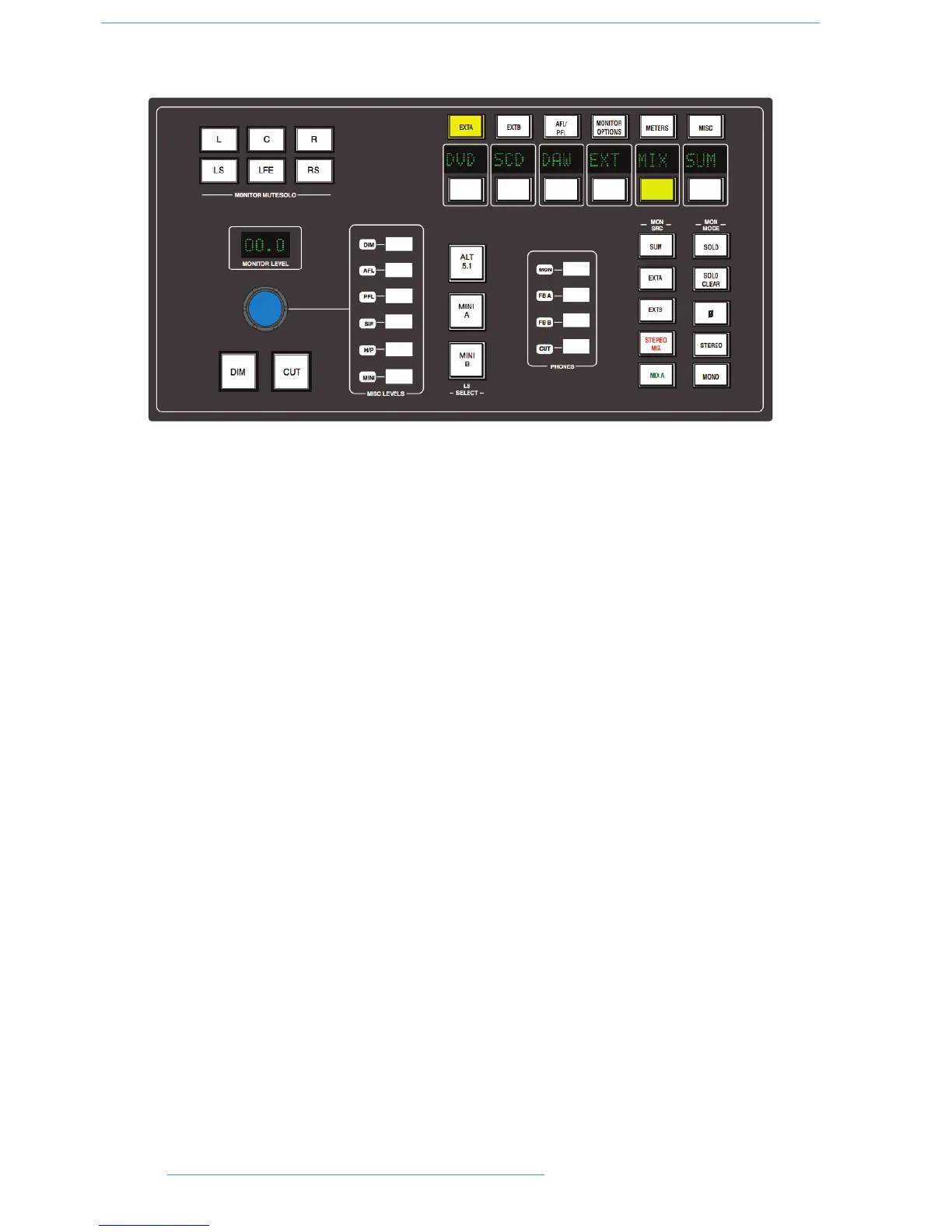

The large knob below the ‘MONITOR LEVEL’ display normally sets the level of the main control room monitors,
according to the monitoring standard selected in the SSL / Misc / Setup menu – See Monitor Level Display
and Calibrated listening level. The column of six buttons to the right enables this control to be used for the
named alternative functions.
You will be monitoring on whichever set of speakers is selected from the ‘LS SELECT’ group: the Main 5.1 speakers
(‘Main A’ — the default with no buttons selected), ALT 5.1 (‘Main B’), MINI A or MINI B.
The loudspeakers are fed from whatever source has been selected in the ‘MON SRC’ group of buttons. The
alternatives include the MIX A bus, the stereo downmix (STEREO MIX), and two external source selectors,
EXT A and EXT B. Sources will be intercancelling unless the SUM button is selected. All sources to the
monitoring are stereo except those brought in via the EXT A monitor source selector (see below).
The STEREO button folds down the 5.1 inputs to the monitor path via a 5-2 gain-compensated matrix (which also
provides the Mon feed to the foldback outputs), and feeds the result to left and right monitor outputs. MONO
can be selected with or without STEREO and sums the left and right monitor busses, feeding the result equally
to the left and right monitor outputs.
The Ø button precedes the MONO button and reverses the phase of the left monitor feed, providing a quick way
of checking for any phase anomalies in a stereo mix. If MONO is active, selecting the Ø button allows the difference
(L - R or the ‘S’ signal) to be monitored instead of the L + R sum.
The SOLO button turns the monitor cut buttons (see below) into monitor solo buttons. The SOLO CLEAR
button lights when any channel SOLO, S/Ch LSTN, AFL, or centre section AFL or MONITOR SOLO button
is pressed. Press SOLO CLEAR to cancel any Solo/AFL/PFL function.
22--2244
CCoonnssoollee OOppeerraattiioonnss
DDuuaalliittyy SSEE OOppeerraattoorr’’ss MMaannuuaall
