MMaasstteerr FFaaddeerr
The master fader can be selected to control the stereo Mix A, B, C busses or the 5.1 mix
bus via the main bus select matrix (see previous page). The fader can control the level of all
three stereo busses simultaneously but can only set the level for one bus at a time. The fader
uses a 36-bit, Hi-Resolution MDAC.

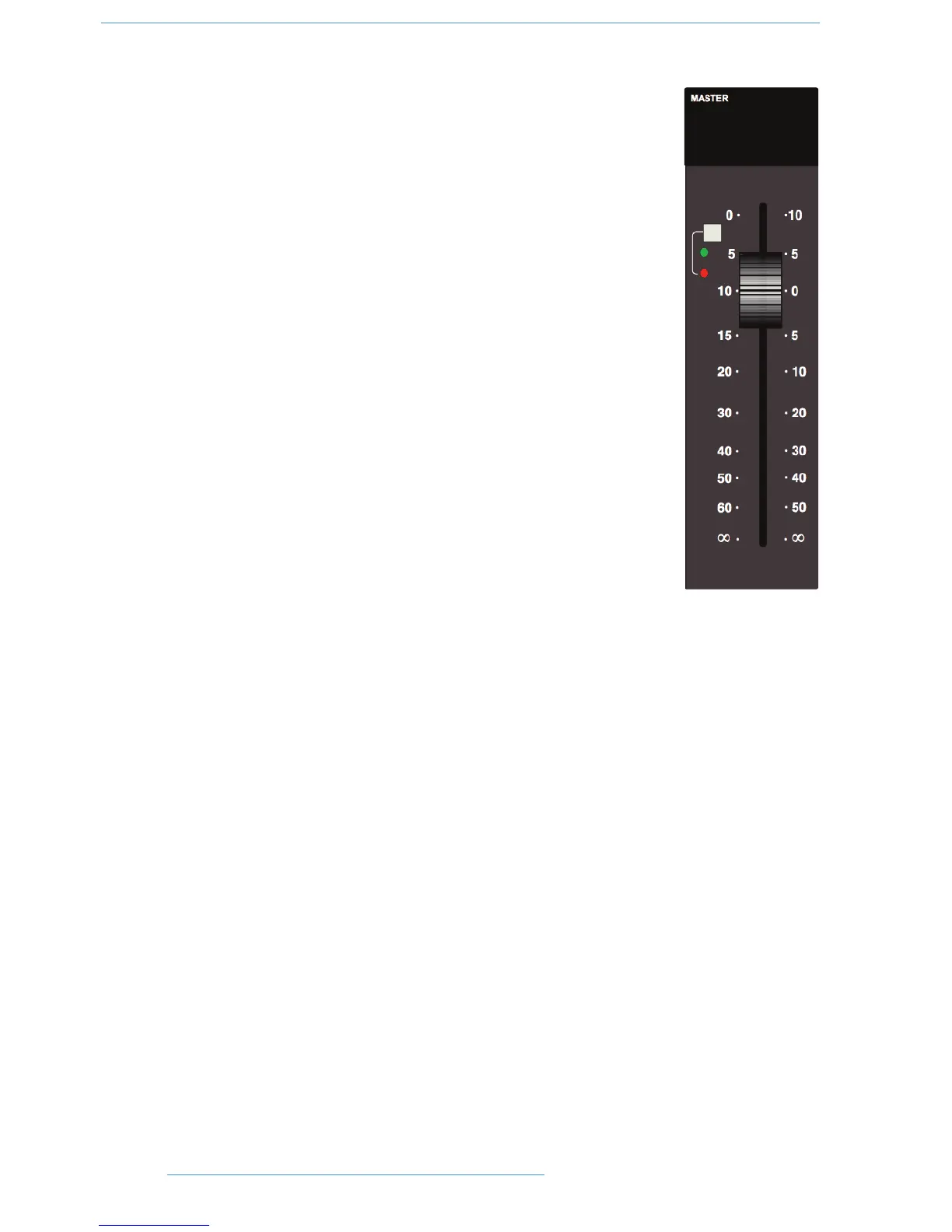

The fader is provided with two scales. The one on the left is the normal scale; the one on
the right is for use with the +10dB function selected via the main bus select matrix (see
previous page).
The automation status button and LEDs fitted on this fader are used with the optional
automation system.
Following the injection of talkback and tone (see later), the main output busses feed
D-connectors on the centre section connector panel.
All the main mix busses are provided with LCD metering above the centre section. In
addition, the stereo Mix A bus can be metered on the centre section VU meters.
