TTrraacckk BBuuss MMaasstteerr CCoonnttrroollss

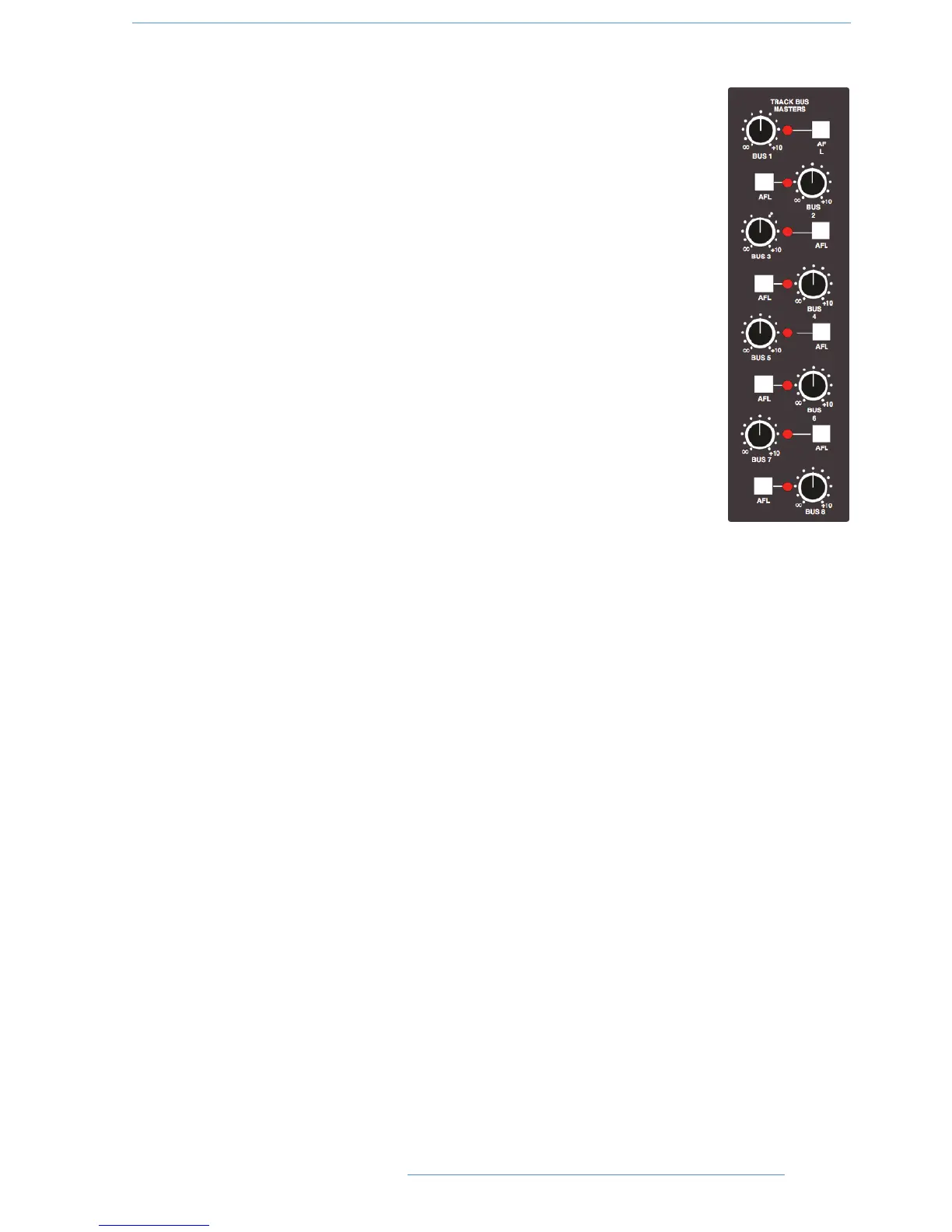

The output level of the console’s 24 mono Track busses is set by a group of rotary controls
in the upper right of the centre section (see left). They all have 10dB of gain when turned fully
clockwise; an indent at the ‘12 o’clock’ position corresponds to 0dB gain. Following level
control, the bus outputs can be injected with tone (oscillator TRACK button) and talkback
(talkback SLATE button) before being fed to a D-connector on the centre section connector
panel.
An AFL function (post tone and talkback inject) is provided for each bus. The AFL signal is
intelligently assigned to left and right AFL busses. Selecting AFL on a single Track bus output
will route signal to both left and right AFL busses. Selecting AFL on odd and even numbered
Track bus outputs will route the odd numbered output to the left AFL bus and the even
numbered output to the right AFL bus.
A set of LCD bargraph meters in the centre section are dedicated to metering the bus
outputs.
