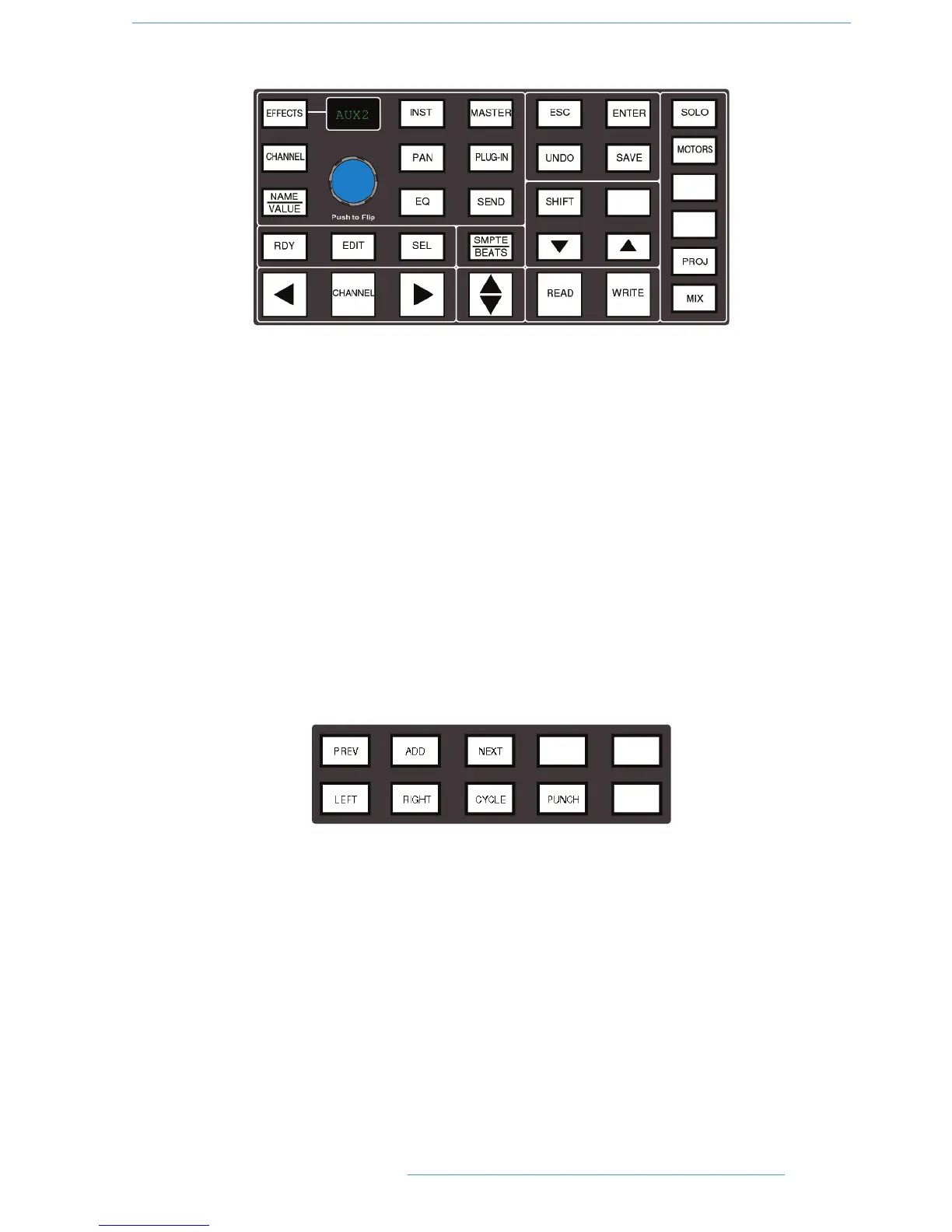

Duality SE Nuendo Control Button Layout
The majority of Nuendo or Cubase functions are controlled via dedicated buttons, with virtually no reliance on the
8x8 menu buttons located beneath the TFT screen. Full details are available in the Mackie Control manual, which is
available from the Nuendo download site.
When compared to the HUI protocol front panel, the major differences here are the new control set for assigning
processing parameters to the D-pots. Up and down page buttons for D-pot parameters are located within the Shift
button block. The rotary encoder will also output page up/down commands when turned left or right.
RDY and SEL control the function of the channel SEL buttons as with the HUI interface. The EDIT button is
used to open editing windows in Nuendo or Cubase for the current selection. Pressing EDIT together with SHIFT
will close an active window.
CHANNEL is unchanged and assigns Duality SE’s channel gain element or DAW channel to the D-pot according
to the state of the Console Focus button. The encoder switch is used to ‘flip’ parameters onto the faders as before
but includes all processing parameters, not just send levels.
The Transport Control buttons are assigned to related transport functions as with the HUI interface:
Only the CYCLE and PUNCH functions have tallies.
33--5511
DDAAWW CCoonnttrrooll
DDuuaalliittyy SSEE OOppeerraattoorr’’ss MMaannuuaall
