TThhee SSoonnaarr TTeemmppllaattee
Duality SE emulates a Mackie Control (MCU), plus additional Logic XT fader expanders as required. The Control
Surface setup menu is located in the Sonar Options menu:

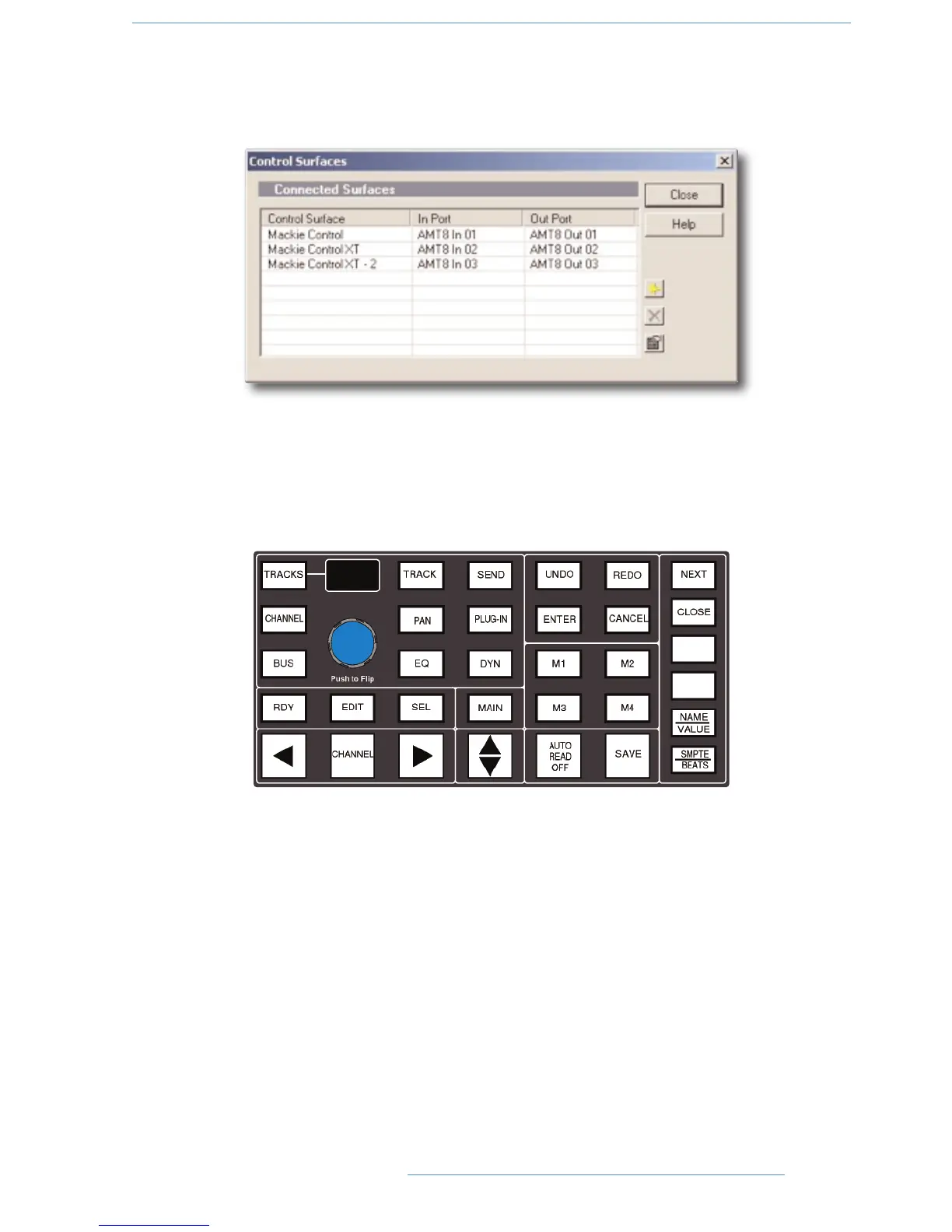

To set up the correct mapping of Duality SE faders to DAW channels, select Mackie Control from the Tools menu
to access the Properties page and the Configure Layout option. Full online operational documentation for the
Mackie Control and Expander (XT) functions can be accessed via the PC keyboard F1 key when the Control Surface
Properties dialogue is open.
Duality SE’s Sonar Control Button Layout
The majority of functions are controlled via dedicated buttons, with less reliance than the HUI version on the 8x8
menu button matrix located beneath the screen. The main differences when compared to the HUI front panel are
as follows:
Different function grouping to assign parameters to the Channel D-pots. CHANNEL is unchanged and assigns
Duality SE’s channel gain element or DAW channel to the D-pot according to the state of the Console Focus button.
The encoder switch is used to ‘flip’ parameters onto the faders as before, but includes all processing parameters,
not just send levels. Two ‘Flip’ modes are available, Duplicate or Exchange, selected via a single or double press on
the encoder switch.
For the Sonar template, as with the buttons that control the function of the channel SEL button with the HUI
protocol, SEL and RDY control whether the channel SEL button sends the SEL and REC/RDY MIDI codes. EDIT
is a dedicated function equivalent to the MCU EDIT/GLOBAL function located in the FADER BANKS section. The
display above the encoder shows the two-character plus decimal point Assignment window from the MCU.
33--5533
DDAAWW CCoonnttrrooll
DDuuaalliittyy SSEE OOppeerraattoorr’’ss MMaannuuaall
