94 Chapter 4: Measurements and Calculations
Meas. & Calcs

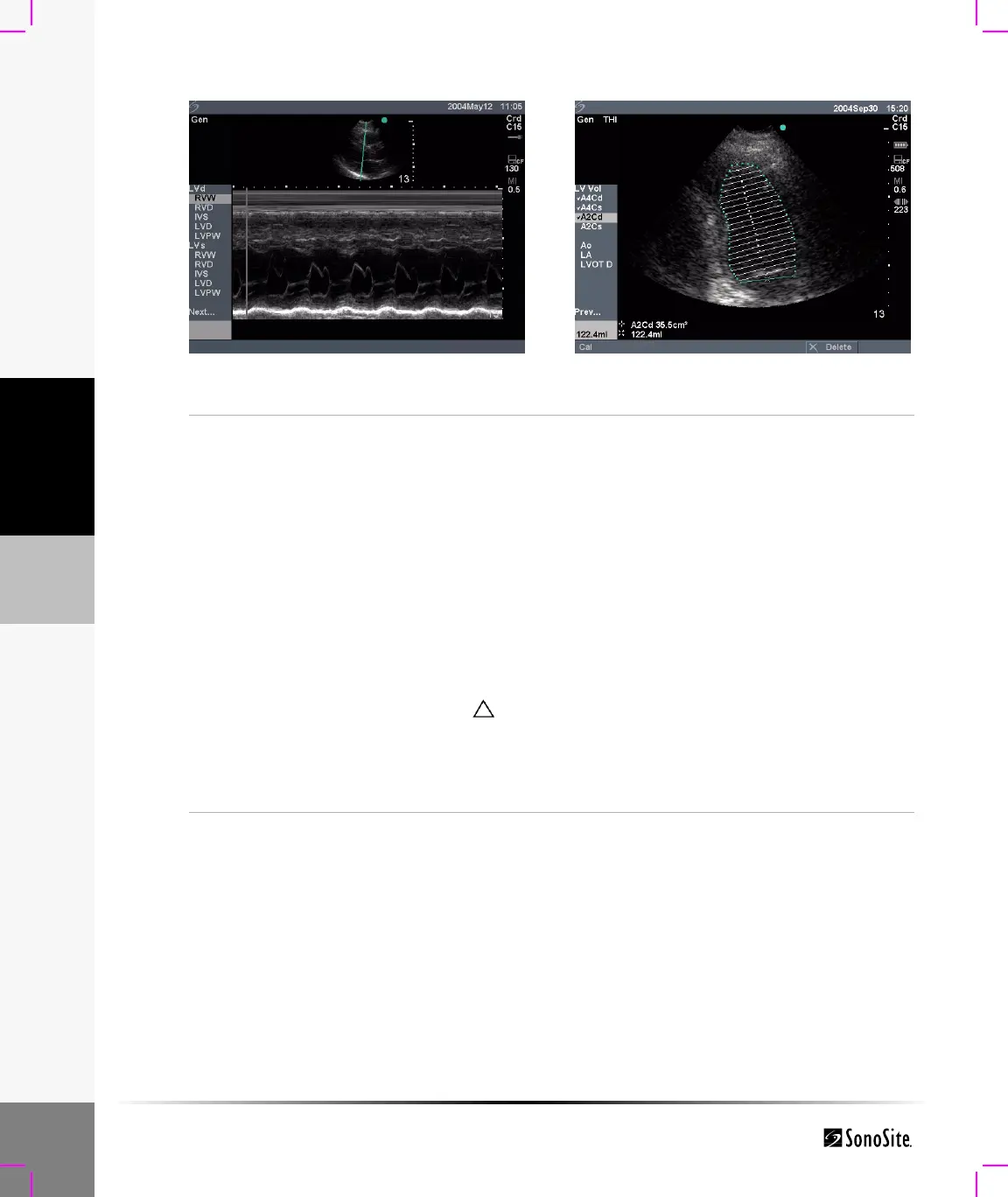

Figure 12 Cardiac M Mode and LV Volume
Cardiac
Calculation
(2D and M Mode)
1 On a frozen 2D image or M Mode trace, press the Calcs key.
2 Highlight the desired calculation package and press the Select key.
3 Select the measurement and press the Select key.
Note: As you advance through the LV measurements, the top caliper will
automatically reposition to help you proceed with the next selected
measurement.
4 Perform the measurement.
5 Select Save from the on-screen menu, or press the Enter key to save
the measurement to the patient report.
The saved measurement is displayed at the bottom of the calculation
menu and a check mark is put in front of the measurement.
If desired, press the Save key to save the image with the
measurements displayed.
Note: The key or Save Key can be assigned in system setup to save
calculations to the report. See “Delta Key” on page 32 or “Save Key” on
page 39.
6 Highlight the next measurement and press the Select key.
7 Repeat these steps until all measurements have been performed.
To Next Page
