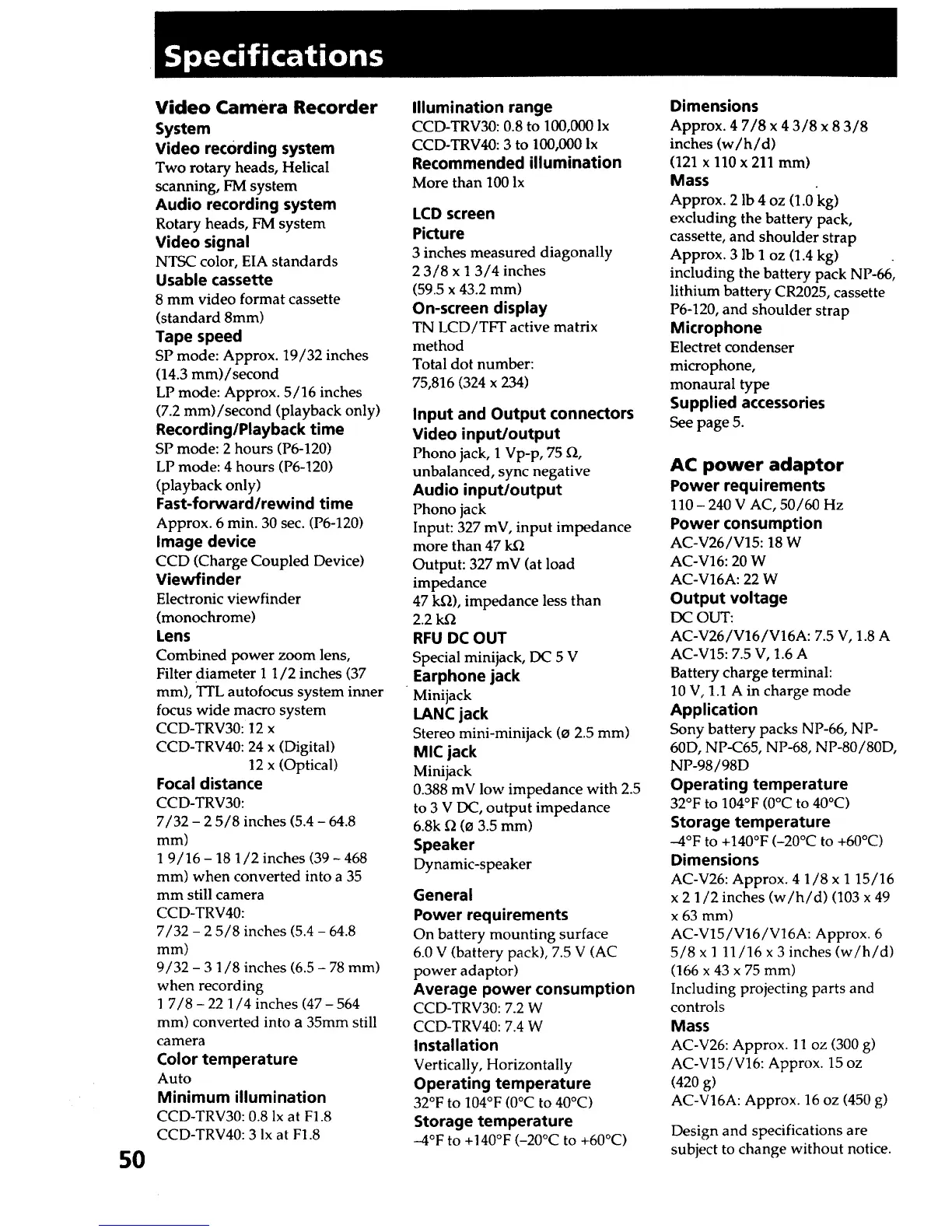

5O
Video Camera Recorder
System
Video recording system
Two rotary heads,Helical
scanning, FM system
Audio recording system
Rotary heads, FM system
Video signal
NTSC color, EIA standards
Usable cassette
8 mm video format cassette
(standard 8mm)
Tape speed
SP mode: Approx. 19/32 inches
(14.3 mm)/second
LP mode: Approx. 5/16 inches
(7.2 mm)/second (playback only)
Recording/Playback time
SP mode: 2 hours (P6-120)
LP mode: 4 hours (P6-120)
(playback only)
Fast-forward/rewind time
Approx. 6 min. 30 sec. (P6-120)
Image device
CCD (Charge Coupled Device)
Viewfinder
Electronic viewfinder
(monochrome)
Lens
Combined power zoom lens,
Filter diameter 1 1/2 inches (37
mm), TTL autofocus system in.ner
focus wide macro system
CCD-TRV30:12 x
CCD-TRV40:24 x (Digital)
12 x (Optical)
Focal distance
CCD-TRV30:
7/32 - 2 5/8 inches (5.4 - 64.8
ram)
1 9/16- 18 1/2 inches (39- 468
mm) when converted into a 35
mm still camera
CCD-TRV40:
7/32 - 2 5/8 inches (5.4 - 64.8
mm)
9/32 - 3 1/8 inches (6.5 - 78 mm)
when recording
1 7/8 - 22 1/4 inches (47 - 564
mm) converted into a 35mm still
camera
Color temperature
Auto
Minimum illumination
CCD-TRV30:0.8 Ix at F1.8
CCD-TRV40:3 Ix at F1.8
Illumination range
CCD-TRV30:0.8 to 100,000 Ix
CCD-TRV40:3 to 100,000 Ix
Recommended illumination
More than 100 Ix
LCD screen
3 inches measured diagonally
2 3/8 x 1 3/4 inches
(59.5 x 43.2 mm)
On-screen display
TN LCD/TFT active matrix
method
Total dot number:
75,816 (324 x 234)
Input and Output connectors
Video input/output
Phono jack, 1 Vp-p, 75 _,
unbalanced, sync negative
Audio input/output
Phono jack
Input: 327 mV, input impedance
more than 47 k.Q
Output: 327 mV (at load
impedance
47 kfl), impedance less than
2.2 k.Q
RFU DC OUT
Special minijack, DC 5 V
Earphone jack
Minijack
LANC jack
Stereo mini-minijack (o 2.5 mm)
MIC jack
Minijack
0.388 mV low impedance with 2.5
to 3 V DC, output impedance
6.8k fl (0 3.5 mm)
Speaker
Dynamic-speaker
General
Power requirements
On battery mounting surface
6.0 V (battery pack), 7.5 V (AC
power adaptor)
Average power consumption
CCD-TRV30:7.2 W
CCD-TRV40:7.4 W
Installation
Vertically, Horizontally
Operating temperature
32°F to 104°F (0°C to 40°C)
Storage temperature
-4°F to +140°F (-20°C to +60°C)
Dimensions
Approx. 4 7/8 x 4 3/8 x 8 3/8
inches (w/h/d)
(121 x 110 x 211 mm)
Mass
Approx. 2 Ib 4 oz (1.0 kg)
excluding the battery pack,
cassette, and shoulder strap
Approx. 3 lb 1 oz (1.4 kg)
including the battery pack NP-66,
lithium battery CR2025, cassette
P6-120, and shoulder strap
Microphone
Electret condenser
microphone,
monaural type
Supplied accessories
See page 5.
AC power adaptor
Power requirements
110 - 240 V AC, 50/60 Hz
Power consumption
AC-V26/V15:18 W
AC-V16:20 W
AC-V16A: 22 W
Output voltage
DC OUT:
AC-V26/V16/V16A: 7.5 V, 1.8 A
AC-V15:7.5 V, 1.6 A
Battery charge terminal:
10 V, 1.1 A in charge mode
Application
Sony battery packs NP-66, NP-
60D, NP-C65, NP-68, NP-80/80D,
NP-98/98D
Operating temperature
32°F to 104°F (0°C to 40°C)
Storage temperature
-4°F to +140°F (-20°C to +60°C)
Dimensions
AC-V26: Approx. 4 1/8 x 1 15/16
x 2 1/2 inches (w/h/d) (103 x 49
x 63 mm)
AC-V15/V16/V16A: Approx. 6
5/8 x I 11/16 x 3 inches (w/h/d)
(166 x 43 x 75 mm)
Including projecting parts and
controls
Mass
AC-V26: Approx. 11 oz (300 g)
AC-V15/V16: Approx. 15 oz
(420 g)
AC-V16A: Approx. 16 oz (450 g)
Design and specifications are
subject to change without notice.
