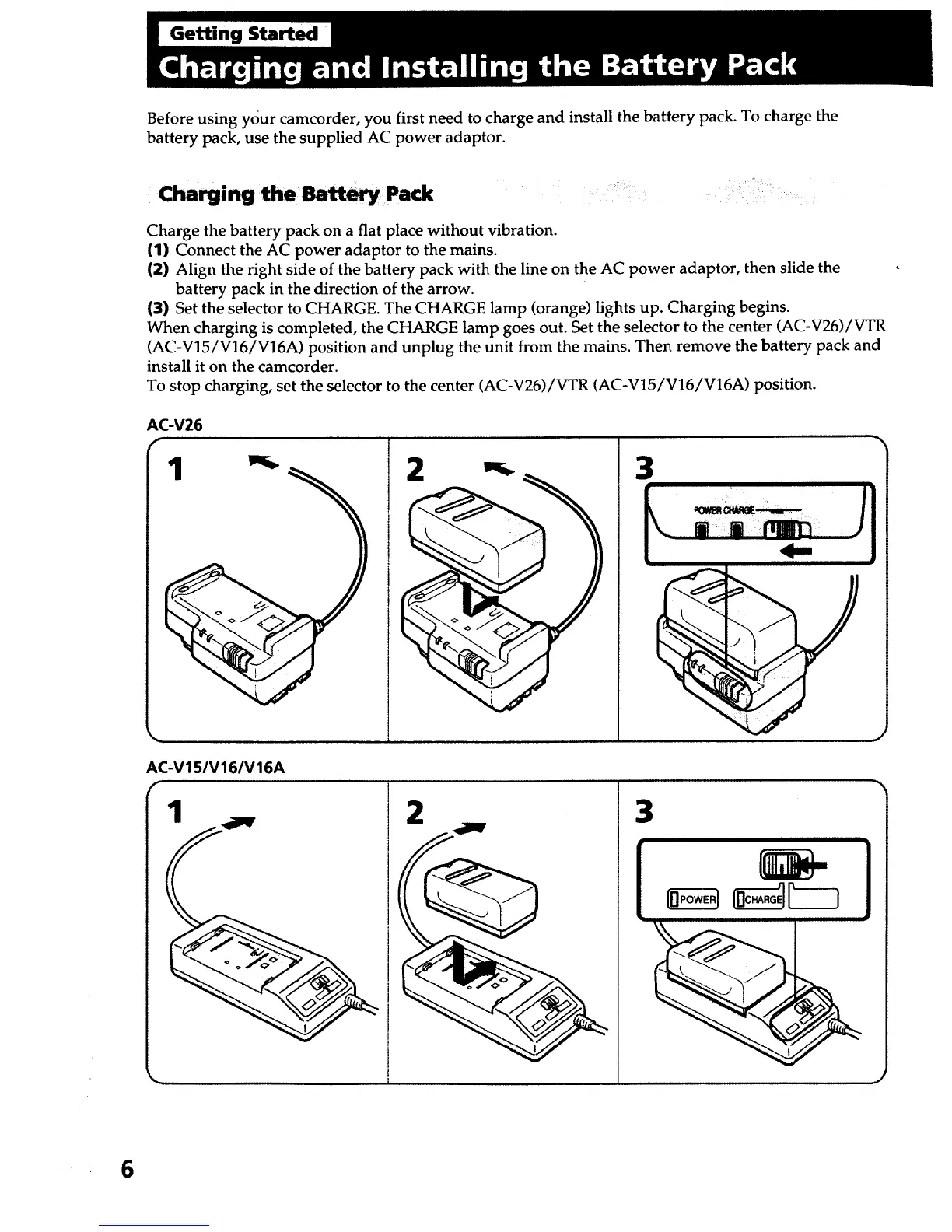

Getting Started
Before using your camcorder, you first need to charge and install the battery pack. To charge the
battery pack, use the supplied AC power adaptor.
Charging the Batte_ Pack
• iii_I i_ !_ _ ,_
Charge the battery pack on a flat place without vibration.
(1) Connect the AC power adaptor to the mains.
{2) Align the right side of the battery pack with the line on the AC power adaptor, then slide the
battery pack in the direction of the arrow.
(3) Set the selector to CHARGE. The CHARGE lamp (orange) lights up. Charging begins.
When charging is completed, the CHARGE lamp goes out. Set the selector to the center (AC-V26)/VTR
(AC-V15/V16/V16A) position and unplug the unit from the mains. Then remove the battery pack and
install it on the camcorder.
To stop charging, set the selector to the center (AC-V26)/VTR (AC-V15/V16/V16A) position.
AC-V26
2
3
AC-V15/V16/V16A
2 3
6
