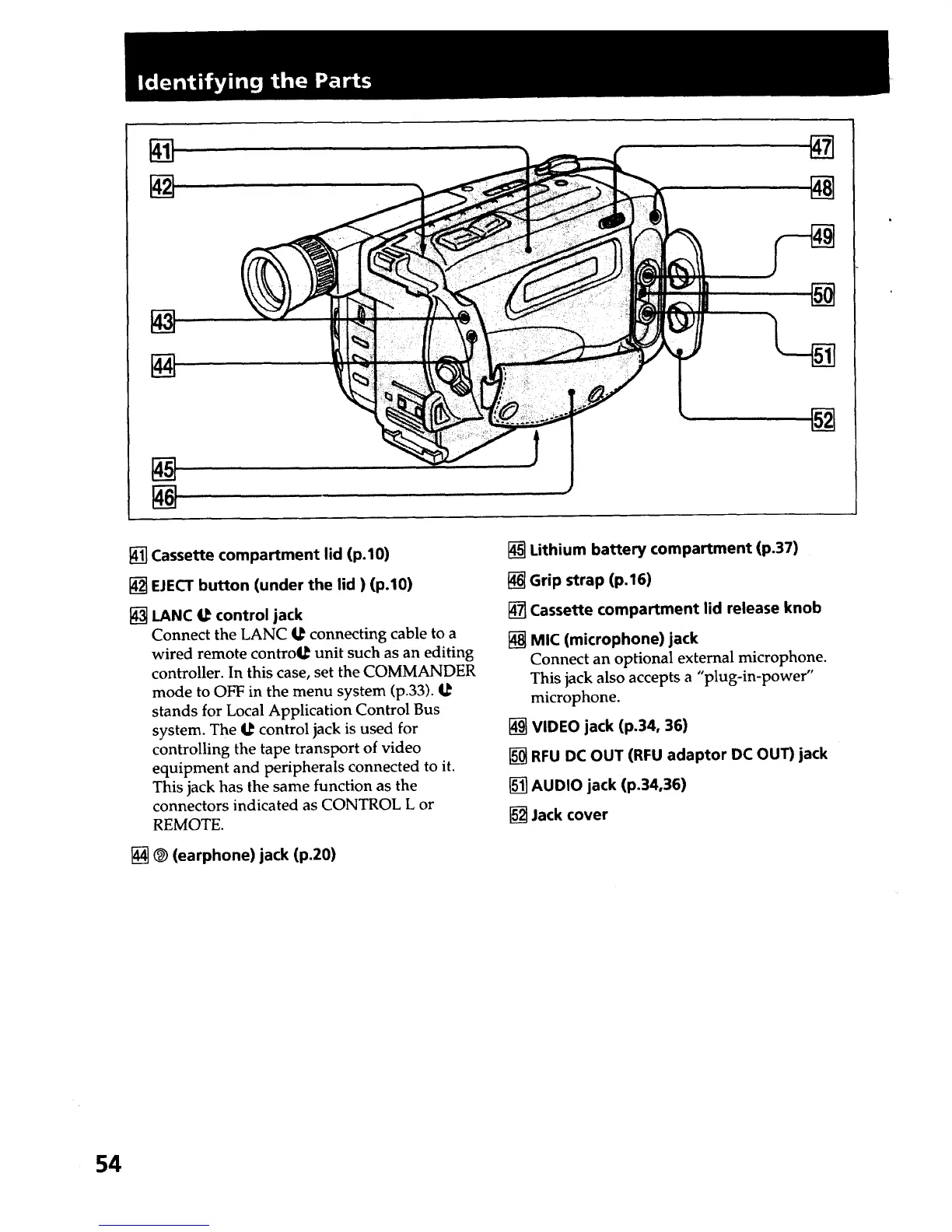

Cassette compartment lid (p.10)
EJECT button (under the lid ) (p.10)
LANC _ control jack
Connect the LANC t_ connecting cable to a
wired remote contro_ unit such as an editing
controller. In this case, set the COMMANDER
mode to OFF in the menu system (p.33).
stands for Local Application Control Bus
system. The _ control jack is used for
controlling the tape transport of video
equipment and peripherals connected to it.
This jack has the same function as the
connectors indicated as CONTROL L or
REMOTE.
[] _) (earphone) jack (p.20)
[] Lithium battery compartment (p.37)
[] Grip strap (p.16)
[] Cassette compartment lid release knob
[] MIC (microphone) jack
Connect an optional external microphone.
This jack also accepts a "plug-in-power"
microphone.
[] VIDEO jack (p.34, 36)
[] RFU DC OUT (RFU adaptor DC OUT) jack
[] AUDIO jack (p.34,36)
[] Jack cover
