Sony PS-LX300USB Operating Instructions

"

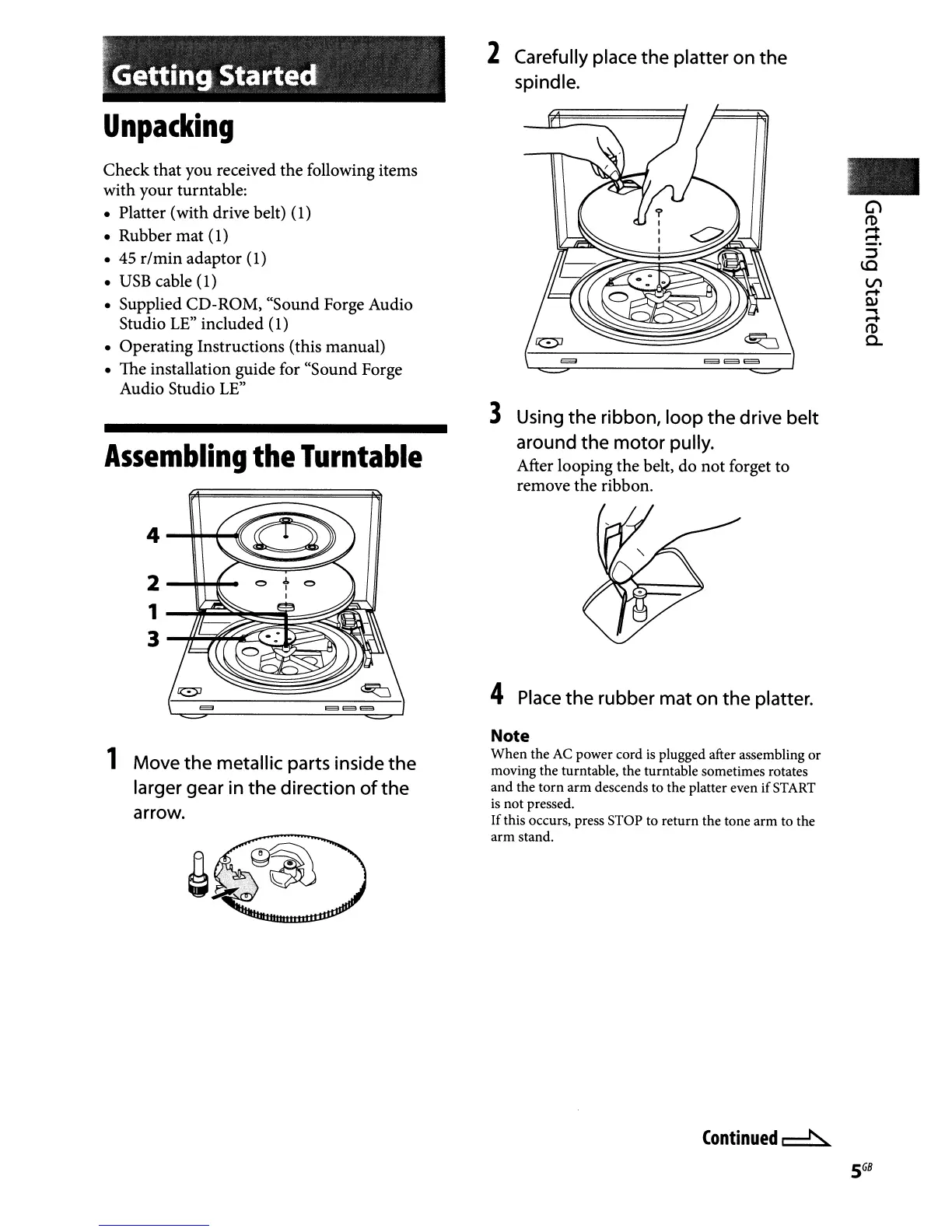

1Getting Started
Unpacking
Check that you received the following items
with your turntable:
• Platter (with drive belt) (1)
• Rubber mat
(1)
• 45 r/min adaptor (1)
•
USB cable (1)
• Supplied CD-ROM, "Sound Forge Audio
Studio LE" included (1)
• Operating Instructions (this manual)
• The installation guide for "Sound Forge
Audio Studio
LE"
Assembling the Turntable
2 -11++-
1,~~~m
3 --tt7ft~~~
1 Move the metallic parts inside the
larger
gear in the direction of the
arrow.
2 Carefully place the platter on the
spindle.
3 Using the ribbon, loop the drive belt
around the motor pully.
After looping the belt, do not forget to
remove the ribbon.
4 Place the rubber mat on the platter.
Note
When the AC power cord is plugged after assembling or
moving the turntable, the turntable sometimes rotates
and the torn arm descends to the platter even if
START
is not pressed.
Ifthis occurs, press STOP to return the tone arm to the
arm stand.
(ontinued~

Sony PS-LX300USB Specifications

General

Type	Belt-drive audio turntable
Interface	USB2.0, RCA
Operation	Automatic
Stylus type	mm
Belt material	Rubber
Plug and Play	Yes
Product color	Black, Silver
Wow & flutter	0.25 %
Nominal speeds	33 1/3, 45 RPM
Turntable size	295 mm
Stylus pressure	3.5 g
Pick-up arm type	S-Shape
Platter material	Aluminum
Pick-up arm length	195 mm
Signal-to-Noise Ratio (SNR)	50 dB
Cables included	USB
USB version	2.0
USB ports quantity	1
Playback formats	MP3
Power supply type	AC
AC adapter frequency	50 / 60 Hz
AC adapter input voltage	230 V
Power consumption (typical)	2 W
Package weight	4000 g
Compatible operating systems	- Windows XP Home Edition Service Pack 2 / XP Professional Service Pack 2\\r - Windows Vista Home Basic / Vista Home Premium / Vista Business / Vista Ultimate\\r - Windows 7 Home Premium / 7 Professional / 7 Ultimate

Weight and Dimensions

Depth	360 mm
Width	420 mm
Height	95 mm
Weight	3300 g
Product dimensions (WxHxD)	420 x 360 x 95 mm
