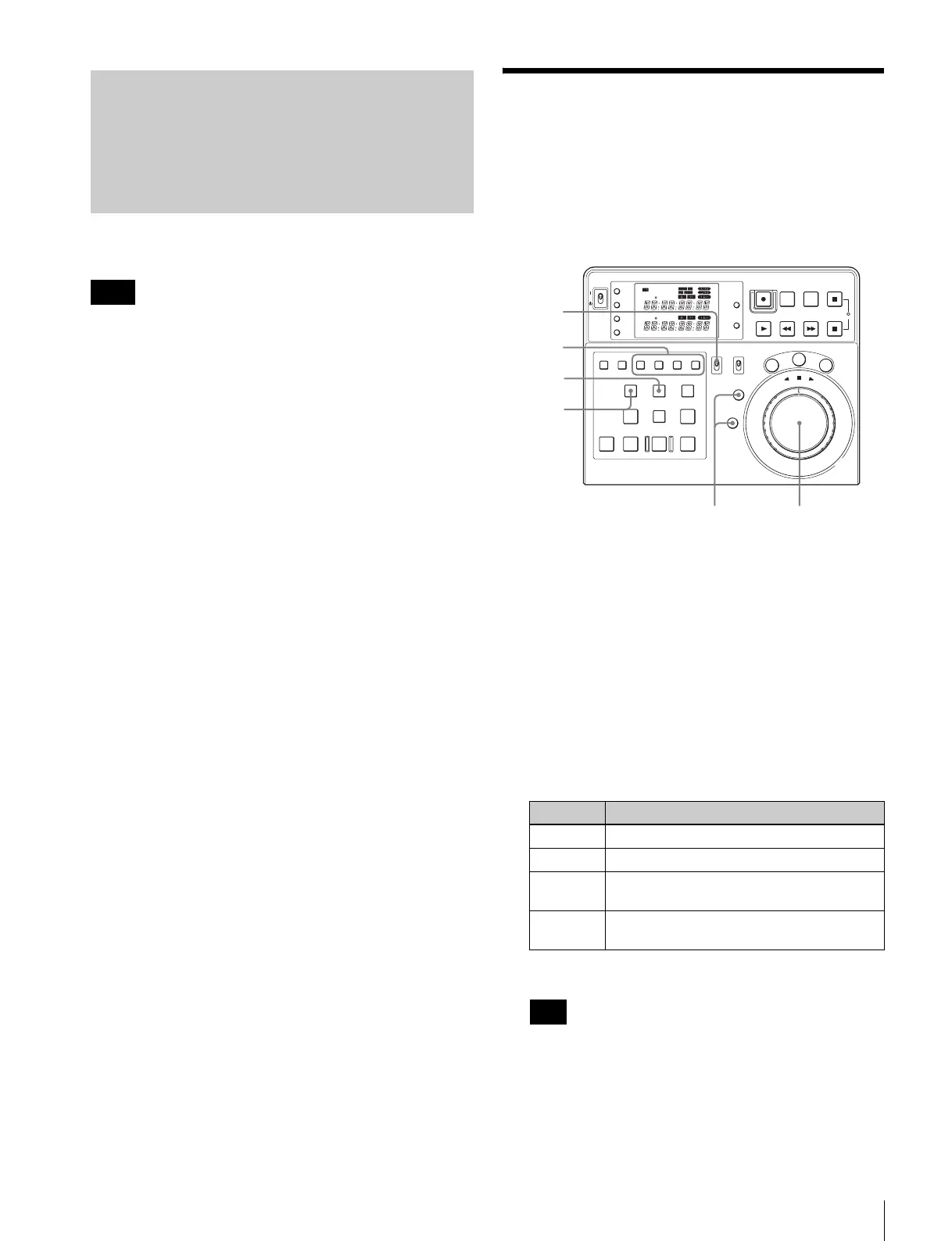

Using as a Video Process Controller
You can setup the video output signal of a player or a
recorder from the unit.
• Use one of the following models when you perform
video process control: HDW-2000 series, HDW-1800,
HDW-S280, MSW-2000 series, DVW-2000, PDW-
1500, PDW-HD1500 and PDW-F1600.
• You cannot perform editing operations while the unit is
in video process control mode.
• The settings are reset to those of the connected device
when you change the mode of the connected device from
remote to local.
Refer to the operating manual of the connected device.
• The setting of the connected device is displayed after the
power is turned on, the target to be adjusted is switched
or the item to be adjusted is switched.
When the unit cannot recognize the setting of the
connected device, “----” is displayed on the time data
display of the PLAYER (DEVICE 2) in the display
window. In this case, you cannot change the value. If the
setting of the connected device is outside the allowed
range, the value is replaced to the upper limit or lower
limit which the unit allows at the time the unit recognizes
the setting of the connected device.
• The items you can set depend on the device. You cannot
adjust all of the settings.
Using Video Process
Control with on SD
Device
1)
1)
Supported devices: DVW-2000, MSW-2000 series, PDW-1500
1 Set the EDITOR/REMOTE CONTROL switch to
EDITOR.
2 Press the TRIM– button simultaneously with the
PLAYER button to apply video process control to the
output of the player. Press the TRIM– button
simultaneously with the RECORDER button to apply
video process control to the output of the recorder.
3 Press one of the A1 to A4 buttons, according to the
output signal to be set up.
4 Change the value.
You can change the setup level in the range of ±10IRE,
you can also change the black level in the range of
±70 mV.
Using as a Video
Process
Controller
Notes
Output
A1 button Video level
A2 button Chroma level
A3 button Hue (525)
Chroma phase (625)
A4 button Setup level (525)
Black level (625)
Note
