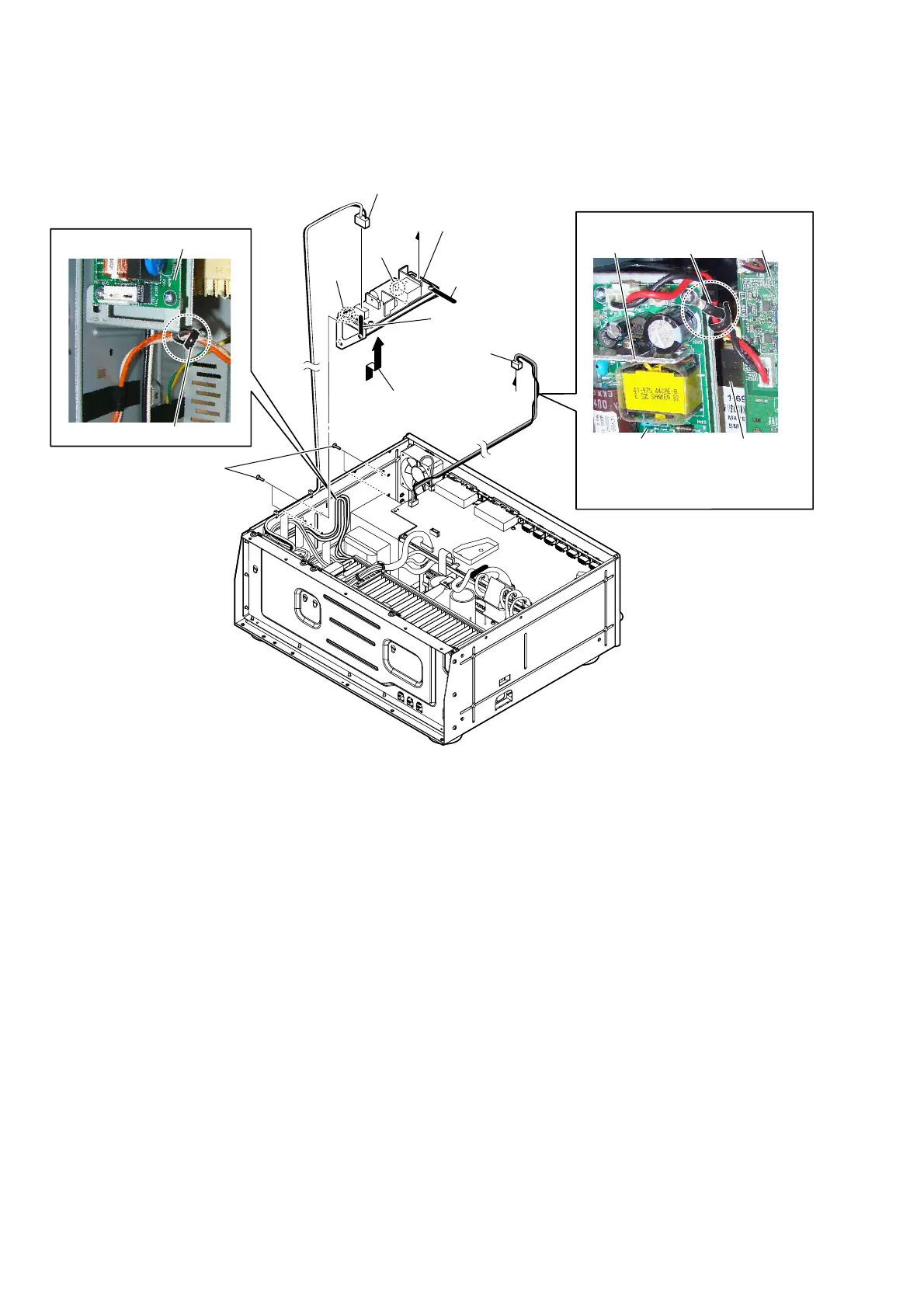

2-6. POWER UNIT BLOCK (ZA3000ES)
8 power unit block
7 hook
7 hook
:LUHVHWWLQJ
A
A
3
connector
(CN101)
2
connector
(CN601)
1 Remove the wire
from the clamp.
clamp
clamp
4 Remove the wire
from the clamp.
power unit
heat sink
power transformer
(T01)
power unit
DIGITAL board
6 Remove the power unit
block in the direction of
an arrow.
:LUHVHWWLQJ
5 four screws
(BVTP3 u 8)
Note:
The wire must not touch the heat sink
and the power transformer (T01).
