EXPLODED VIEWS
1 4-533-303-11 CASE
2 2-580-630-01 SCREW, +BVST 4X8
3 3-906-887-11 SCREW (+BTP) (DIA. 3) (BZN-N)
4 A-2042-014-A COVER (Z1/Z3) ASSY, FRONT (Front cover)
(Accessory) (ZA2000ES/ZA3000ES)
4 A-2057-333-A COVER (Z1000) ASSY, FRONT (Front cover)
(Accessory) (ZA1000ES)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color

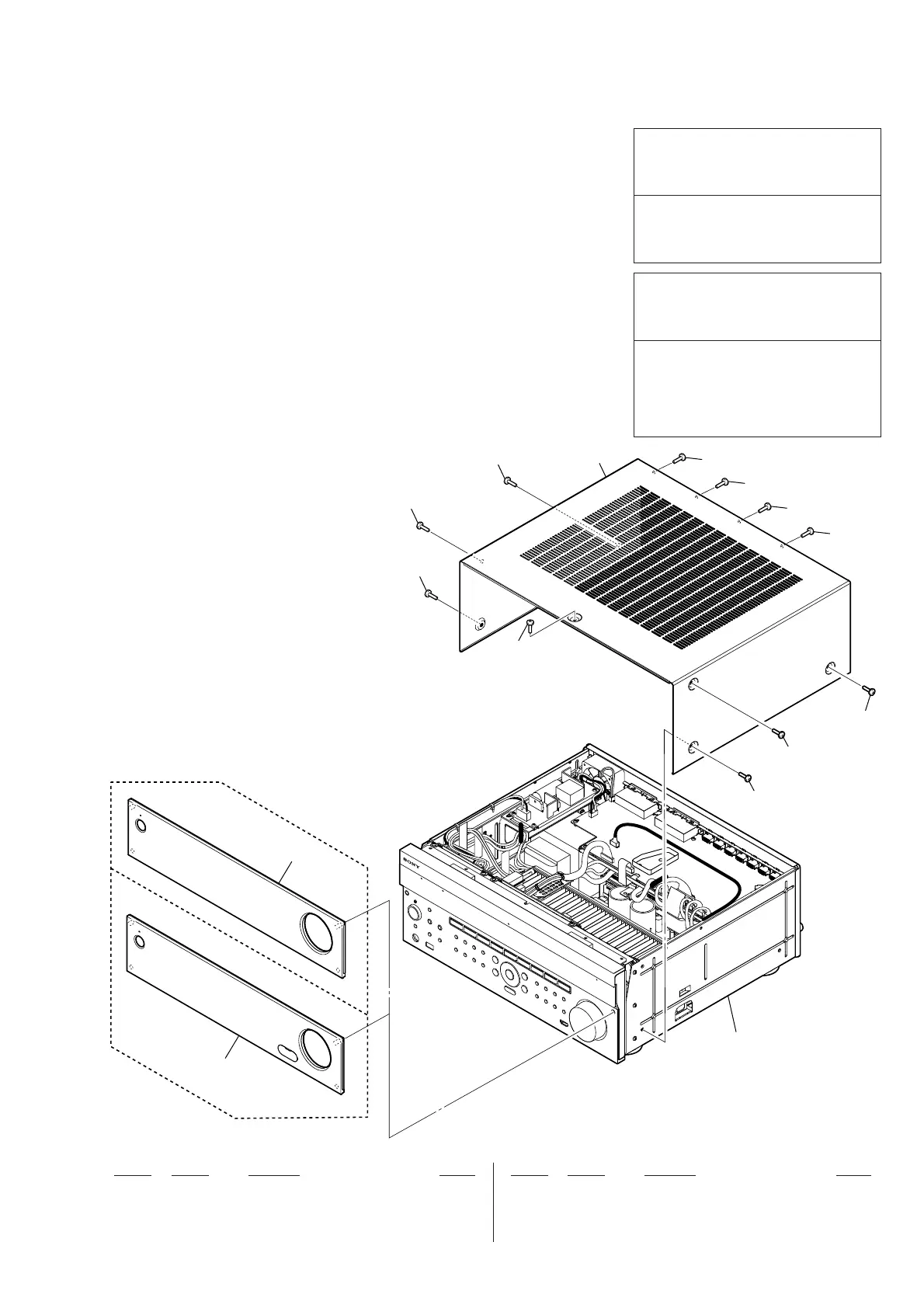

7-1. OVERALL SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
(ZA1000ES)
(ZA2000ES/
ZA3000ES)
power unit section
2
4
4
2
2
2
1
2
2
3
3
3
3
3
