Sony STR-ZA2000ES - A-VIDEO Board Block-2

STR-ZA1000ES/ZA2000ES/ZA3000ES
19

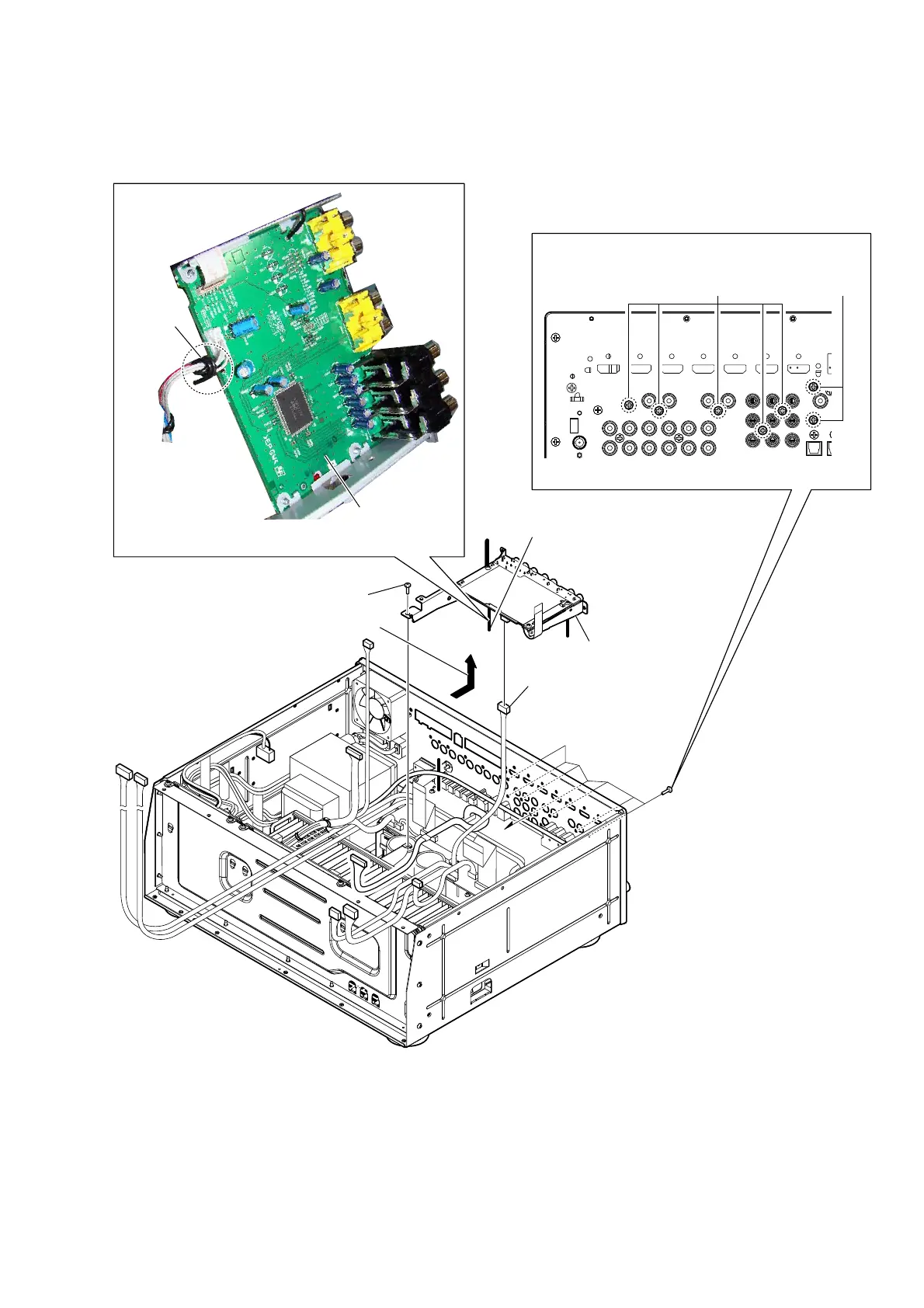

2-16. A-VIDEO BOARD BLOCK-2
– Rear view –
1 screw
(BVTP3 u 8)
4
connector
(CN6507)
5
A-VIDEO board block
2 Remove the DIGITAL board block
in the direction of an arrow.
3 Remove the wire
from the lead pin.
:LUHVHWWLQJ
lead pin
A-VIDEO board
– $9,'(2ERDUGEORFNERWWRPview –
1 five screws
(BVTP3 u 8)
1 two screws
(BVTP3 u 8)
