Sony STR-ZA2000ES - A-VIDEO Board

STR-ZA1000ES/ZA2000ES/ZA3000ES
20

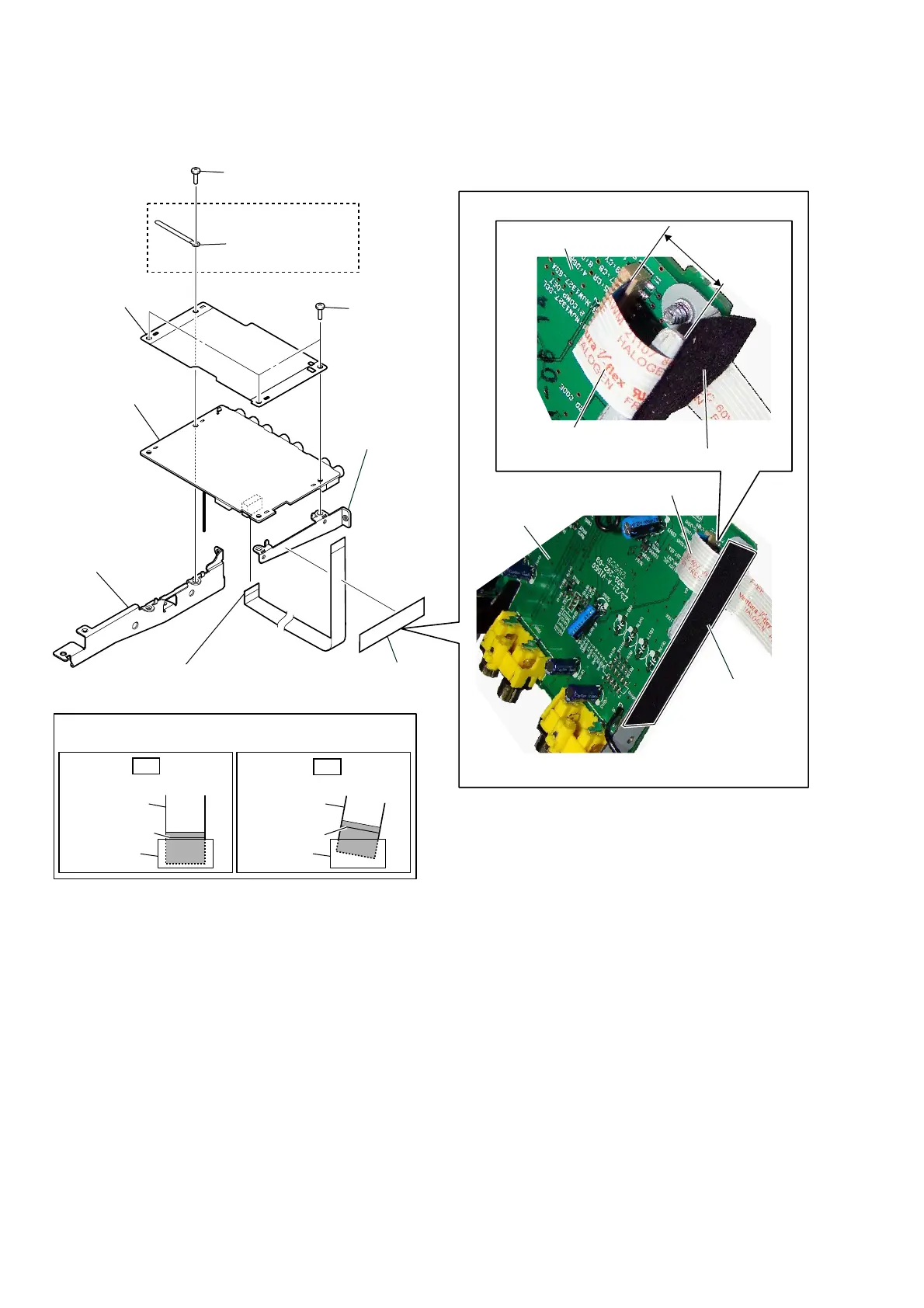

2-17. A-VIDEO BOARD
3
three screws
(BVTP3
u
8)
8
A-VIDEO board
4
clamp
:LUHVHWWLQJ
saranet cushion
(LXWXT)
saranet cushion (LXWXT)
A-VIDEO board
A-VIDEO board
7
bracket (3F-L)
6
bracket (3F-R)
5
shild plate
(3F A-VIDEO)
(ZA1000ES/ZA2000ES)
3
screw
(BVTP3
u
8)
30 mm
2 wire (flat type) (11 core) (FFC4)
(CN6508)
wire (flat type) (11 core) (FFC4)
wire (flat type) (11 core) (FFC4)
1 saranet cushion
(LXWXT)
colored line
Insert straight into the interior.
wire (flat type)
connector
OK
colored line
Insert at a slant.
wire (flat type)
connector
NG
Note:
When installing the wire (flat type), ensure that the colored line
is parallel to the connector after insertion.
–A9,'EOERDUGEORFNERWWRPYLHZ–
