Sony STR-ZA2000ES - Tuner Assy (TU1)

STR-ZA1000ES/ZA2000ES/ZA3000ES
24

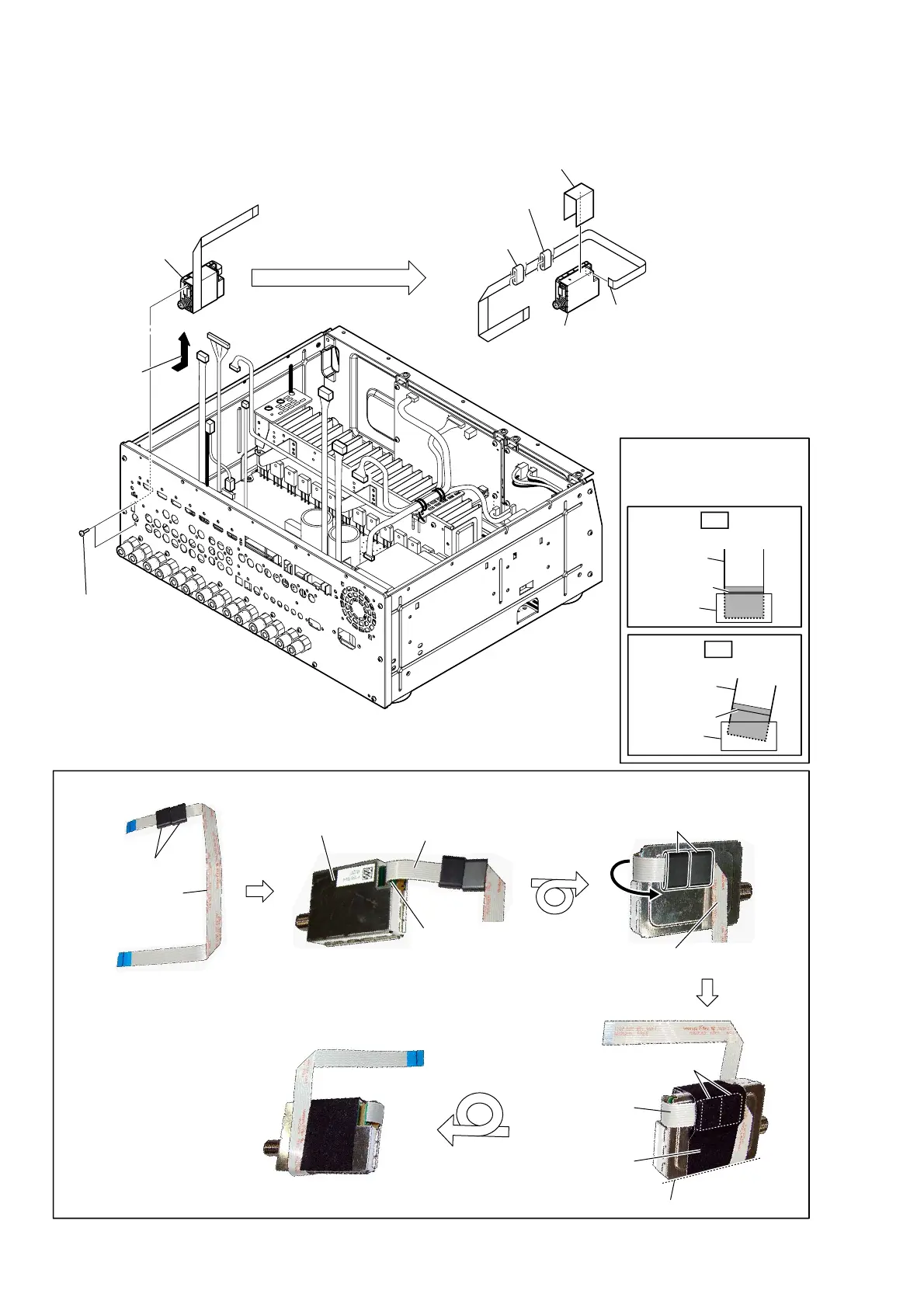

2-21. TUNER ASSY (TU1)
3
tuner block
starting guideline
saranet cushion
two ferrite cores
flexible flat cable
(FFC 9P (250))
(FFC1)
)OH[LEOHIODWFDEOH))&3))&VHWWLQJ
1
two screws
(BVTP3
u
8)
–5HDUYLHZ–
2 Remove the
tuner block in
the direction
of an arrow.
5
flexible flat cable
(FFC 9P (250))
(FFC1)
flexible flat cable
(FFC 9P (250))
(FFC1)
flexible flat cable
(FFC 9P (250))
(FFC1)
flexible flat cable
(FFC 9P (250))
(FFC1)
4
saranet cushion
two ferrite cores
Set two ferrite cores.
8
tuner assy
(TU1)
tuner assy
(TU1)
6
ferrite core
(FC1)
7
ferrite core (FC2)
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note:
When installing the flexible
flat cable, ensure that the
colored line is parallel to the
connector after insertion.
terminal side
